WINDOWS

Go to Split View

WINDOWS

in cart
Go to Split View

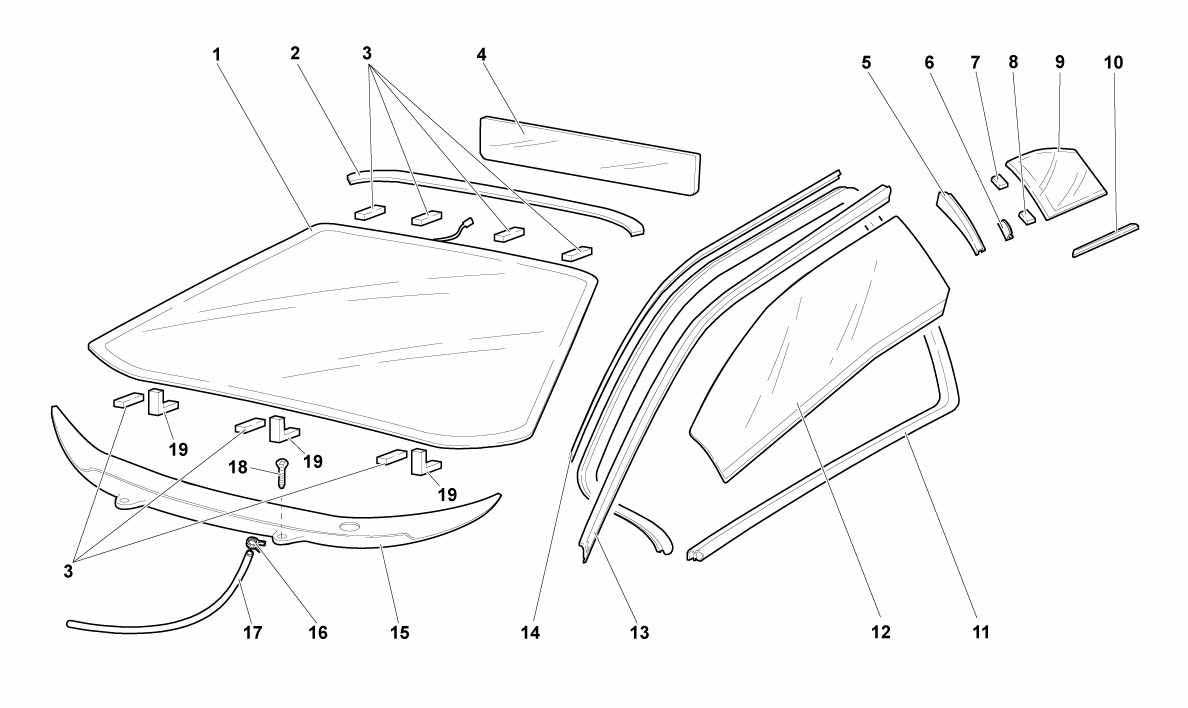

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 418845011 *Qty: 1 WINDSCREEN $11,231.38
Location: 2 Prev | Next Part: 418845121 *Qty: 1 WINDSHIELD UPPER GASKET $20.86
Location: 3 Prev | Next Part: 410845235 *Qty: 8 SPACER $22.40
Location: 3 Prev | Next Part: 410845235 *Qty: 8 WINDSHIELD SPACER $22.40
Location: 4 Prev | Next Part: 70015113 *Qty: 1 REAR WINDOW $892.38
Location: 5 Prev | Next Part: 418845146 *Qty: 1 RH MOLDING $413.24
Location: 5 Prev | Next Part: 418845145 *Qty: 1 LH MOLDING $413.24
Location: 6 Prev | Next Part: 418845421 *Qty: 2 BRACKET $48.30
Location: 7 Prev | Next Part: 400845633 *Qty: 2 QUARTER WINDOW GLASS SHIM $11.50
Location: 8 Prev | Next Part: 410845626 *Qty: 2 SPACER $8.08
Location: 10 Prev | Next Part: 418845149 *Qty: 1 LH MOLDING $266.15
Location: 10 Prev | Next Part: 418845150 *Qty: 1 RH MOLDING $266.15
Location: 11 Prev | Next Part: 418837500 *Qty: 2 DOOR COMPARTMENT CHANNEL RACE $263.69
Location: 12 Prev | Next Part: 72015109 *Qty: 1 LEFT DOOR WINDOW $1,848.52
Location: 12 Prev | Next Part: 72015110 *Qty: 1 RIGHT DOOR WINDOW $1,848.52
Location: 13 Prev | Next Part: 418837745 *Qty: 1 LH DOOR UPPER GASKET $458.41
Location: 13 Prev | Next Part: 418837744 *Qty: 1 RH DOOR UPPER GASKET $458.41
Location: 14 Prev | Next Part: 418837629 *Qty: 1 DOOR ANTI-WHISTLE LEFT FRAME $1,006.66
Location: 14 Prev | Next Part: 418837630 *Qty: 1 DOOR ANTI-WHISTLE RIGHT FRAME $291.94
Location: 15 Prev | Next Part: 418806609 *Qty: 1 COVER $1,015.21
Location: 16 Prev | Next Part: 8830128 *Qty: 1 CLAMP $0.90
Location: 17 Prev | Next Part: 410805267 *Qty: 1 PIPE $11.93
Location: 18 Prev | Next Part: WHT001190 *Qty: 2 SCREW M5 $1.43

* Quantity shown indicates the number of pieces used in the diagram.
