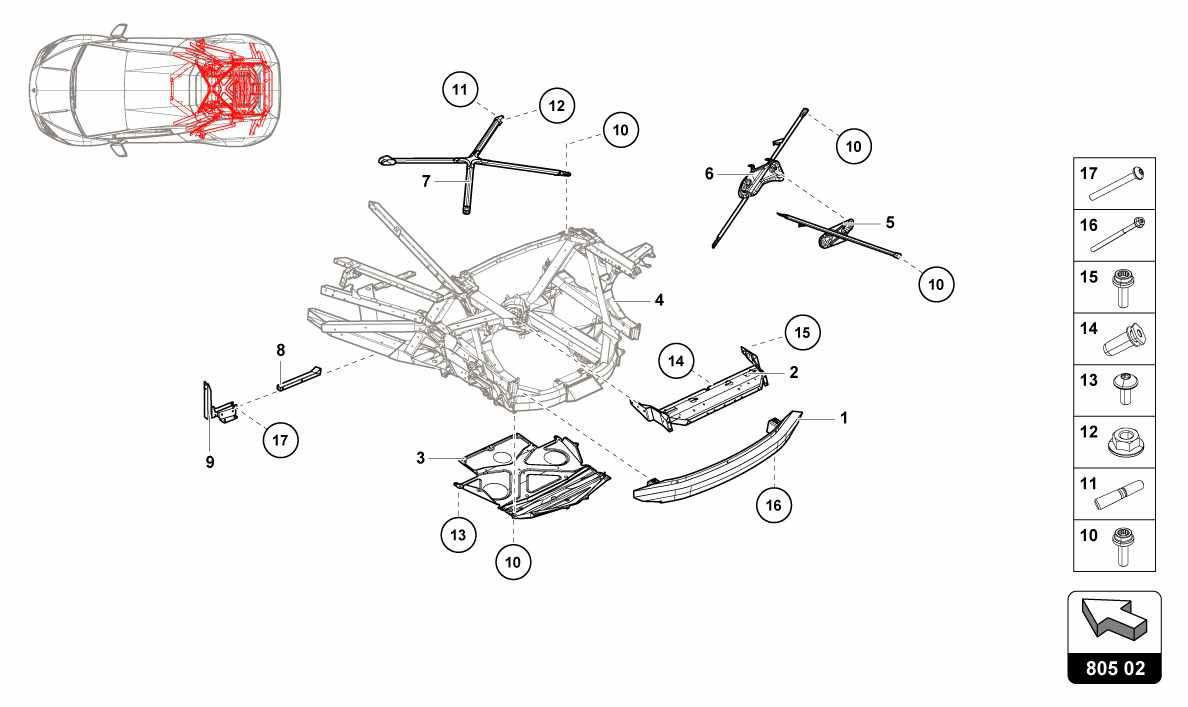

FRONT FRAME OUTER ELEMENTS

Go to Split View

FRONT FRAME OUTER ELEMENTS

Location Part # Quantity* Description Price Add To Cart
1 4T0807313B 1 CROSS MEMBER (SPECIAL ORDER ONLY) Unavailable
2 4T8813335B 1 CROSS MEMBER (SPECIAL ORDER ONLY) Unavailable
3 4S0825203B 1 COVER (SPECIAL ORDER ONLY) Unavailable
4 1 REAR END ASSEMBLY (SPECIAL ORDER ONLY) Unavailable
5 4S0813905B 1 TIE ROD (SPECIAL ORDER ONLY) Unavailable
6 4S0813906B 1 TIE ROD (SPECIAL ORDER ONLY) Unavailable
7 4T8814587C 1 X FRAME (SPECIAL ORDER ONLY) Unavailable
8 4T0801781B 1 LH BRACKET (SPECIAL ORDER ONLY) Unavailable
8 4T0801782B 1 RH BRACKET (SPECIAL ORDER ONLY) Unavailable
9 4T0814541B 1 LH SUPPORT (SPECIAL ORDER ONLY) Unavailable
9 4T0814542B 1 RH SUPPORT (SPECIAL ORDER ONLY) Unavailable
10 N91128001 6 SCREW (M8X40) Unavailable
11 N91145002 2 SCREW (M8) Unavailable
12 N90798805 2 NUT (M8) Unavailable
13 N91042302 13 SCREW (M6X16) Unavailable
14 8H0806221 4 COMPENSATING PIECE FOR HEADLAMS Unavailable
15 N91176701 4 SCREW (M8X22) Unavailable
16 N10714501 2 SCREW (M8X90) Unavailable
17 N91097301 4 SCREW (M6X45) Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
