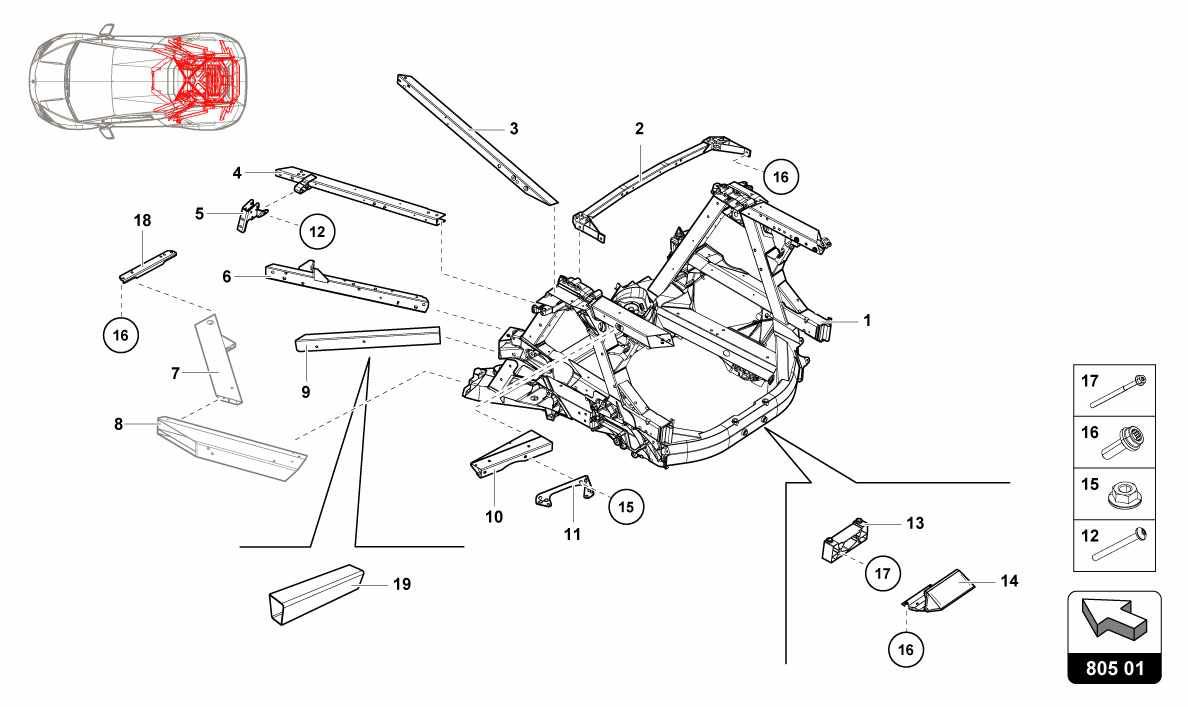

FRONT FRAME INNER ELEMENTS

Go to Split View

FRONT FRAME INNER ELEMENTS

Location Part # Quantity* Description Price Add To Cart
1 4T8813031K 1 REAR END ASSEMBLY (SPECIAL ORDER ONLY) Unavailable
2 4S0813441C 2 DIAGONAL CROSS MEMBER (SPECIAL ORDER ONLY) Unavailable
3 4T8817361C 1 LH TIE ROD (SPECIAL ORDER ONLY) Unavailable
3 4T8817362C 1 RH TIE ROD (SPECIAL ORDER ONLY) Unavailable
4 4T8810243D 1 LH TIE ROD (SPECIAL ORDER ONLY) Unavailable
4 4T8810244E 1 RH TIE ROD (SPECIAL ORDER ONLY) Unavailable
5 4T0813499B 1 LH BRACKET Unavailable
5 4T0813500B 1 RH BRACKET Unavailable
6 4T8814201E 1 LH TIE ROD (SPECIAL ORDER ONLY) Unavailable
6 4T8814202D 1 RH TIE ROD (SPECIAL ORDER ONLY) Unavailable
7 0 CROSS MEMBER (CANNOT BE SOLD SEPARATELY) Unavailable
8 0 CROSS MEMBER (CANNOT BE SOLD SEPARATELY) Unavailable
9 4S0813253H 1 LH TIE ROD (SPECIAL ORDER ONLY) Unavailable
9 4S0813254H 1 RH TIE ROD (SPECIAL ORDER ONLY) Unavailable
10 4T0810251B 1 RH BRACKET Unavailable
10 4T0810252B 1 LH BRACKET Unavailable
11 4T0810439B 1 RH BRACKET Unavailable
11 4T0810440B 1 LH BRACKET Unavailable
12 N91097301 0 SCREW (M6X45) Unavailable
13 4S0813857B 1 SUPPORT ANTICRASH (SPECIAL ORDER ONLY) Unavailable
14 4T0813483B 1 ADAPTER (SPECIAL ORDER ONLY) Unavailable
15 N01508210 4 NUT (M6) Unavailable
16 N91128001 6 SCREW (VITE M8X25) Unavailable
17 N10683301 2 SCREW (M10X115) Unavailable
18 4S0813239C 1 CROSS MEMBER (SPECIAL ORDER ONLY) Unavailable
19 4S0813945K 2 REPAIR COMPONENT (TO BE USED FOR REF. 9 - SPECIAL ORDER ONLY) Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
