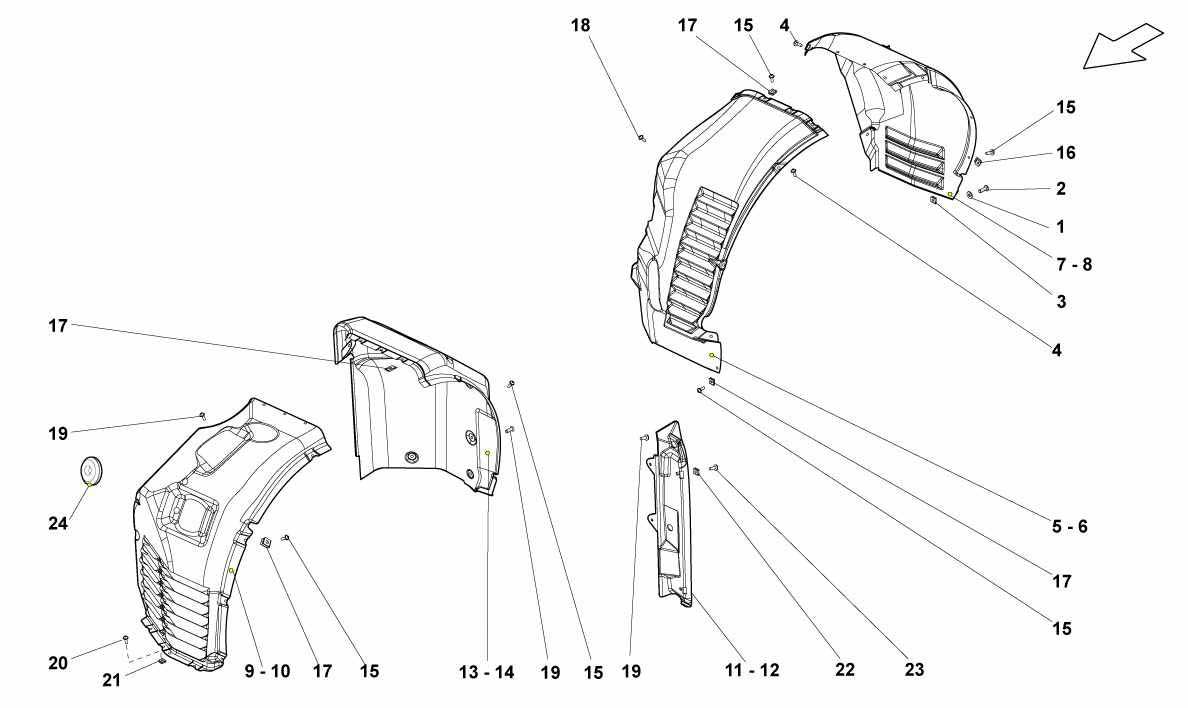

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: WHT000778 *Qty: 8 WASHER $0.90
Location: 2 Prev | Next Part: N90455204 *Qty: 4 SCREW $0.90
Location: 3 Prev | Next Part: N90526602 *Qty: 4 CLIP $0.90
Location: 4 Prev | Next Part: N90944603 *Qty: 10 SCREW $0.90
Location: 5 Prev | Next Part: 400810981A *Qty: 1 REAR LH WHEELHOUSE APRON- CENTER PORTION $686.99
Location: 6 Prev | Next Part: 400810982A *Qty: 1 REAR RH WHEELHOUSE APRON- CENTER PORTION $687.06
Location: 7 Prev | Next Part: 400810985 *Qty: 1 REAR LH WHEELHOUSE APRON- REAR PORTION $1,501.49
Location: 8 Prev | Next Part: 400810986 *Qty: 1 REAR RH WHEELHOUSE APRON- REAR PORTION $1,501.49
Location: 9 Prev | Next Part: 400821171A *Qty: 1 FRONT LH WHEELHOUSE APRON- FRONT PORTION $652.26
Location: 10 Prev | Next Part: 400821172B *Qty: 1 FRONT RH WHEELHOUSE APRON- FRONT PORTION Call
Location: 11 Prev | Next Part: 400821179A *Qty: 1 LINER- REAR LH Call
Location: 12 Prev | Next Part: 400821180A *Qty: 1 LINER- REAR RH $36.29
Location: 13 Prev | Next Part: 400821191A *Qty: 1 FRONT LH WHEELHOUSE APRON- REAR PORTION $118.59
Location: 14 Prev | Next Part: 400821192A *Qty: 1 FRONT RH WHEELHOUSE APRON- REAR PORTION $118.73
Location: 15 Prev | Next Part: N90698602 *Qty: 12 SCREW $0.90
Location: 16 Prev | Next Part: N0154487 *Qty: 6 CLIP $0.90
Location: 17 Prev | Next Part: N90170802 *Qty: 8 CLIP $0.90
Location: 18 Prev | Next Part: N90944603 *Qty: 6 SCREW $0.90
Location: 19 Prev | Next Part: N90807401 *Qty: 12 SCREW $0.90
Location: 20 Prev | Next Part: N90900401 *Qty: 8 SCREW $0.90
Location: 21 Prev | Next Part: N90327501 *Qty: 8 CLIP $0.90
Location: 22 Prev | Next Part: N90327501 *Qty: 4 CLIP $0.90
Location: 23 Prev | Next Part: WHT000757 *Qty: 4 SCREW $3.43
Location: 24 Prev | Next Part: 400821189 *Qty: 4 FAIRLEAD $1.83

* Quantity shown indicates the number of pieces used in the diagram.
