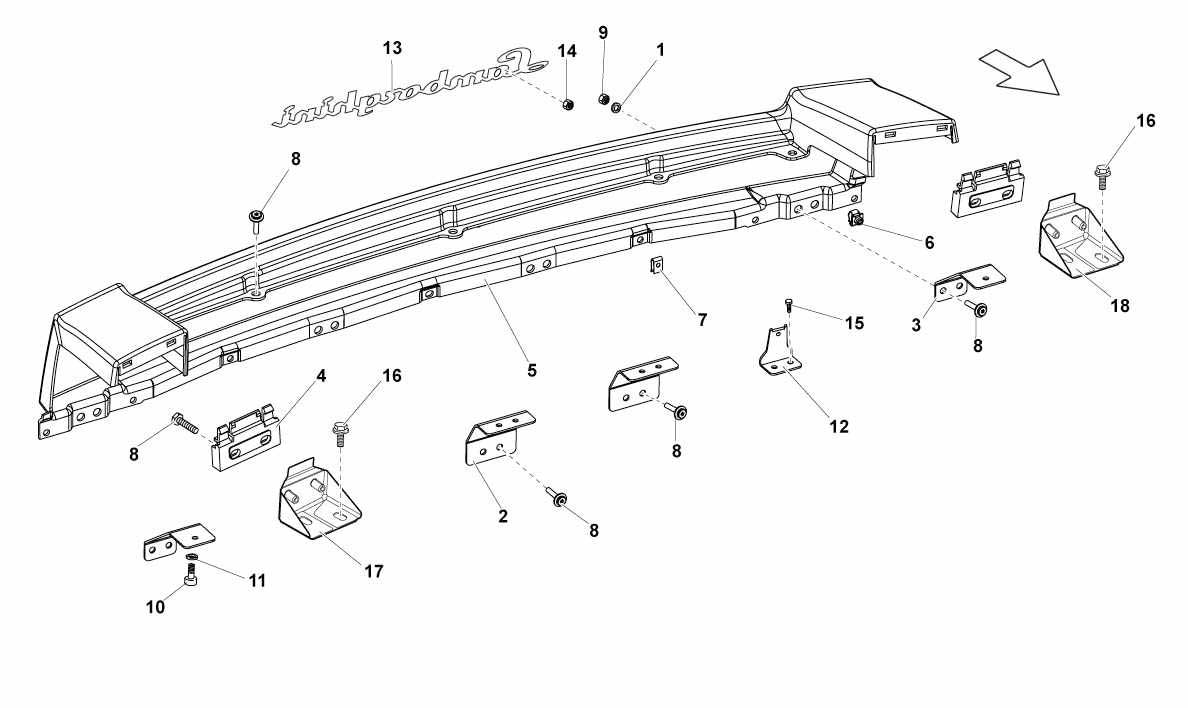

REAR END PANEL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: WHT000778 *Qty: 12 WASHER $0.90
Location: 2 Prev | Next Part: 400864185 *Qty: 2 FIXING BRACKET- INNER $6.80
Location: 3 Prev | Next Part: 400864186 *Qty: 2 FIXING BRACKET- OUTER $5.41
Location: 4 Prev | Next Part: 407864455 *Qty: 2 CLIP $97.24
Location: 5 Prev | Next Part: 407864487 *Qty: 1 ORNAMENT- REAR $769.88
Location: 6 Prev | Next Part: N90834301 *Qty: 7 CLIP $0.90
Location: 7 Prev | Next Part: N90526602 *Qty: 3 CLIP $0.90
Location: 8 Prev | Next Part: N90807401 *Qty: 8 SCREW M5X18.0 $0.90
Location: 9 Prev | Next Part: N0110022 *Qty: 2 NUT $1.19
Location: 10 Prev | Next Part: WHT001190 *Qty: 9 SCREW $1.43
Location: 11 Prev | Next Part: 66015399 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 400807125 *Qty: 6 BRACKET $61.76
Location: 13 Prev | Next Part: 400853742B *Qty: 1 REAR LAMBORGHINI DECORATION $207.26
Location: 14 Prev | Next Part: 400853139 *Qty: 2 CLIP $0.90
Location: 15 Prev | Next Part: N90365912 *Qty: 12 SCREW $0.90
Location: 16 Prev | Next Part: N90807405 *Qty: 4 SCREW $0.90
Location: 17 Prev | Next Part: 407813542B *Qty: 1 BRACKET $125.02
Location: 18 Prev | Next Part: 407813541B *Qty: 1 BRACKET $125.02

* Quantity shown indicates the number of pieces used in the diagram.
