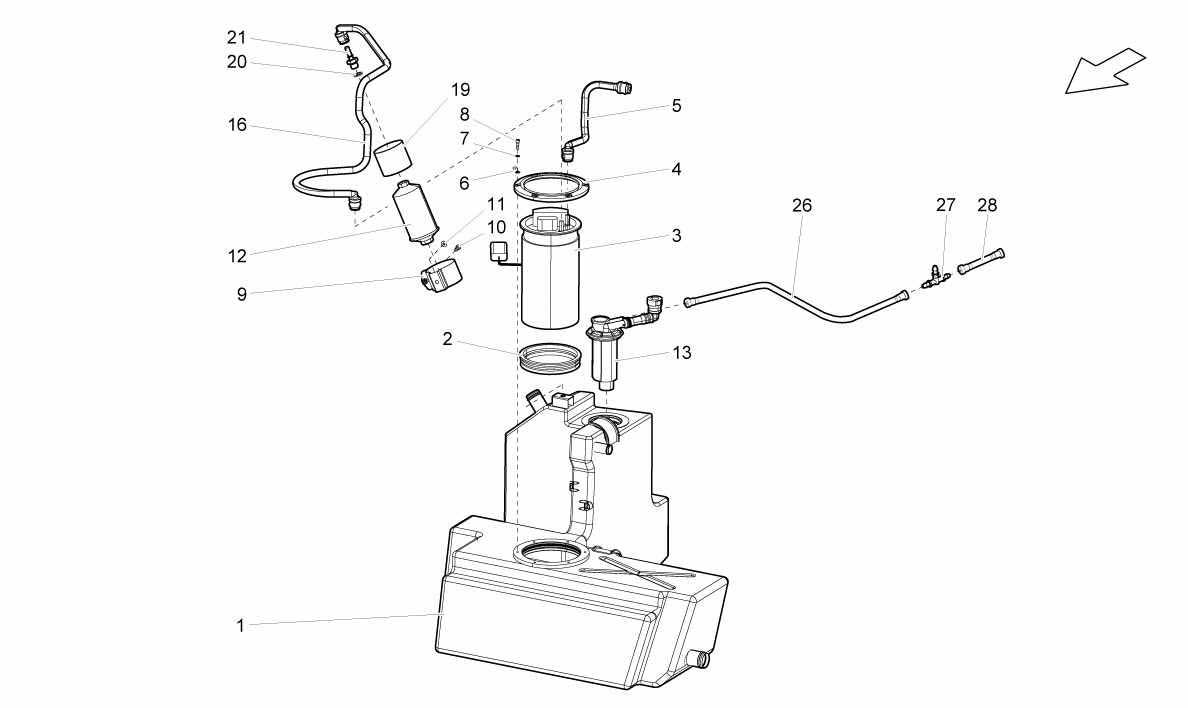

RH TANK

Go to Split View

RH TANK

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 407201076A *Qty: 1 RH TANK $3,545.06
Location: 2 Prev | Next Part: 1J0919133 *Qty: 1 GASKET $16.04
Location: 3 Prev | Next Part: 8L0919051H *Qty: 1 PUMP $578.73
Location: 4 Prev | Next Part: 400201099 *Qty: 1 FLANGE $85.29
Location: 5 Prev | Next Part: 407201216 *Qty: 1 RH PIPE $69.36
Location: 6 Prev | Next Part: 400201211 *Qty: 1 FASTON $2.41
Location: 7 Prev | Next Part: WHT001187 *Qty: 6 WASHER $0.90
Location: 8 Prev | Next Part: WHT001194 *Qty: 6 SCREW $0.90
Location: 9 Prev | Next Part: 400201255 *Qty: 1 BRACKET $9.59
Location: 10 Prev | Next Part: N10207001 *Qty: 1 SCREW $0.90
Location: 11 Prev | Next Part: N10017304 *Qty: 1 NUT $0.90
Location: 12 Prev | Next Part: 400201511A *Qty: 1 FUEL FILTER $109.21
Location: 13 Prev | Next Part: 407201521A *Qty: 1 FLOATING VALVE $1,095.20
Location: 16 Prev | Next Part: 407201214A *Qty: 1 RH PIPE $82.69
Location: 19 Prev | Next Part: 400201558A *Qty: 1 GASKET $4.53
Location: 20 Prev | Next Part: 400201349 *Qty: 1 WASHER $9.19
Location: 21 Prev | Next Part: 400201149 *Qty: 1 CONNECTOR $47.65
Location: 26 Prev | Next Part: 400201163A *Qty: 1 VENT PIPE $49.70
Location: 27 Prev | Next Part: 400201382 *Qty: 1 CONNECTOR $2.66
Location: 28 Prev | Next Part: 400201163B *Qty: 1 VENT PIPE $21.56

* Quantity shown indicates the number of pieces used in the diagram.
