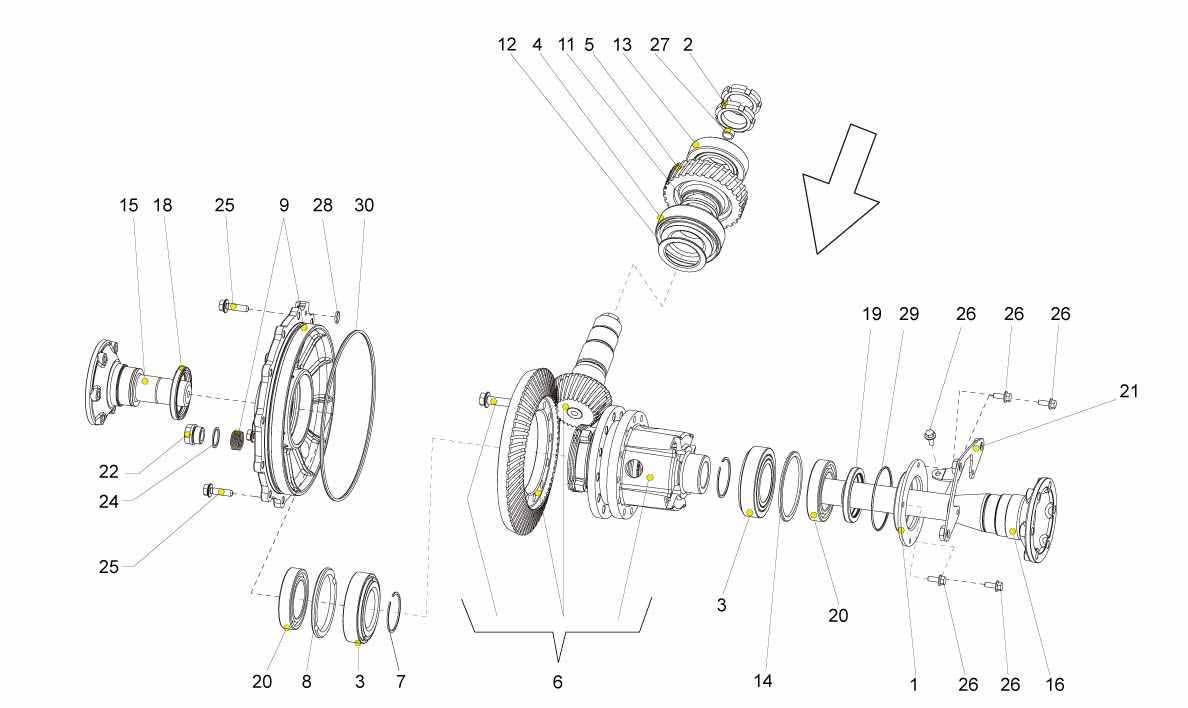

REAR DIFFERENTIAL

Go to Split View

REAR DIFFERENTIAL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86301184 *Qty: 1 RH CLUCH HOUSING COVER Unavailable
Location: 2 Prev | Next Part: 86307291 *Qty: 2 RING NUT Unavailable
Location: 3 Prev | Next Part: 86311124 *Qty: 2 BEARING Unavailable
Location: 4 Prev | Next Part: 86311211 *Qty: 1 BEARING Unavailable
Location: 5 Prev | Next Part: 86311347A *Qty: 1 GEAR Unavailable
Location: 6 Prev | Next Part: 86525021A *Qty: 1 DIFFERENTIAL + BEVEL GEAR PAIR Unavailable
Location: 7 Prev | Next Part: 86525125 *Qty: 2 SEAL RING Unavailable
Location: 8 Prev | Next Part: 86525126A *Qty: 1 RING 6.6 MM Unavailable
Location: 8 Prev | Next Part: 86525126B *Qty: 1 RING 6.4 MM Unavailable
Location: 8 Prev | Next Part: 86525126C *Qty: 1 RING 6.2 MM Unavailable
Location: 8 Prev | Next Part: 86525126F *Qty: 1 RING 5.5 MM Unavailable
Location: 8 Prev | Next Part: 86525126 *Qty: 1 RING 6.8 MM Unavailable
Location: 8 Prev | Next Part: 86525126D *Qty: 1 RING 6.0 MM Unavailable
Location: 8 Prev | Next Part: 86525126E *Qty: 1 RING 5.8 MM Unavailable
Location: 9 Prev | Next Part: 86525127 *Qty: 1 FLANGE Unavailable
Location: 11 Prev | Next Part: 86525231 *Qty: 1 4.00 mm ADJUSTMENT SHIM Unavailable
Location: 12 Prev | Next Part: 86525241 *Qty: 1 2.00 mm ADJUSTMENT SHIM Unavailable
Location: 13 Prev | Next Part: 86525251 *Qty: 1 BEARING Unavailable
Location: 14 Prev | Next Part: 86525271 *Qty: 1 RING mm. 3.30 Unavailable
Location: 14 Prev | Next Part: 86525271A *Qty: 1 RING mm. 2.95 Unavailable
Location: 14 Prev | Next Part: 86525271B *Qty: 1 RING mm. 2.80 Unavailable
Location: 14 Prev | Next Part: 86525271C *Qty: 1 RING mm. 2.60 Unavailable
Location: 15 Prev | Next Part: 86525356A *Qty: 1 MAIN SHAFT Unavailable
Location: 16 Prev | Next Part: 86525357A *Qty: 1 MAIN SHAFT Unavailable
Location: 18 Prev | Next Part: 86525596 *Qty: 1 SEAL RING Unavailable
Location: 19 Prev | Next Part: 86525597 *Qty: 1 SEAL RING Unavailable
Location: 20 Prev | Next Part: 86525777A *Qty: 2 BEARING Unavailable
Location: 21 Prev | Next Part: 400501721A *Qty: 1 BRACKET Unavailable
Location: 22 Prev | Next Part: 86301114 *Qty: 1 OIL LEVEL CAP Unavailable
Location: 24 Prev | Next Part: N0138271 *Qty: 1 GASKET Unavailable
Location: 25 Prev | Next Part: N10128106 *Qty: 12 SCREW Unavailable
Location: 26 Prev | Next Part: N10338901 *Qty: 5 SCREW Unavailable
Location: 27 Prev | Next Part: 86311357 *Qty: 1 BUSHING Unavailable
Location: 28 Prev | Next Part: WHT001492 *Qty: 5 O-RING Unavailable
Location: 29 Prev | Next Part: N91029001 *Qty: 1 O-RING Unavailable
Location: 30 Prev | Next Part: N91029101 *Qty: 1 O-RING Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
