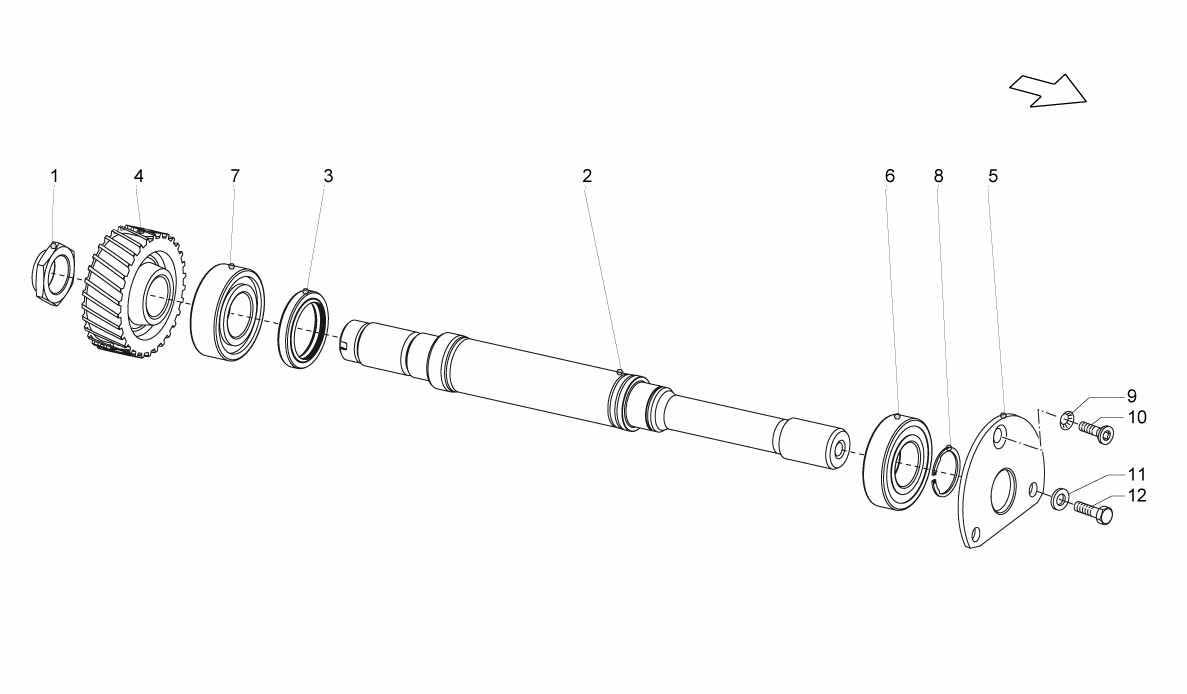

DISMISSAL SHAFT

Go to Split View

DISMISSAL SHAFT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86307303 *Qty: 1 RING NUT $75.03
Location: 2 Prev | Next Part: 86311106 *Qty: 1 MAIN SHAFT $453.68
Location: 3 Prev | Next Part: 86311113 *Qty: 1 SEAL RING $31.13
Location: 4 Prev | Next Part: 86311345A *Qty: 1 GEAR $287.23
Location: 6 Prev | Next Part: 86311133A *Qty: 1 BEARING $41.38
Location: 7 Prev | Next Part: 86311372A *Qty: 1 BEARING $236.42
Location: 8 Prev | Next Part: 86311317 *Qty: 1 RING $4.29
Location: 9 Prev | Next Part: 86311276 *Qty: 1 WASHER ( FOR 086525283A) $0.90
Location: 10 Prev | Next Part: N90744801 *Qty: 1 SCREW ( FOR 086525283A) $0.90
Location: 11 Prev | Next Part: N0115581 *Qty: 2 WASHER ( FOR 086525283A) $0.90
Location: 12 Prev | Next Part: N10545401 *Qty: 2 SCREW ( FOR 086525283A) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
