OIL PUMP

Go to Split View

OIL PUMP

in cart
Go to Split View

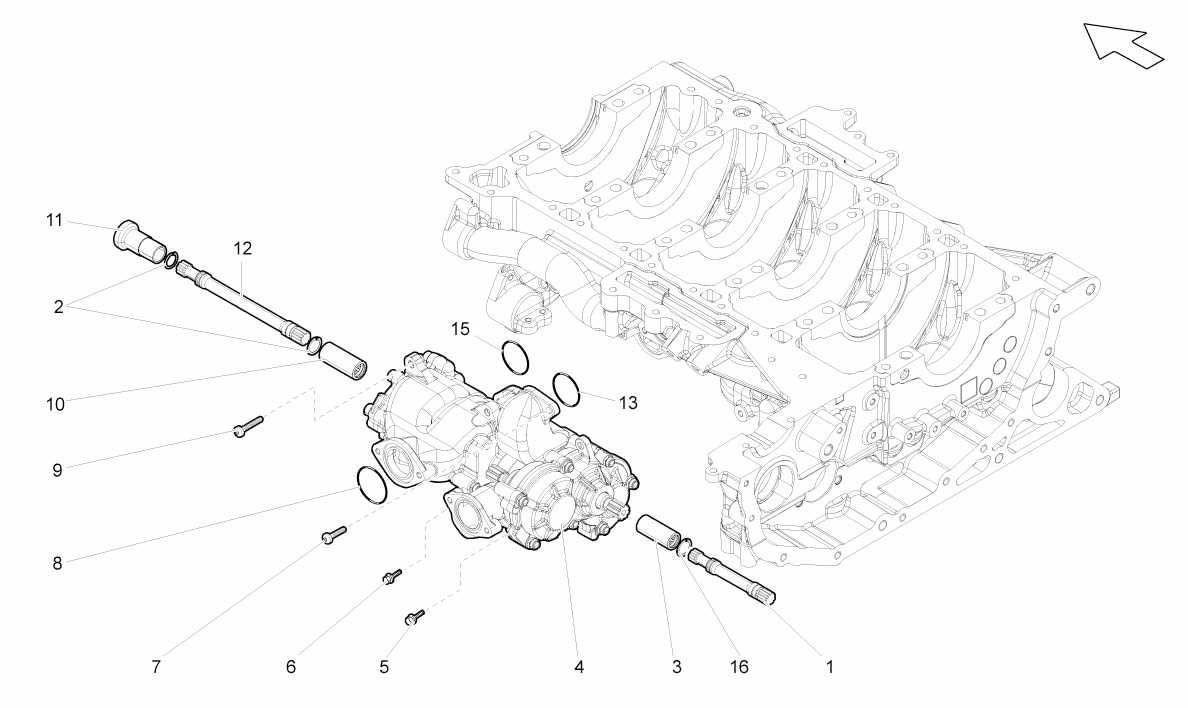

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L115120H *Qty: 1 SHAFT $134.27
Location: 2 Prev | Next Part: N90502501 *Qty: 2 RETAINER RING $0.90
Location: 3 Prev | Next Part: 7L115138D *Qty: 1 SLEEVE $69.46
Location: 4 Prev | Next Part: 7L115103L *Qty: 1 OIL PUMP $4,527.85
Location: 5 Prev | Next Part: N10434903 *Qty: 1 SCREW M6X20 $0.90
Location: 6 Prev | Next Part: N90440702 *Qty: 2 SCREW M6X15 $0.90
Location: 7 Prev | Next Part: N10196102 *Qty: 3 SCREW M6X18 $0.90
Location: 8 Prev | Next Part: N90903702 *Qty: 1 O-RING $2.60
Location: 9 Prev | Next Part: N90440702 *Qty: 2 SCREW M6X15 $0.90
Location: 10 Prev | Next Part: 7L115138B *Qty: 1 SLEEVE $103.72
Location: 11 Prev | Next Part: 7L115138C *Qty: 1 SLEEVE $148.17
Location: 12 Prev | Next Part: 7L115120B *Qty: 1 SHAFT $192.15
Location: 13 Prev | Next Part: N91014901 *Qty: 1 O-RING $2.37
Location: 15 Prev | Next Part: N90812402 *Qty: 1 O-RING $1.97
Location: 16 Prev | Next Part: N0124141 *Qty: 1 RETAINER RING $0.90

* Quantity shown indicates the number of pieces used in the diagram.
