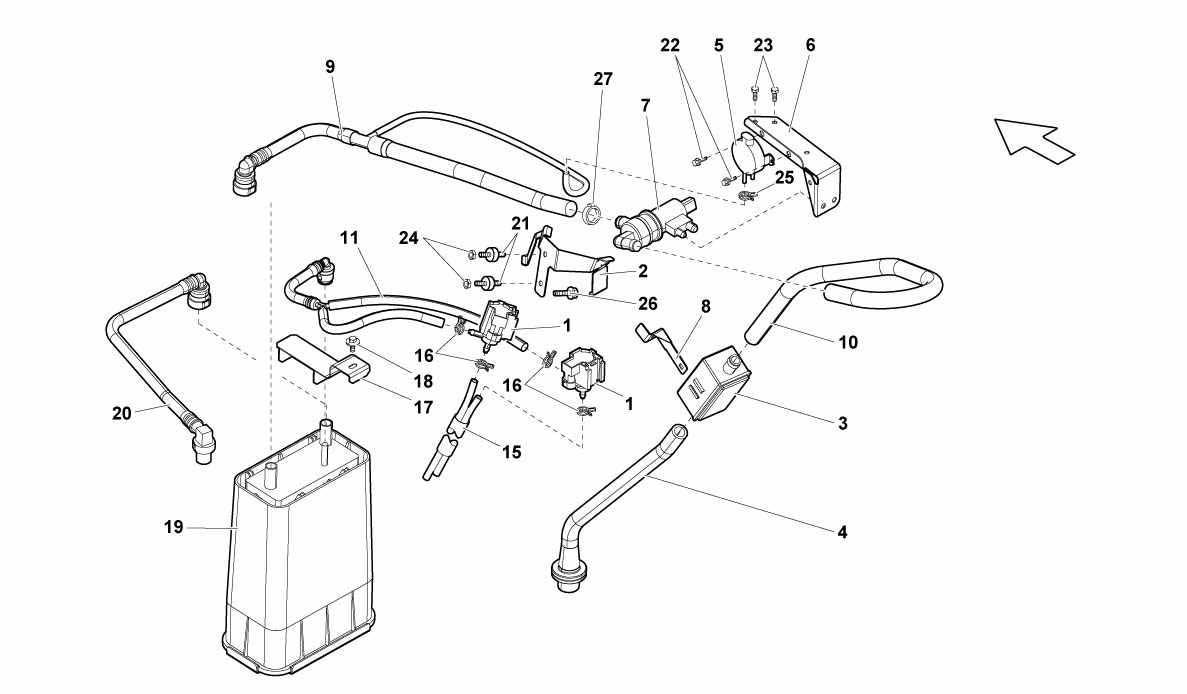

FUEL SYSTEM

Go to Split View

FUEL SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400906283 *Qty: 2 SOLENOID VALVE $66.91
Location: 2 Prev | Next Part: 407906303 *Qty: 1 SUPPORT $24.24
Location: 3 Prev | Next Part: 400131575 *Qty: 1 FILTER $10.90
Location: 4 Prev | Next Part: 407133785A *Qty: 1 PIPE $129.30
Location: 5 Prev | Next Part: 400906206A *Qty: 1 SENSOR $773.36
Location: 6 Prev | Next Part: 407201181B *Qty: 1 BRACKET $29.82
Location: 7 Prev | Next Part: 400906252 *Qty: 1 VALVE ASSEMBLY $28.20
Location: 8 Prev | Next Part: 407906469 *Qty: 1 BRACKET $18.07
Location: 9 Prev | Next Part: 407133739 *Qty: 1 PIPE ASSEMBLY $160.41
Location: 10 Prev | Next Part: 407131179 *Qty: 1 PIPE $38.72
Location: 11 Prev | Next Part: 407133366 *Qty: 1 PIPE $80.85
Location: 12 Prev | Next Part: 407201163 *Qty: 1 VENT PIPE $27.86
Location: 13 Prev | Next Part: 400201382 *Qty: 1 CONNECTOR $2.33
Location: 14 Prev | Next Part: 400201163B *Qty: 1 VENT PIPE $18.76
Location: 15 Prev | Next Part: 407133240A *Qty: 1 PIPE ASSEMBLY $179.56
Location: 16 Prev | Next Part: 400251189E *Qty: 4 CLAMP $5.69
Location: 17 Prev | Next Part: 407201898 *Qty: 1 BRACKET $77.21
Location: 18 Prev | Next Part: N90440706 *Qty: 1 SCREW $0.90
Location: 19 Prev | Next Part: 400133563 *Qty: 1 VAPOR FILTER $375.16
Location: 20 Prev | Next Part: 407201166 *Qty: 1 PIPE ASSEMBLY $68.00
Location: 21 Prev | Next Part: 400972081C *Qty: 2 PUFFER $12.60
Location: 22 Prev | Next Part: N0902612 *Qty: 2 SCREW $0.90
Location: 23 Prev | Next Part: N90847901 *Qty: 2 SCREW $0.90
Location: 24 Prev | Next Part: N0150825 *Qty: 2 NUT $0.90
Location: 25 Prev | Next Part: 400251189E *Qty: 1 CLAMP $5.69
Location: 26 Prev | Next Part: *Qty: 2 SCREW M6X15 (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 27 Prev | Next Part: 400251189D *Qty: 1 CLAMP $7.35

* Quantity shown indicates the number of pieces used in the diagram.
