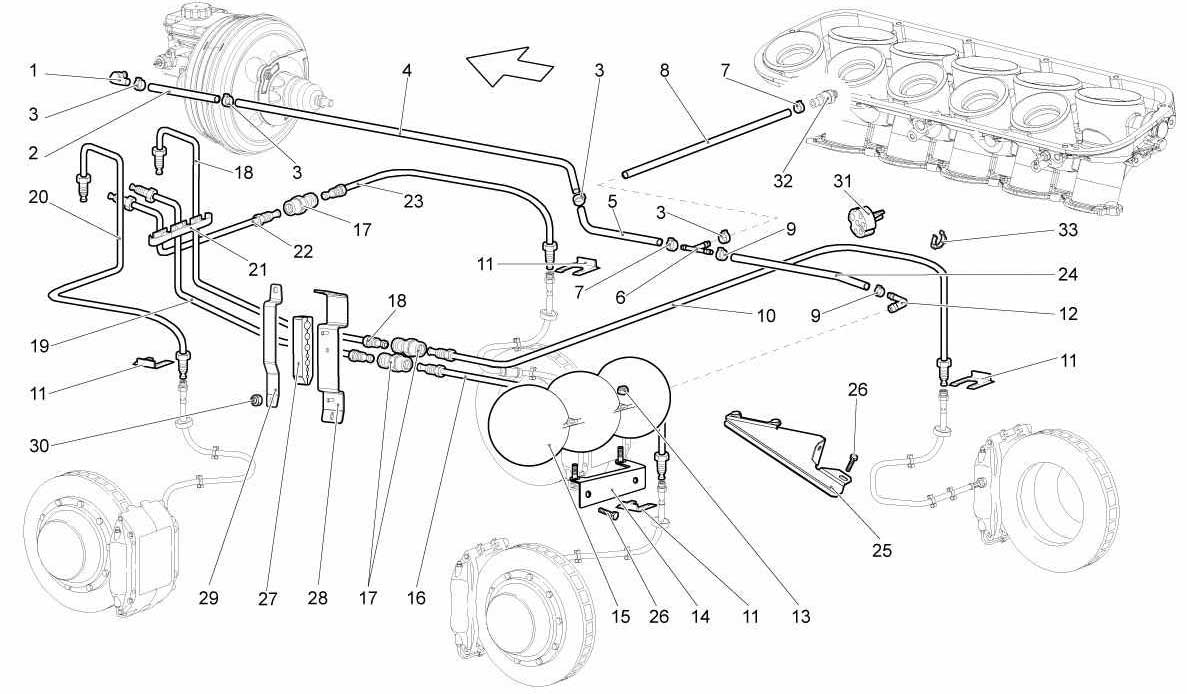

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400616807 *Qty: 1 CHECK VALVE (UNTIL THE VIN 6LA3976) $18.62
Location: 2 Prev | Next Part: 401611971A *Qty: 1 HOSE (UNTIL THE VIN 6LA3976) $56.05
Location: 3 Prev | Next Part: N10201901 *Qty: 4 CLAMP (UNTIL THE VIN 6LA3976) $1.35
Location: 4 Prev | Next Part: 400611936 *Qty: 1 PIPE (UNTIL THE VIN 6LA3976) $27.94
Location: 5 Prev | Next Part: 400611940A *Qty: 1 HOSE (UNTIL THE VIN 6LA3976) $80.62
Location: 6 Prev | Next Part: 400611921 *Qty: 1 CONNECTOR (UNTIL THE VIN 6LA3976) $1.39
Location: 7 Prev | Next Part: N0245097 *Qty: 2 CLAMP (UNTIL THE VIN 6LA3976) $12.38
Location: 8 Prev | Next Part: 400611937A *Qty: 1 HOSE (UNTIL THE VIN 6LA3976) $78.47
Location: 9 Prev | Next Part: 400251189E *Qty: 2 CLAMP (UNTIL THE VIN 6LA3976) $5.69
Location: 10 Prev | Next Part: 400611742 *Qty: 1 RH PIPE (UNTIL THE VIN 6LA3976) $62.21
Location: 11 Prev | Next Part: 400611949 *Qty: 7 PLATE (UNTIL THE VIN 6LA3976) $20.04
Location: 12 Prev | Next Part: 400612173 *Qty: 1 CONNECTOR (UNTIL THE VIN 6LA3976) $0.95
Location: 13 Prev | Next Part: N10017303 *Qty: 2 NUT (UNTIL THE VIN 6LA3976) $0.90
Location: 14 Prev | Next Part: *Qty: 0 BRACKET (VALID FOR A DIFFERENT MODEL) Call
Location: 15 Prev | Next Part: 443131541 *Qty: 1 VACUUM TANK ASSEMBLY (UNTIL THE VIN 6LA3976) $23.48
Location: 16 Prev | Next Part: 400611741 *Qty: 1 LH PIPE (UNTIL THE VIN 6LA3976) $53.86
Location: 17 Prev | Next Part: 400611809 *Qty: 3 CONNECTOR (UNTIL THE VIN 6LA3976) $28.97
Location: 18 Prev | Next Part: 401611764 *Qty: 1 RH REAR PIPE (UNTIL THE VIN 6LA3976) $31.26
Location: 19 Prev | Next Part: 401611763 *Qty: 1 LH PIPE (UNTIL THE VIN 6LA3976) $30.59
Location: 20 Prev | Next Part: 401611761 *Qty: 1 LH PIPE (UNTIL THE VIN 6LA3976) $23.66
Location: 21 Prev | Next Part: 8Z0611797C *Qty: 1 CLAMP (UNTIL THE VIN 6LA3976) $1.24
Location: 22 Prev | Next Part: 401611762 *Qty: 1 RH FRONT PIPE (UNTIL THE VIN 6LA3976) $21.88
Location: 23 Prev | Next Part: 400611724 *Qty: 1 RH PIPE (UNTIL THE VIN 6LA3976) $35.26
Location: 24 Prev | Next Part: 407611939B *Qty: 1 HOSE (UNTIL THE VIN 6LA3976) $38.72
Location: 25 Prev | Next Part: 407611797 *Qty: 1 BRACKET (UNTIL THE VIN 6LA3976) $14.61
Location: 26 Prev | Next Part: N10300501 *Qty: 2 SCREW (UNTIL THE VIN 6LA3976) $0.90
Location: 27 Prev | Next Part: 400121220C *Qty: 8 RUBBER SUPPORT (UNTIL THE VIN 6LA3976) $22.67
Location: 28 Prev | Next Part: *Qty: 0 BRACKET (SEE TABLE 121.03.00 - SEE REF. 17) Call
Location: 29 Prev | Next Part: 400121097A *Qty: 2 BRACKET (UNTIL THE VIN 6LA3976) $9.27
Location: 30 Prev | Next Part: N0150825 *Qty: 4 NUT (UNTIL THE VIN 6LA3976) $0.90
Location: 31 Prev | Next Part: 1J0611853 *Qty: 6 SPACER (UNTIL THE VIN 6LA3976) $0.90
Location: 32 Prev | Next Part: *Qty: 0 CHECK VALVE (SEE TABLE 129.03.00 - SEE REF. 28) Call
Location: 33 Prev | Next Part: 400611799 *Qty: 12 CLIP (? 5 - UNTIL THE VIN 6LA3976) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
