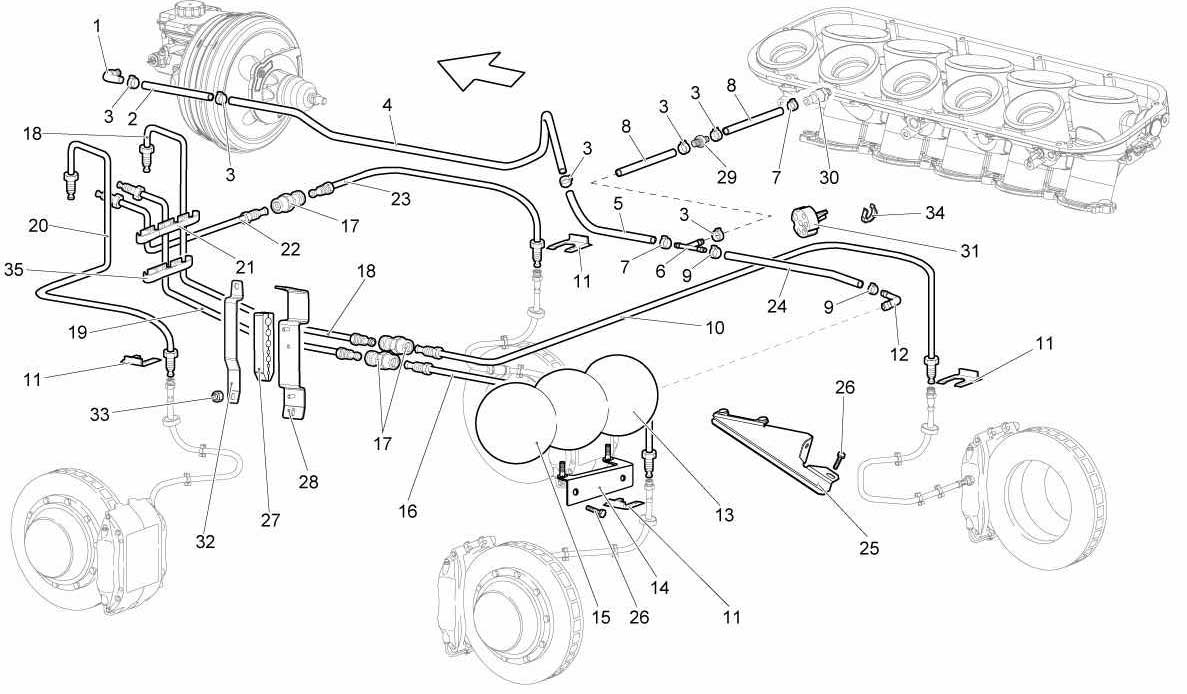

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 400616807 1 CHECK VALVE (FROM VIN 6LA3977) Unavailable
2 401611971B 1 HOSE (FROM VIN 6LA3977) Unavailable
3 N10201901 6 CLAMP (FROM VIN 6LA3977) Unavailable
4 400611936A 1 PIPE (FROM VIN 6LA3977) Unavailable
5 400611940B 1 HOSE (FROM VIN 6LA3977) Unavailable
6 400611921 1 CONNECTOR (FROM VIN 6LA3977) Unavailable
7 N0245097 1 CLAMP (FROM VIN 6LA3977) Unavailable
8 400611937C 2 HOSE (FROM VIN 6LA3977) Unavailable
9 400251189E 2 CLAMP (FROM VIN 6LA3977) Unavailable
10 400611742 1 RH PIPE (FROM VIN 6LA3977) Unavailable
11 400611949 7 PLATE (FROM VIN 6LA3977) Unavailable
12 400612173 1 CONNECTOR (FROM VIN 6LA3977) Unavailable
13 N10017303 2 NUT (FROM VIN 6LA3977) Unavailable
14 0 BRACKET (VALID FOR A DIFFERENT MODEL) Unavailable
15 443131541 1 VACUUM TANK ASSEMBLY (FROM VIN 6LA3977) Unavailable
16 400611741 1 LH PIPE (FROM VIN 6LA3977) Unavailable
17 400611809 3 CONNECTOR (FROM VIN 6LA3977) Unavailable
18 401611764 1 RH REAR PIPE (FROM VIN 6LA3977) Unavailable
19 401611763 1 LH PIPE (FROM VIN 6LA3977) Unavailable
20 401611761 1 LH PIPE (FROM VIN 6LA3977) Unavailable
21 6N0611797D 3 CLAMP (FROM VIN 6LA3977) Unavailable
22 401611762 1 RH FRONT PIPE (FROM VIN 6LA3977) Unavailable
23 400611724 1 RH PIPE (FROM VIN 6LA3977) Unavailable
24 407611939B 1 HOSE (FROM VIN 6LA3977) Unavailable
25 407611797 1 BRACKET (FROM VIN 6LA3977) Unavailable
26 N10300501 2 SCREW (FROM VIN 6LA3977) Unavailable
27 400121220D 8 RUBBER SUPPORT (FROM VIN 6LA3977) Unavailable
28 0 BRACKET (SEE TABLE 121.03.00 - SEE REF. 17) Unavailable
29 410616807 1 CHECK VALVE (FROM VIN 6LA3977) Unavailable
30 0 CHECK VALVE (SEE TABLE 129.03.00 - SEE REF. 28) Unavailable
31 1J0611853 6 SPACER (FROM VIN 6LA3977) Unavailable
32 400121097A 2 BRACKET (FROM VIN 6LA3977) Unavailable
33 N0150825 4 NUT (FROM VIN 6LA3977) Unavailable
34 400611799 12 CLIP (? 5 - FROM VIN 6LA3977) Unavailable
35 8Z0611797C 1 CLAMP Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
