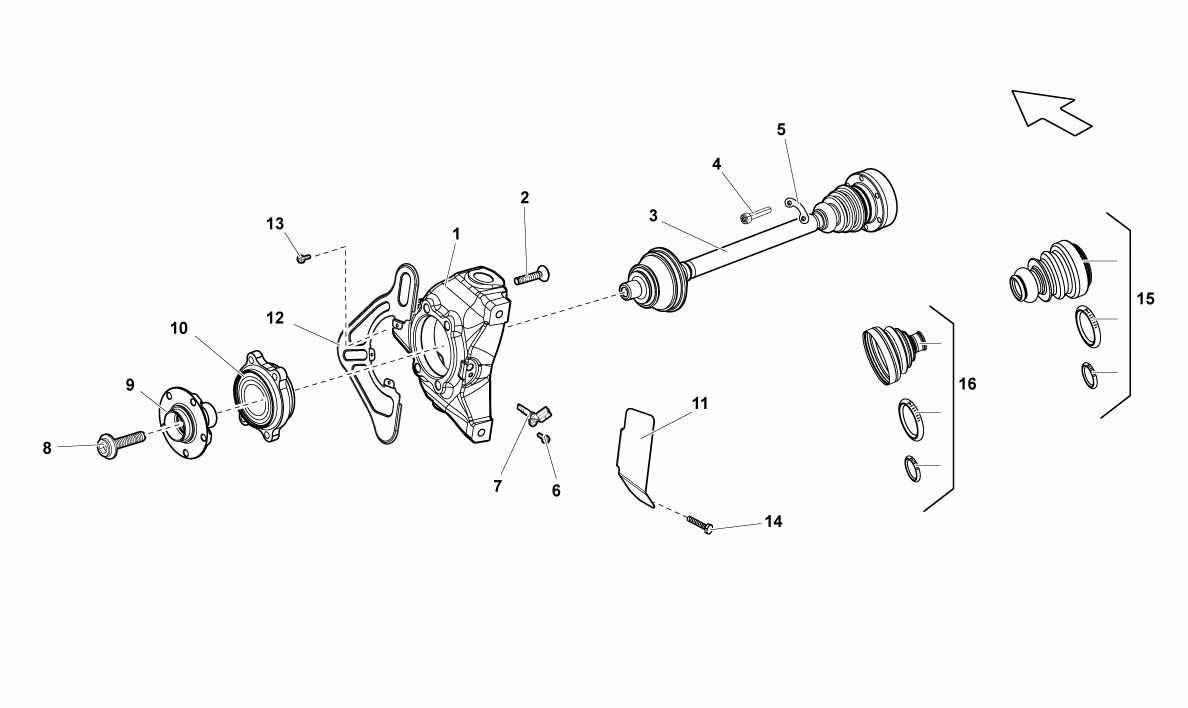

FRONT DRIVE SHAFT

Go to Split View

FRONT DRIVE SHAFT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 420407245B *Qty: 1 FRONT LEFT HUB CARRIER $366.08
Location: 1 Prev | Next Part: 420407246B *Qty: 1 FRONT RIGHT HUB CARRIER $366.08
Location: 2 Prev | Next Part: WHT000237A *Qty: 8 SCREW M12X45 $4.60
Location: 3 Prev | Next Part: 420407271 *Qty: 2 FRONT OMOKINETIC DRIVE SHAFT $804.90
Location: 4 Prev | Next Part: N91108201 *Qty: 12 SCREW M8X48 $2.76
Location: 5 Prev | Next Part: 420407357 *Qty: 6 PLATTE $1.22
Location: 6 Prev | Next Part: N01474011 *Qty: 2 SCREW $0.90
Location: 7 Prev | Next Part: 4E0927804D *Qty: 1 RH ABS SENSOR $20.11
Location: 7 Prev | Next Part: 4E0927803D *Qty: 1 LH ABS SENSOR Call
Location: 8 Prev | Next Part: 4B0407643A *Qty: 2 SCREW $14.53
Location: 9 Prev | Next Part: 4D0407613E *Qty: 2 HUB $240.15
Location: 10 Prev | Next Part: 4E0407625E *Qty: 2 BEARING $198.85
Location: 11 Prev | Next Part: *Qty: 0 PROTECTION (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 12 Prev | Next Part: 420407721A *Qty: 1 LH PROTECTION $37.32
Location: 12 Prev | Next Part: 420407722A *Qty: 1 RH PROTECTION $37.32
Location: 13 Prev | Next Part: N10459201 *Qty: 6 SCREW M5X12 $0.90
Location: 14 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 15 Prev | Next Part: *Qty: 2 KIT AXELSHAFT FORE INNER (CANNOT BE SOLD SEPARATELY) Call
Location: 16 Prev | Next Part: *Qty: 2 KIT AXELSHAFT FORE OUTER (CANNOT BE SOLD SEPARATELY) Call

* Quantity shown indicates the number of pieces used in the diagram.
