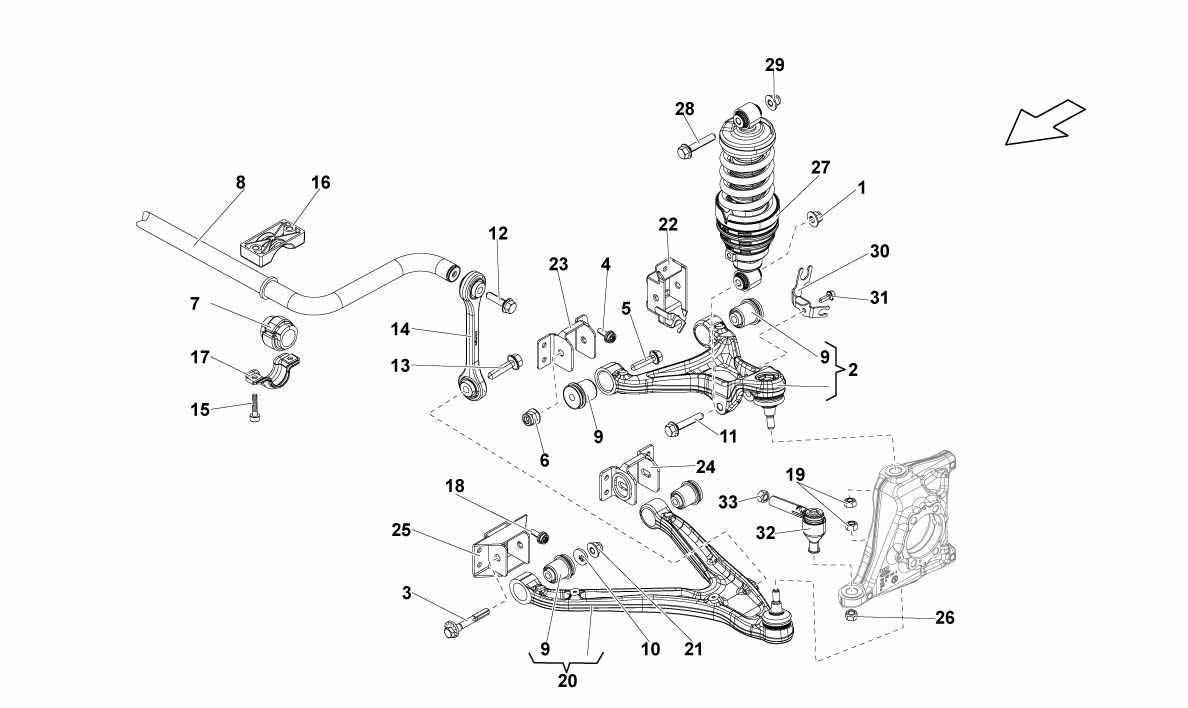

FRONT ARMS

Go to Split View

FRONT ARMS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N10106402 *Qty: 2 NUT M12X1.5 $1.22
Location: 2 Prev | Next Part: 420407505A *Qty: 1 LH UPPER ARM $383.61
Location: 2 Prev | Next Part: 420407506A *Qty: 1 RH UPPER ARM $383.61
Location: 3 Prev | Next Part: WHT002262 *Qty: 4 SCREW M12X1.5X87 $13.38
Location: 4 Prev | Next Part: N10689301 *Qty: 16 SCREW M8X25 $1.00
Location: 5 Prev | Next Part: N10428002 *Qty: 4 SCREW M12X1.5X80 $3.14
Location: 6 Prev | Next Part: N10106402 *Qty: 2 NUT M12X1.5 $1.22
Location: 7 Prev | Next Part: 4D0411327J *Qty: 2 BUSHING $8.57
Location: 8 Prev | Next Part: 420411309 *Qty: 1 FRONT STABILIZER BAR $294.46
Location: 9 Prev | Next Part: 8E0505185P *Qty: 8 FLEXIBLE BUSHING $26.01
Location: 10 Prev | Next Part: WHT001676 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: N10629501 *Qty: 2 JOURNAL M12X1.50X125X90 $6.05
Location: 12 Prev | Next Part: N10699901 *Qty: 2 SCREW M10X45 $1.61
Location: 13 Prev | Next Part: N10314506 *Qty: 4 SCREW M10X50 $3.83
Location: 14 Prev | Next Part: 420407465 *Qty: 2 CONNECTING ROD $134.00
Location: 15 Prev | Next Part: N10682501 *Qty: 4 SCREW M8X50 $1.44
Location: 16 Prev | Next Part: 420411031A *Qty: 2 STABILIZER BAR BRACKET $18.59
Location: 17 Prev | Next Part: 4D0411336G *Qty: 2 STABILIZER BAR BRACKET $3.60
Location: 18 Prev | Next Part: N10689301 *Qty: 16 SCREW M8X25 $1.00
Location: 19 Prev | Next Part: N90848404 *Qty: 4 NUT M12X1.5 $3.60
Location: 20 Prev | Next Part: 420407151B *Qty: 1 LH LOWER ARM $475.63
Location: 20 Prev | Next Part: 420407152B *Qty: 1 RH LOWER ARM $475.63
Location: 21 Prev | Next Part: N10106402 *Qty: 4 NUT M12X1.5 $1.22
Location: 22 Prev | Next Part: 420407457B *Qty: 1 LEFT SUPPORT $42.91
Location: 22 Prev | Next Part: 420407458B *Qty: 1 RIGHT SUPPORT $42.91
Location: 23 Prev | Next Part: 420407457F *Qty: 1 LEFT SUPPORT $42.91
Location: 23 Prev | Next Part: 420407458F *Qty: 1 RIGHT SUPPORT $42.91
Location: 24 Prev | Next Part: 420407457H *Qty: 1 LEFT SUPPORT $42.91
Location: 24 Prev | Next Part: 420407458H *Qty: 1 RIGHT SUPPORT $42.91
Location: 25 Prev | Next Part: 400407457 *Qty: 2 SUPPORT $111.94
Location: 26 Prev | Next Part: N90848404 *Qty: 2 NUT M12X1.5 $3.60
Location: 27 Prev | Next Part: 400412019B *Qty: 2 SHOCK ABSORBER (COMFORT) Call
Location: 27 Prev | Next Part: 400412019B *Qty: 2 SHOCK ABSORBER (COMFORT/LIFTING SYSTEM - BILSTEIN) Call
Location: 27 Prev | Next Part: 400412019B *Qty: 2 SHOCK ABSORBER (SPORT) Call
Location: 27 Prev | Next Part: 400412019B *Qty: 2 SHOCK ABSORBER (SPORT/LIFTING SYSTEM - BILSTEIN) Call
Location: 27 Prev | Next Part: 400412019B *Qty: 2 SHOCK ABSORBER (STANDARD) Call
Location: 27 Prev | Next Part: 400412019B *Qty: 2 SHOCK ABSORBER (STANDARD/LIFTING SYSTEM - BILSTEIN) Call
Location: 28 Prev | Next Part: N10428002 *Qty: 2 SCREW M12X1.5X80 $3.14
Location: 29 Prev | Next Part: N10106402 *Qty: 2 NUT M12X1.5 $1.22
Location: 30 Prev | Next Part: 400971845A *Qty: 1 LH BRACKET $25.00
Location: 30 Prev | Next Part: 400971846A *Qty: 1 RH BRACKET $25.00
Location: 31 Prev | Next Part: N10714801 *Qty: 2 SCREW M6X18 $0.90
Location: 32 Prev | Next Part: 420419811A *Qty: 2 BALL JOINT COUPLING $142.72
Location: 33 Prev | Next Part: N10218708 *Qty: 2 NUT M14X1.5 $1.11

* Quantity shown indicates the number of pieces used in the diagram.
