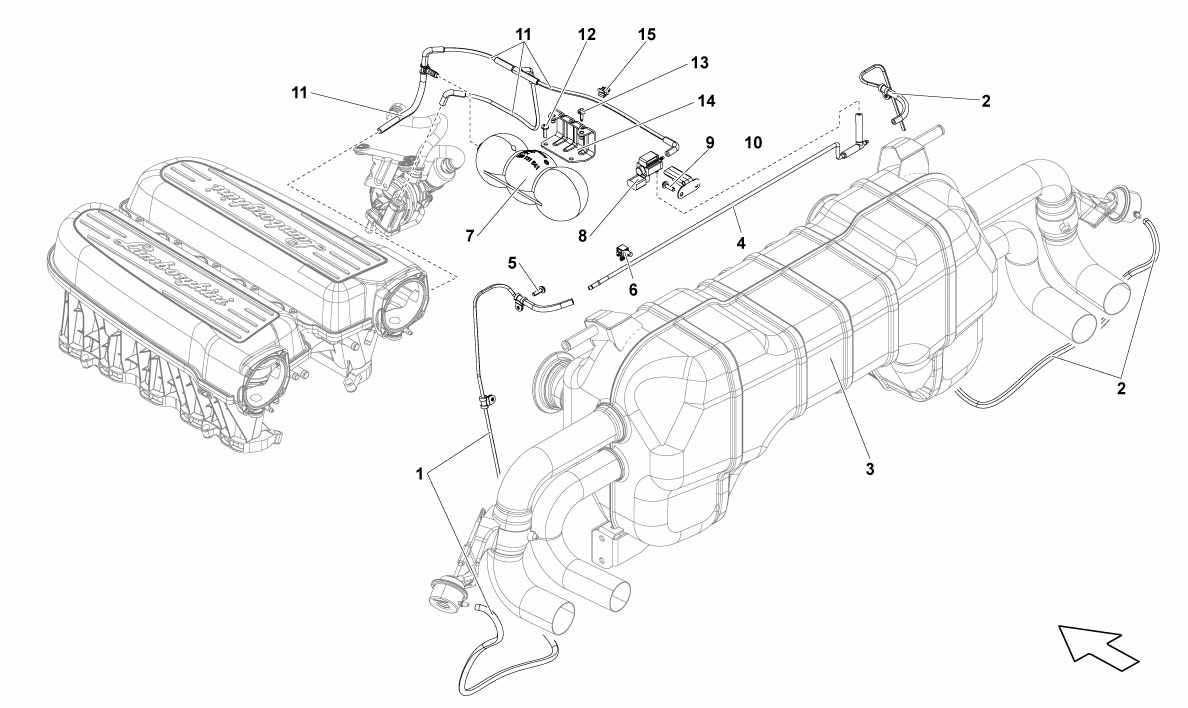

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400131055 *Qty: 1 LH PIPE $47.89
Location: 2 Prev | Next Part: 400131056 *Qty: 1 RH PIPE $47.89
Location: 3 Prev | Next Part: *Qty: 0 SILENCER ASSEMBLY (SEE TABLE - 2510700 - SEE REF. 1) Call
Location: 4 Prev | Next Part: 400131385F *Qty: 1 PIPE $23.96
Location: 5 Prev | Next Part: 4E0831701 *Qty: 4 SCREW M6X13 $1.03
Location: 6 Prev | Next Part: 8D0611797D *Qty: 3 CLAMP $3.52
Location: 7 Prev | Next Part: 420131541 *Qty: 1 VACUUM TANK ASSEMBLY $46.12
Location: 8 Prev | Next Part: 37906283C *Qty: 1 SOLENOID VALVE $93.00
Location: 9 Prev | Next Part: N90939303 *Qty: 2 SCREW M5X20 $0.90
Location: 10 Prev | Next Part: 400864107 *Qty: 1 BRACKET $14.96
Location: 11 Prev | Next Part: 408131386 *Qty: 1 HOSE Call
Location: 12 Prev | Next Part: N10124304 *Qty: 2 SCREW M6X20 $0.90
Location: 13 Prev | Next Part: N90939303 *Qty: 2 SCREW M5X20 $0.90
Location: 14 Prev | Next Part: 420809163 *Qty: 1 BRACKET $15.99
Location: 15 Prev | Next Part: N90666101 *Qty: 3 CLAMP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
