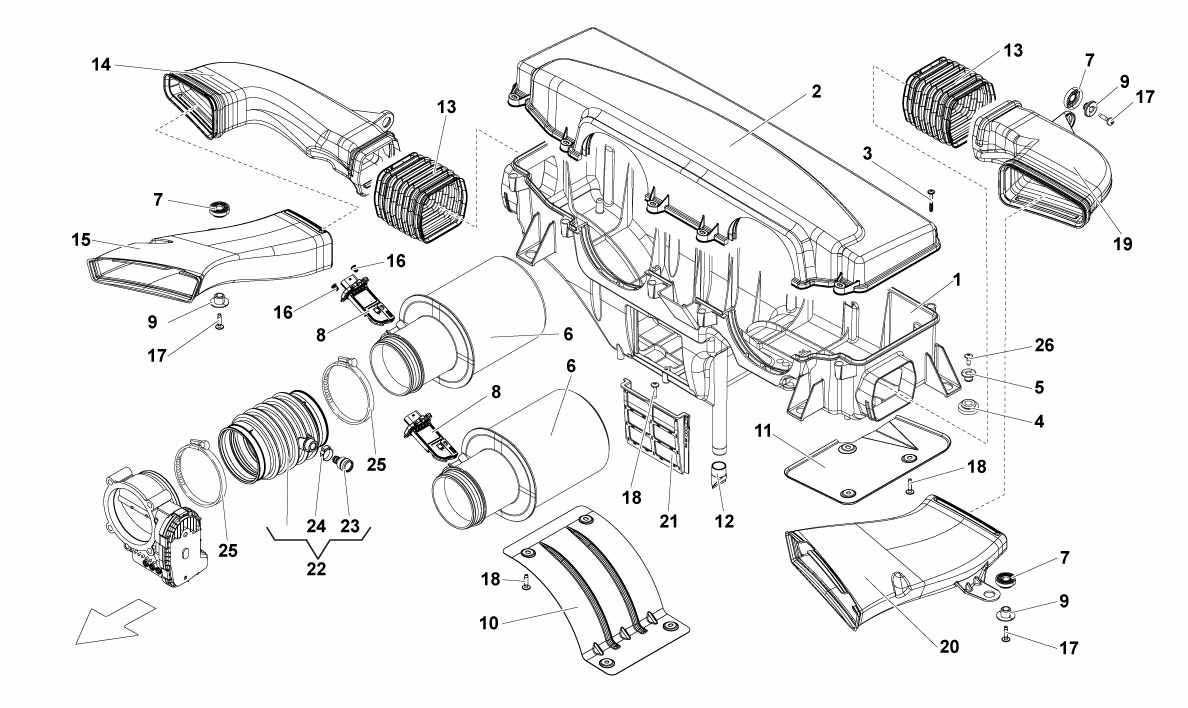

AIR FILTER BOX

Go to Split View

AIR FILTER BOX

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 420133845C *Qty: 1 AIR FILTER BOX $98.97
Location: 2 Prev | Next Part: 420133846B *Qty: 1 COVER $54.31
Location: 3 Prev | Next Part: 420198132 *Qty: 1 FIXING KIT $7.12
Location: 4 Prev | Next Part: 867129669 *Qty: 4 FAIRLEAD $1.43
Location: 5 Prev | Next Part: 1K0129734B *Qty: 4 BUSHING $4.67
Location: 6 Prev | Next Part: 420133844D *Qty: 2 FILTERING CARTRIDGE $94.84
Location: 7 Prev | Next Part: 867129669 *Qty: 4 FAIRLEAD $1.43
Location: 8 Prev | Next Part: 420133471 *Qty: 2 AIR FLOW METER $191.97
Location: 9 Prev | Next Part: 1K0129734B *Qty: 4 BUSHING $4.67
Location: 10 Prev | Next Part: 420115339A *Qty: 1 HEAT SHIELD $9.56
Location: 11 Prev | Next Part: 420115339C *Qty: 1 HEAT SHIELD $12.01
Location: 12 Prev | Next Part: 420133540 *Qty: 1 VALVE $12.78
Location: 13 Prev | Next Part: 420129739B *Qty: 2 PIPE $45.35
Location: 14 Prev | Next Part: 420129528 *Qty: 1 RIGHT AIR INTAKE $78.63
Location: 15 Prev | Next Part: 400827964A *Qty: 1 RIGHT AIR INTAKE $130.04
Location: 16 Prev | Next Part: N90739704 *Qty: 4 SCREW M5X22 $0.90
Location: 17 Prev | Next Part: N91054201 *Qty: 4 SCREW M6X28 $1.09
Location: 18 Prev | Next Part: N90739704 *Qty: 8 SCREW M5X22 $0.90
Location: 19 Prev | Next Part: 420129527 *Qty: 1 LEFT AIR INTAKE $78.63
Location: 20 Prev | Next Part: 400827963A *Qty: 1 LEFT AIR INTAKE $130.04
Location: 21 Prev | Next Part: 420133360B *Qty: 1 FILTERING CARTRIDGE Call
Location: 22 Prev | Next Part: 420133303F *Qty: 2 HOSE $30.80
Location: 23 Prev | Next Part: 79133022C *Qty: 2 PIPE UNION $10.18
Location: 24 Prev | Next Part: N10098001 *Qty: 2 CLAMP $1.61
Location: 25 Prev | Next Part: N0245085 *Qty: 4 CLAMP $4.90
Location: 26 Prev | Next Part: N91054201 *Qty: 4 SCREW M6X28 $1.09

* Quantity shown indicates the number of pieces used in the diagram.
