REAR DRIVE SHAFT

in cart
Go to Split View

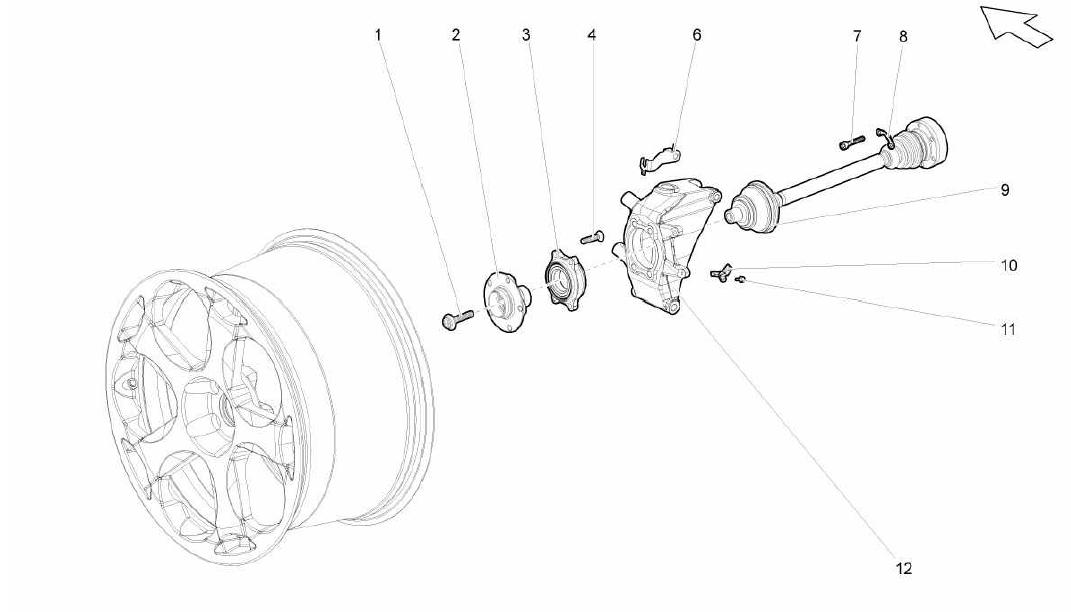

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4B0407643A *Qty: 2 SCREW $14.53
Location: 2 Prev | Next Part: 4E0407613A *Qty: 2 HUB $254.68
Location: 3 Prev | Next Part: 4E0407625D *Qty: 2 BEARING $142.71
Location: 4 Prev | Next Part: 4D0505445 *Qty: 8 SCREW $2.69
Location: 6 Prev | Next Part: 400615382 *Qty: 1 RH BRACKET $8.27
Location: 6 Prev | Next Part: 400615381 *Qty: 1 LH BRACKET $8.27
Location: 7 Prev | Next Part: 25013005 *Qty: 12 SCREW $6.97
Location: 8 Prev | Next Part: 400501357 *Qty: 6 PLATE $11.14
Location: 9 Prev | Next Part: 400501212C *Qty: 1 RH REAR OMOKINETIC DRIVE SHAFT $502.27
Location: 9 Prev | Next Part: 400501211C *Qty: 1 LH REAR OMOKINETIC DRIVE SHAFT $513.69
Location: 10 Prev | Next Part: 4E0927804 *Qty: 1 RH ABS SENSOR Call
Location: 10 Prev | Next Part: 4E0927803 *Qty: 1 LH ABS SENSOR $30.59
Location: 11 Prev | Next Part: N10226101 *Qty: 2 SCREW $0.91
Location: 12 Prev | Next Part: 400505434 *Qty: 1 REAR RIGHT HUB CARRIER $1,829.29
Location: 12 Prev | Next Part: 400505433 *Qty: 1 REAR LEFT HUB CARRIER $1,829.29

* Quantity shown indicates the number of pieces used in the diagram.
