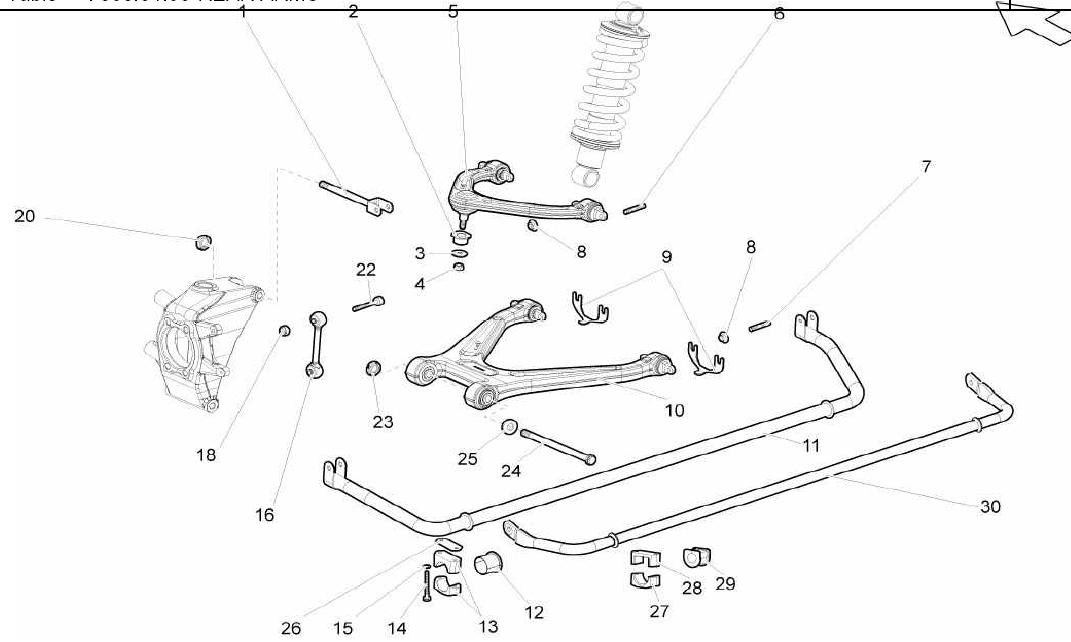

REAR ARMS

Go to Split View

REAR ARMS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400505183 *Qty: 2 SCREW Unavailable
Location: 2 Prev | Next Part: 400407171B *Qty: 2 BUSHING Unavailable
Location: 3 Prev | Next Part: 400505179B *Qty: 2 SPACER Unavailable
Location: 4 Prev | Next Part: N90323704 *Qty: 2 NUT Unavailable
Location: 5 Prev | Next Part: 400505323 *Qty: 2 UPPER ARM Unavailable
Location: 6 Prev | Next Part: N91062101 *Qty: 8 STUD BOLT Unavailable
Location: 7 Prev | Next Part: N91062001 *Qty: 8 STUD BOLT Unavailable
Location: 8 Prev | Next Part: N90226403 *Qty: 16 NUT Unavailable
Location: 9 Prev | Next Part: 400407379E *Qty: 16 3.0 MM SHIM Unavailable
Location: 9 Prev | Next Part: 400407379D *Qty: 16 2.5 MM SHIM Unavailable
Location: 9 Prev | Next Part: 400407379C *Qty: 16 2.0 MM SHIM Unavailable
Location: 9 Prev | Next Part: 400407379B *Qty: 16 1.5 MM SHIM Unavailable
Location: 9 Prev | Next Part: 400407379A *Qty: 16 1.0 MM SHIM Unavailable
Location: 9 Prev | Next Part: 400407379 *Qty: 16 0.5 MM SHIM Unavailable
Location: 9 Prev | Next Part: 400407379F *Qty: 16 0.3 MM SHIM Unavailable
Location: 10 Prev | Next Part: 400505311 *Qty: 2 LOWER ARM Unavailable
Location: 11 Prev | Next Part: 400511409 *Qty: 1 REAR STABILIZER BAR (UNTIL THE VIN 4LA01398) Unavailable
Location: 11 Prev | Next Part: 400511409A *Qty: 1 REAR STABILIZER BAR (FROM VIN 4LA01399) Unavailable
Location: 12 Prev | Next Part: 400511324C *Qty: 2 BUSHING (FROM VIN 4LA01399 ? UP TO VIN 4LA01398 ALSO USE 400411031H) Unavailable
Location: 13 Prev | Next Part: 400411031H *Qty: 2 STABILIZER BAR BRACKET (UP TO VIN 4LA01398 ? ALSO USE 400411324C) Unavailable
Location: 13 Prev | Next Part: 400411031D *Qty: 2 STABILIZER BAR BRACKET (FROM VIN 4LA01399) Unavailable
Location: 14 Prev | Next Part: WHT000923 *Qty: 4 SCREW Unavailable
Location: 15 Prev | Next Part: WHT001197 *Qty: 4 WASHER Unavailable
Location: 16 Prev | Next Part: 400505465A *Qty: 2 CONNECTING ROD (UNTIL THE VIN 6LA03288) Unavailable
Location: 18 Prev | Next Part: N10286102 *Qty: 2 NUT (UNTIL THE VIN 6LA03288) Unavailable
Location: 20 Prev | Next Part: *Qty: 0 0 Unavailable
Location: 20 Prev | Next Part: N90323704 *Qty: 2 NUT Unavailable
Location: 22 Prev | Next Part: N10314503 *Qty: 2 SCREW (UNTIL THE VIN 6LA63288) Unavailable
Location: 23 Prev | Next Part: N10268602 *Qty: 2 NUT Unavailable
Location: 24 Prev | Next Part: 400505445 *Qty: 2 SCREW Unavailable
Location: 25 Prev | Next Part: 400407749 *Qty: 1 0.5 MM SHIM Unavailable
Location: 25 Prev | Next Part: 400407742 *Qty: 1 2.0 MM SHIM Unavailable
Location: 25 Prev | Next Part: 400407740 *Qty: 1 1.5 MM SHIM Unavailable
Location: 25 Prev | Next Part: 400407739 *Qty: 1 1.0 MM SHIM Unavailable
Location: 26 Prev | Next Part: 400411175A *Qty: 2 SPACER Unavailable
Location: 27 Prev | Next Part: *Qty: 1 STABILIZER BAR BRACKET (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
Location: 28 Prev | Next Part: *Qty: 1 STABILIZER BAR BRACKET (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
Location: 29 Prev | Next Part: *Qty: 2 BUSHING (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
Location: 30 Prev | Next Part: *Qty: 1 REAR STABILIZER BAR (VALID FOR A DIFFERENT MODEL YEAR) Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
