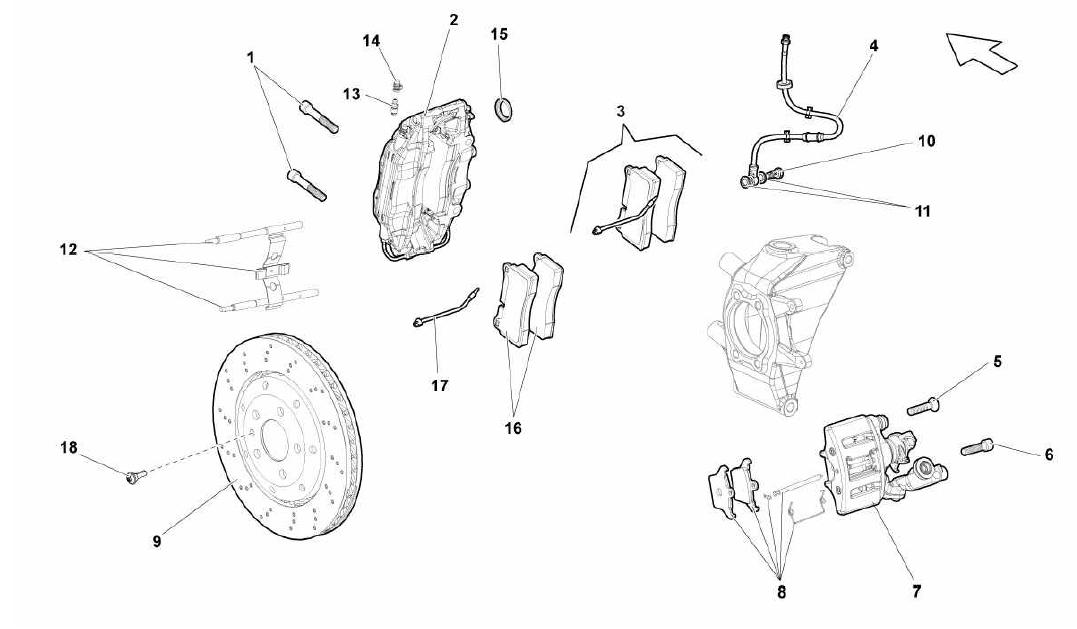

REAR BRAKES DISCS

Go to Split View

REAR BRAKES DISCS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N10065002 *Qty: 2 SCREW Unavailable
Location: 2 Prev | Next Part: 400615405B *Qty: 1 LH REAR BRAKE CALIPER (YELLOW FRONT CALIPERS) Unavailable
Location: 2 Prev | Next Part: 400615405C *Qty: 1 LH REAR BRAKE CALIPER (GREY REAR CALIPERS) Unavailable
Location: 2 Prev | Next Part: 400615405A *Qty: 1 LH REAR BRAKE CALIPER (BLACK REAR CALIPERS) Unavailable
Location: 2 Prev | Next Part: 400615406B *Qty: 1 RH REAR BRAKE CALIPER (YELLOW REAR CALIPERS) Unavailable
Location: 2 Prev | Next Part: 400615406C *Qty: 1 RH REAR BRAKE CALIPER (GREY REAR CALIPERS) Unavailable
Location: 2 Prev | Next Part: 400615406A *Qty: 1 RH REAR BRAKE CALIPER (BLACK REAR CALIPERS) Unavailable
Location: 3 Prev | Next Part: 400698451 *Qty: 1 REAR BRAKE PAD SET Unavailable
Location: 4 Prev | Next Part: 400611775 *Qty: 2 HOSE Unavailable
Location: 5 Prev | Next Part: N10406201 *Qty: 1 SCREW Unavailable
Location: 6 Prev | Next Part: N10581101 *Qty: 1 SCREW Unavailable
Location: 7 Prev | Next Part: 400615404 *Qty: 1 RH HAND BRAKE CALIPER Unavailable
Location: 7 Prev | Next Part: 400615403 *Qty: 1 LH HAND BRAKE CALIPER Unavailable
Location: 8 Prev | Next Part: 400798041 *Qty: 1 HAND BRAKE PAD SET Unavailable
Location: 9 Prev | Next Part: 400615602C *Qty: 1 RH REAR BRAKE DISK Unavailable
Location: 9 Prev | Next Part: 400615601C *Qty: 1 LH REAR BRAKE DISK Unavailable
Location: 10 Prev | Next Part: WHT000861 *Qty: 2 SCREW Unavailable
Location: 11 Prev | Next Part: WHT001191 *Qty: 4 WASHER Unavailable
Location: 12 Prev | Next Part: 400698135A *Qty: 2 JOURNAL AND CLIP SET Unavailable
Location: 13 Prev | Next Part: 400615273A *Qty: 2 BLEEDER Unavailable
Location: 14 Prev | Next Part: 400615325 *Qty: 2 BOOT Unavailable
Location: 15 Prev | Next Part: 400611691A *Qty: 2 SEAL RING Unavailable
Location: 17 Prev | Next Part: *Qty: 2 ELECTRIC CABLE (VALID FOR A DIFFERENT MODEL YEAR) Unavailable
Location: 18 Prev | Next Part: N01021224 *Qty: 2 SCREW Unavailable
Location: 37 Prev | Next Part: *Qty: 0 0 Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
