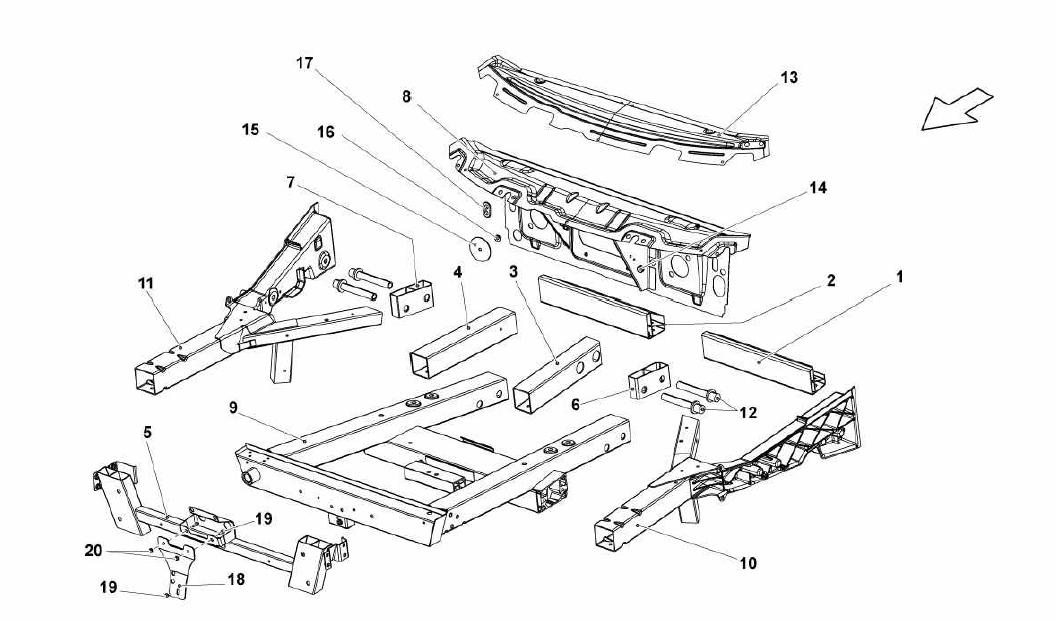

FRONT FRAME ELEMENTS

Go to Split View

FRONT FRAME ELEMENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400803173 *Qty: 1 CROSS MEMBER $341.63
Location: 2 Prev | Next Part: 400803174 *Qty: 1 CROSS MEMBER $341.63
Location: 3 Prev | Next Part: 400806217A *Qty: 1 REINFORCEMENT $372.83
Location: 4 Prev | Next Part: 400806218A *Qty: 1 REINFORCEMENT $369.95
Location: 5 Prev | Next Part: 400805253F *Qty: 1 CROSS MEMBER $1,306.56
Location: 6 Prev | Next Part: 400805377 *Qty: 1 SUPPORT $385.97
Location: 7 Prev | Next Part: 400805378 *Qty: 1 SUPPORT $385.97
Location: 8 Prev | Next Part: 400805431 *Qty: 1 FRONTAL PART $691.63
Location: 9 Prev | Next Part: 400805021F *Qty: 1 FRONT PART $7,539.76
Location: 10 Prev | Next Part: 400805139F *Qty: 1 A-PILLAR COVER $3,793.22
Location: 11 Prev | Next Part: 400805140F *Qty: 1 A-PILLAR COVER $3,793.22
Location: 12 Prev | Next Part: 400805179J *Qty: 4 SLEEVE $288.53
Location: 13 Prev | Next Part: 400805117 *Qty: 1 SHEET $376.15
Location: 14 Prev | Next Part: 400821189 *Qty: 1 FAIRLEAD (10X18) $1.83
Location: 15 Prev | Next Part: 400971841 *Qty: 1 FAIRLEAD $18.09
Location: 16 Prev | Next Part: N10249701 *Qty: 2 PLUG $0.90
Location: 17 Prev | Next Part: 400721493 *Qty: 3 FAIRLEAD $20.48
Location: 18 Prev | Next Part: 400806571 *Qty: 1 BRACKET $47.23
Location: 19 Prev | Next Part: *Qty: 3 SCREW Call
Location: 20 Prev | Next Part: *Qty: 2 NUT Call

* Quantity shown indicates the number of pieces used in the diagram.
