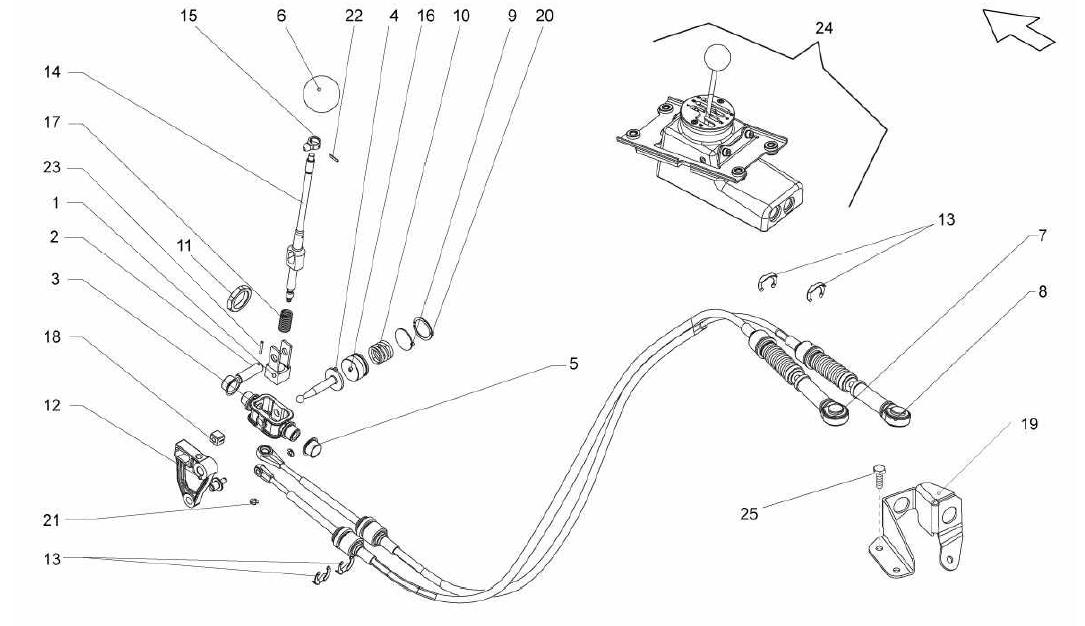

MANUAL TRANSMISSION CONTROLS

Go to Split View

MANUAL TRANSMISSION CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400711026 *Qty: 1 SUPPORT $412.06
Location: 2 Prev | Next Part: 400711077 *Qty: 1 JOURNAL $129.64
Location: 3 Prev | Next Part: 400711111 *Qty: 1 SHIFT LEVER SEAT $247.03
Location: 4 Prev | Next Part: 400711125 *Qty: 1 JOURNAL $70.60
Location: 5 Prev | Next Part: 400711129 *Qty: 2 BUSHING $26.21
Location: 6 Prev | Next Part: 400711141 *Qty: 1 HANDLE $659.68
Location: 7 Prev | Next Part: 400711265 *Qty: 1 CABLE $365.87
Location: 8 Prev | Next Part: 400711266 *Qty: 1 SELECTION CABLE $365.87
Location: 9 Prev | Next Part: 400711335 *Qty: 1 DISK $26.21
Location: 10 Prev | Next Part: 400711490 *Qty: 1 SPRING $19.66
Location: 11 Prev | Next Part: 400711509 *Qty: 1 NUT $78.71
Location: 12 Prev | Next Part: 400711611 *Qty: 1 SELECTION LEVER $219.51
Location: 13 Prev | Next Part: 1J0711280B *Qty: 4 CLIP $0.90
Location: 14 Prev | Next Part: 400711123A *Qty: 1 LEVER $914.64
Location: 15 Prev | Next Part: 400711149A *Qty: 1 PAWL $126.87
Location: 16 Prev | Next Part: 400711336A *Qty: 1 SPRING CAP $203.71
Location: 17 Prev | Next Part: 400711490B *Qty: 1 SPRING $14.15
Location: 18 Prev | Next Part: 400711550A *Qty: 1 BUSHING $92.61
Location: 19 Prev | Next Part: 400711789A *Qty: 1 SUPPORT $68.65
Location: 20 Prev | Next Part: N0123031 *Qty: 1 SEEGER $1.43
Location: 21 Prev | Next Part: N0124352 *Qty: 2 SEEGER $0.90
Location: 22 Prev | Next Part: N0133262 *Qty: 1 PIN $1.19
Location: 23 Prev | Next Part: N0133281 *Qty: 1 PIN $0.90
Location: 24 Prev | Next Part: 400711049A *Qty: 1 SHIFT LEVER SUPPORT $3,804.92
Location: 25 Prev | Next Part: N10049308 *Qty: 3 SCREW M8X20.00 $1.00

* Quantity shown indicates the number of pieces used in the diagram.
