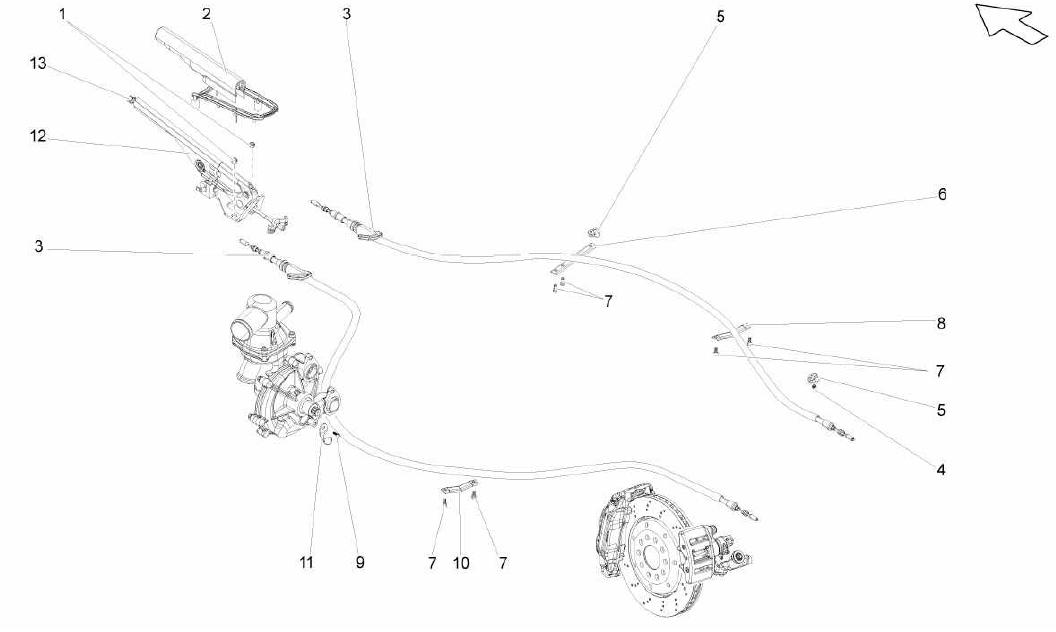

HAND BRAKE

Go to Split View

HAND BRAKE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N0150839 *Qty: 3 NUT $0.90
Location: 2 Prev | Next Part: 400711327 *Qty: 1 HANDLE $108.41
Location: 3 Prev | Next Part: 400609721C *Qty: 2 HAND BRAKE CABLE ASSEMBLY Call
Location: 4 Prev | Next Part: N10095502 *Qty: 2 SCREW M6X15 $0.90
Location: 5 Prev | Next Part: N0206026 *Qty: 2 CLIP $1.12
Location: 6 Prev | Next Part: 400609645 *Qty: 1 BRACKET $11.44
Location: 7 Prev | Next Part: N10459202 *Qty: 6 SCREW $0.90
Location: 8 Prev | Next Part: 400609644 *Qty: 1 RH BRACKET $8.13
Location: 9 Prev | Next Part: N90833102 *Qty: 1 SCREW $0.90
Location: 10 Prev | Next Part: 400609643 *Qty: 1 LH BRACKET $8.13
Location: 11 Prev | Next Part: 400609651 *Qty: 1 BRACKET $14.29
Location: 12 Prev | Next Part: 400711303 *Qty: 1 HAND BRAKE LEVER $433.20
Location: 13 Prev | Next Part: 8N0711332A *Qty: 1 AUTOMATIC BUTTON $20.89

* Quantity shown indicates the number of pieces used in the diagram.
