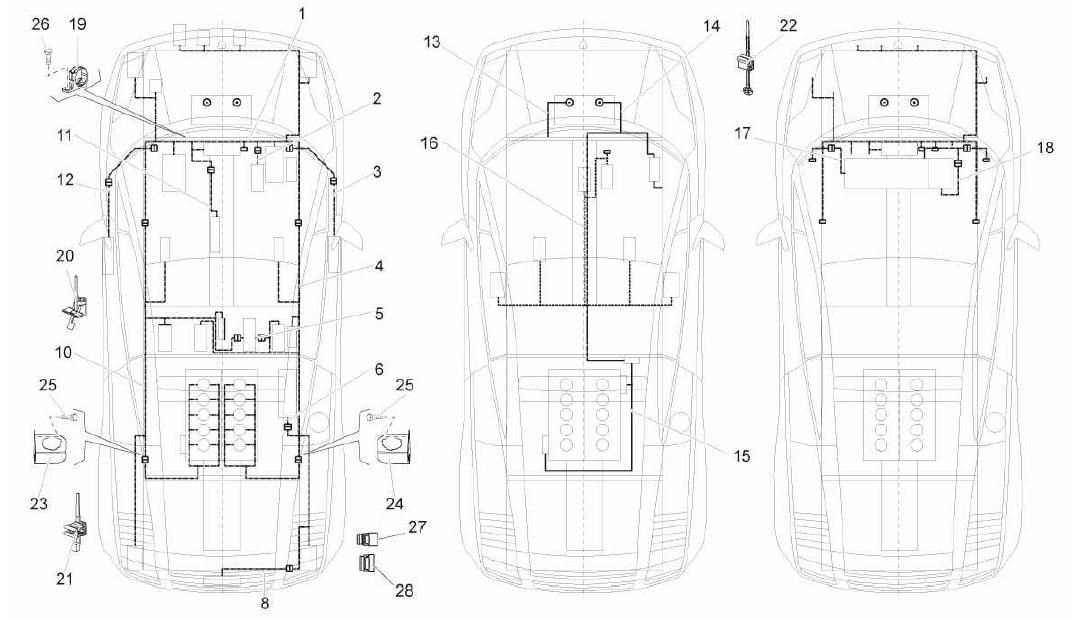

ELETTRICAL SYSTEM

Go to Split View

ELETTRICAL SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 401971135 *Qty: 1 CENTRAL WIRING HARNESS (GSX VERSIONS WITHOUT NAVIGATOR) $2,639.50
Location: 1 Prev | Next Part: 401971135C *Qty: 1 CENTRAL WIRING HARNESS (USA VERSIONS WITH NAVIGATOR) $2,871.65
Location: 2 Prev | Next Part: 400971107A *Qty: 1 RELAY BOX WIRING HARNESS (RELAY BOX WIRING HARNESS) $112.50
Location: 3 Prev | Next Part: 400971036A *Qty: 1 DOOR WIRING HARNESS (PASSENGER SIDE) $136.85
Location: 4 Prev | Next Part: 7L905532E *Qty: 1 INJECTION WIRING HARNESS 1-5 (GSX EUROPE AUTOMATIC GEARBOX) $4,194.95
Location: 4 Prev | Next Part: 7L905532D *Qty: 1 INJECTION WIRING HARNESS 1-5 (GSX EUROPE MANUAL GEARBOX VERSIONS) $3,167.77
Location: 5 Prev | Next Part: 400971258 *Qty: 1 ENGINE RELAY BOX WIRING HARNESS $930.33
Location: 6 Prev | Next Part: 400971771 *Qty: 1 WIRING HARNESS (E-GEAR) $134.57
Location: 8 Prev | Next Part: 400971194 *Qty: 1 WIRING HARNESS $51.48
Location: 10 Prev | Next Part: 7L905534 *Qty: 1 INJECTION WIRING HARNESS 6-10 (FOR LHD CARS) $2,615.68
Location: 11 Prev | Next Part: 400970264 *Qty: 1 TUNNEL WIRING HARNESS $43.01
Location: 12 Prev | Next Part: 401971035A *Qty: 1 DOOR WIRING HARNESS (DRIVER SIDE) $146.24
Location: 13 Prev | Next Part: 400971235A *Qty: 1 CABLE $26.44
Location: 14 Prev | Next Part: *Qty: 1 CABLE (SEE TABLE 971.05.00 - SEE REF. 2) Call
Location: 15 Prev | Next Part: 400971793A *Qty: 1 CABLE (CABLE STARTER MOTOR EXCITATION) $428.40
Location: 16 Prev | Next Part: 401971581 *Qty: 1 AIRBAG WIRING HARNESS $240.32
Location: 17 Prev | Next Part: 401971315B *Qty: 1 WIRING HARNESS DASHBOARD (GSX EUROPE VERSIONS WITH NAVIGATOR) $1,023.24
Location: 17 Prev | Next Part: 401971315 *Qty: 1 WIRING HARNESS DASHBOARD (GSX EUROPE VERSIONS WITHOUT NAVIGATOR) $792.02
Location: 18 Prev | Next Part: 400971679 *Qty: 1 WIRING HARNESS (PASSENGER SIDE DRAWER) $25.82
Location: 19 Prev | Next Part: 400971899 *Qty: 3 CLAMP (? 23 MM) $5.27
Location: 19 Prev | Next Part: 400971906 *Qty: 1 CLAMP (? 28 MM) $1.25
Location: 20 Prev | Next Part: 3D0971838A *Qty: 5 CLAMP $1.76
Location: 21 Prev | Next Part: 3D0971838D *Qty: 3 CLAMP $1.00
Location: 22 Prev | Next Part: 3D0971497D *Qty: 2 CLAMP $0.90
Location: 22 Prev | Next Part: *Qty: 0 0 Call
Location: 23 Prev | Next Part: 400971503 *Qty: 1 LH BRACKET $19.70
Location: 24 Prev | Next Part: 400971504 *Qty: 1 RH BRACKET $19.70
Location: 25 Prev | Next Part: N10095502 *Qty: 4 SCREW M6X15 (M6X15) $0.90
Location: 26 Prev | Next Part: N10003703 *Qty: 4 SCREW M6X17.00 (M6X17) $0.90
Location: 27 Prev | Next Part: 1J0973803 *Qty: 1 CONNECTOR FOR LICENSE PLATES LIGHTS WIRING $4.29
Location: 28 Prev | Next Part: 3D0973703 *Qty: 1 CONNECTOR FOR LICENSE PLATES LIGHTS WIRING $5.97
Location: 46 Prev | Next Part: *Qty: 0 0 Call

* Quantity shown indicates the number of pieces used in the diagram.
