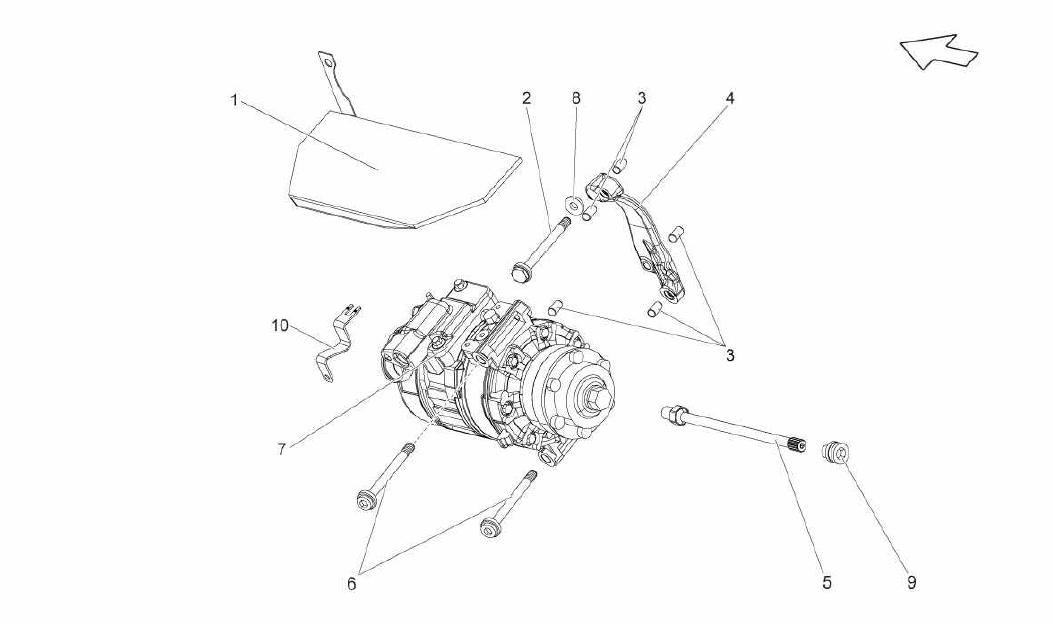

AIR CONDITIONING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L145787 *Qty: 1 HEAT SHIELD Unavailable
Location: 2 Prev | Next Part: N10585001 *Qty: 1 SCREW M8X110 Unavailable
Location: 3 Prev | Next Part: 78260817 *Qty: 4 BUSHING Unavailable
Location: 4 Prev | Next Part: 7L260885C *Qty: 1 SUPPORT Unavailable
Location: 5 Prev | Next Part: 7L260095B *Qty: 1 PROPELLER SHAFT Unavailable
Location: 6 Prev | Next Part: N10458901 *Qty: 2 SCREW M8X90 Unavailable
Location: 7 Prev | Next Part: 400260805 *Qty: 1 COMPRESSOR Unavailable
Location: 8 Prev | Next Part: N01152520 *Qty: 1 WASHER Unavailable
Location: 9 Prev | Next Part: 79260753B *Qty: 1 FAIRLEAD Unavailable
Location: 10 Prev | Next Part: 400145145 *Qty: 1 SUPPORT Unavailable
Location: 52 Prev | Next Part: *Qty: 0 0 Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
