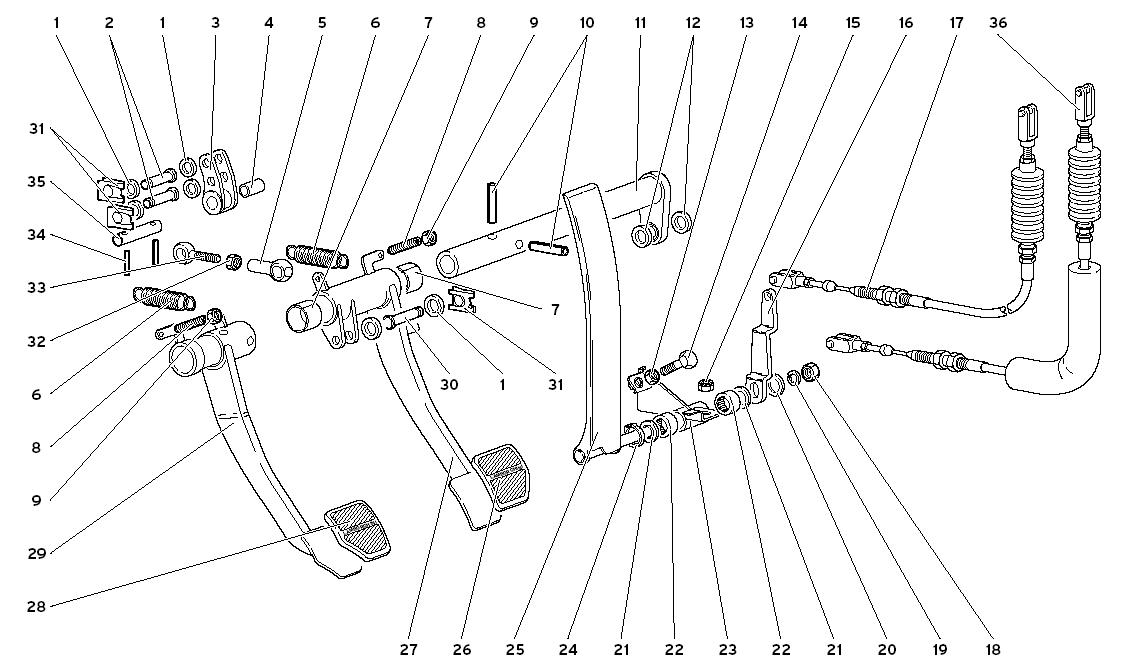

PEDALS

Go to Split View

PEDALS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8401007 *Qty: 6 WASHER (RONDELLA) $0.90
Location: 2 Prev | Next Part: 4232621 *Qty: 2 PIN (PERNO) $38.89
Location: 3 Prev | Next Part: 4225060 *Qty: 1 LEVER (LEVA) $77.97
Location: 4 Prev | Next Part: 8801209 *Qty: 1 BUSHING (BOCCOLA) $9.68
Location: 5 Prev | Next Part: 4225061 *Qty: 1 COUPLING (TESTA A SNODO) $70.90
Location: 6 Prev | Next Part: 42004879 *Qty: 2 SPRING (MOLLA) Call
Location: 7 Prev | Next Part: 8802501 *Qty: 2 BUSHING (BOCCOLA) $22.64
Location: 8 Prev | Next Part: 4210834 *Qty: 2 ADJUSTING SLEEVE (TESTA REGISTRO) $4.58
Location: 9 Prev | Next Part: 8200604 *Qty: 2 NUT (DADO) $0.90
Location: 10 Prev | Next Part: 8900803 *Qty: 2 PIN (SPINA) $1.02
Location: 11 Prev | Next Part: 4225064 *Qty: 1 SHAFT (ALBERO) Call
Location: 12 Prev | Next Part: 8400819 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 13 Prev | Next Part: 8200801 *Qty: 1 NUT (DADO) $0.90
Location: 14 Prev | Next Part: 8100828 *Qty: 1 SCREW (VITE) $0.90
Location: 15 Prev | Next Part: 8200804 *Qty: 2 NUT (DADO) $0.90
Location: 16 Prev | Next Part: 4238042 *Qty: 1 LEVER (LEVA) $35.24
Location: 17 Prev | Next Part: 4230089 *Qty: 1 TIE ROD (TIRANTE ACCELERATORE) $220.63
Location: 18 Prev | Next Part: 8200809 *Qty: 1 NUT (DADO) $1.91
Location: 19 Prev | Next Part: 8410806 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 20 Prev | Next Part: 8400801 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 21 Prev | Next Part: 8401220 *Qty: 2 WASHER (RONDELLA) $6.03
Location: 22 Prev | Next Part: 8521205 *Qty: 2 BEARING (CUSCINETTO) $11.31
Location: 23 Prev | Next Part: 4231811 *Qty: 1 SUPPORT (SUPPORTO) $259.53
Location: 24 Prev | Next Part: 8581101 *Qty: 1 RETAINER RING (ANELLO RITEGNO) $5.83
Location: 25 Prev | Next Part: 4230143 *Qty: 1 ACCELERATOR PEDAL (PEDALE ACCELERATORE) $564.61
Location: 26 Prev | Next Part: 4228351 *Qty: 1 PEDAL PAD (COPRIPEDALE GOMMA) $58.98
Location: 27 Prev | Next Part: 42001105 *Qty: 1 BRAKE PEDAL (PEDALE FRENO) $403.33
Location: 28 Prev | Next Part: 4228349 *Qty: 1 PEDAL PAD (COPRIPEDALE GOMMA) $40.10
Location: 29 Prev | Next Part: 4235355 *Qty: 1 CLUTCH PEDAL (PEDALE FRIZIONE) $403.33
Location: 30 Prev | Next Part: 4232622 *Qty: 1 PIN (PERNO) $26.14
Location: 31 Prev | Next Part: 8581004 *Qty: 3 CLIP (MOLLETTA) $9.49
Location: 32 Prev | Next Part: 8201001 *Qty: 1 NUT (DADO) $0.90
Location: 33 Prev | Next Part: 4225062 *Qty: 1 TIE ROD (TIRANTE) $68.02
Location: 34 Prev | Next Part: 8900305 *Qty: 2 PIN (SPINA) $0.90
Location: 35 Prev | Next Part: 4225074 *Qty: 1 PIN (PERNO) Call
Location: 36 Prev | Next Part: 4236013 *Qty: 1 TIE ROD (96 TIRANTE ACCELERATORE) $158.96
Location: 36 Prev | Next Part: 4236013 *Qty: 1 TIE ROD (71 TIRANTE ACCELERATORE) $158.96

* Quantity shown indicates the number of pieces used in the diagram.
