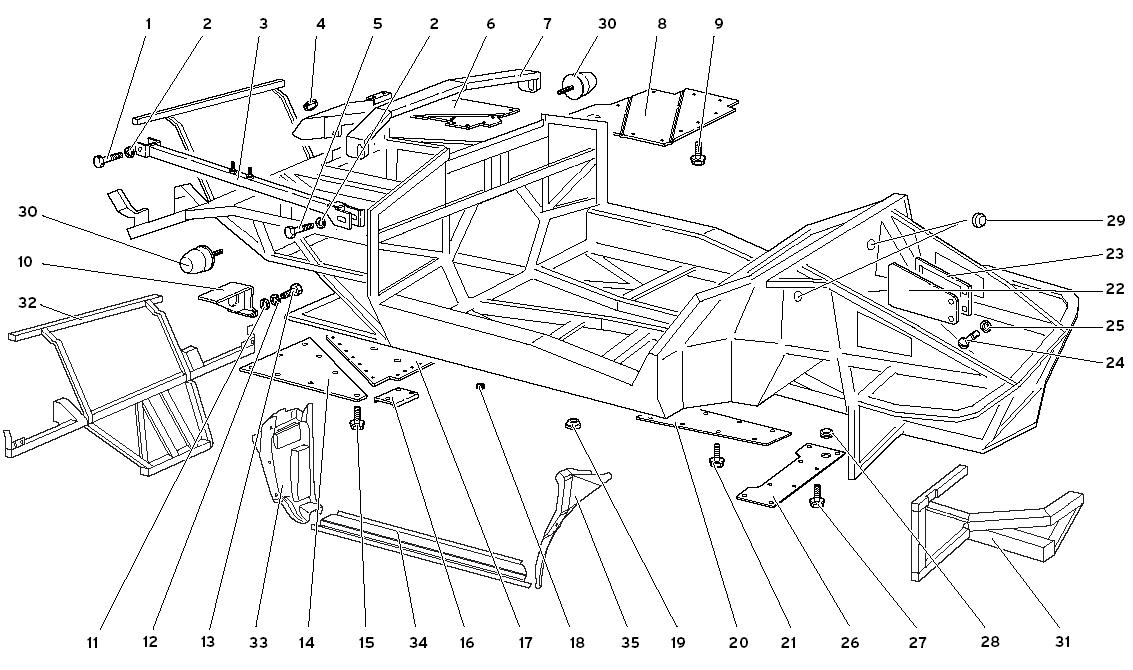

FRAME ELEMENTS

Go to Split View

FRAME ELEMENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8100854 *Qty: 2 SCREW (VITE) $1.74
Location: 2 Prev | Next Part: 8400820 *Qty: 4 WASHER (RONDELLA) $17.42
Location: 3 Prev | Next Part: 4133595 *Qty: 1 LEFT CROSSRAIL (TRAVERSA SX) $424.55
Location: 3 Prev | Next Part: 4133596 *Qty: 1 RIGHT CROSSRAIL (TRAVERSA DX) $424.55
Location: 4 Prev | Next Part: 8611606 *Qty: 2 RUBBER RING (ANELLO GOMMA) $1.59
Location: 5 Prev | Next Part: 8700846 *Qty: 2 SCREW (VITE) $2.13
Location: 6 Prev | Next Part: 9411523 *Qty: 1 LEFT SUPPORT (SUPPORTO SX) $645.22
Location: 6 Prev | Next Part: 9411522 *Qty: 1 RIGTH SUPPORT (SUPPORTO DX) $645.22
Location: 7 Prev | Next Part: 4131512 *Qty: 1 CROSSRAIL (TRAVERSA) $424.55
Location: 8 Prev | Next Part: 4135417 *Qty: 1 PANEL (PANNELLO) $215.48
Location: 9 Prev | Next Part: 8700660 *Qty: 11 SCREW (VITE) $0.90
Location: 10 Prev | Next Part: 4137167 *Qty: 1 SUPPORT (SUPPORTO SERBATOIO BENZINA) Call
Location: 11 Prev | Next Part: 8400801 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 12 Prev | Next Part: 8410820 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 13 Prev | Next Part: 8100812 *Qty: 2 SCREW (VITE) $0.90
Location: 14 Prev | Next Part: 4135426 *Qty: 1 PANEL (PANNELLO) $87.88
Location: 15 Prev | Next Part: 8700660 *Qty: 8 SCREW (VITE) $0.90
Location: 16 Prev | Next Part: 4133887 *Qty: 2 REINFORCEMENT (RINFORZO) $124.99
Location: 17 Prev | Next Part: 4135423 *Qty: 1 PANEL (PANNELLO) $258.55
Location: 18 Prev | Next Part: 4134333 *Qty: 4 PLUG (TAPPO) $0.90
Location: 19 Prev | Next Part: 4131483 *Qty: 8 PLUG (TAPPO) Call
Location: 20 Prev | Next Part: 4130445 *Qty: 1 PANEL (PANNELLO) $292.87
Location: 21 Prev | Next Part: 8700660 *Qty: 8 SCREW (VITE) $0.90
Location: 22 Prev | Next Part: 4130206 *Qty: 1 RIGTH PANEL (PANNELLO ISPEZIONE ALZAFARI DX) $87.88
Location: 22 Prev | Next Part: 4130207 *Qty: 1 LEFT PANEL (PANNELLO ISPEZIONE ALZAFARI SX) $87.88
Location: 23 Prev | Next Part: 9490205 *Qty: 1 LEFT GASKET (GUARNIZIONE SX) Call
Location: 23 Prev | Next Part: 9490204 *Qty: 1 RIGTH GASKET (GUARNIZIONE DX) Call
Location: 24 Prev | Next Part: 4131085 *Qty: 4 PIN (PERNO AGGANCIO RAPIDO) Call
Location: 25 Prev | Next Part: 7014263 *Qty: 4 WASHER (RONDELLA) Call
Location: 26 Prev | Next Part: 4132486 *Qty: 1 PANEL (PANNELLO) $258.55
Location: 27 Prev | Next Part: 8700660 *Qty: 8 SCREW (VITE) $0.90
Location: 28 Prev | Next Part: 8612503 *Qty: 1 RUBBER RING (ANELLO GOMMA) $14.47
Location: 29 Prev | Next Part: 8931407 *Qty: 2 PLUG (TAPPO) $1.24
Location: 30 Prev | Next Part: 4137362 *Qty: 2 RUBBER PAD (96 TAMPONE GOMMA) $768.69
Location: 30 Prev | Next Part: 4137362 *Qty: 2 RUBBER PAD (71 TAMPONE GOMMA) $768.69
Location: 31 Prev | Next Part: 4137964 *Qty: 1 FRONT RH FRAME (TELAIETTO ANT. DX) $810.75
Location: 31 Prev | Next Part: 4137963 *Qty: 1 FRONT LH FRAME (TELAIETTO ANT. SX) $810.75
Location: 32 Prev | Next Part: 41004924 *Qty: 1 REAR FRAME (TELAIETTO POSTERIORE) $9,950.25
Location: 33 Prev | Next Part: 9409104 *Qty: 1 REAR LH COVERING (RIVESTIMENTO SX POSTERIORE) Call
Location: 33 Prev | Next Part: 9409103 *Qty: 1 REAR RH COVERING (RIVESTIMENTO DX POSTERIORE) Call
Location: 34 Prev | Next Part: 9409135 *Qty: 1 MIDDLE LH COVERING (RIVESTIMENTO SX CENTRALE) $113.19
Location: 34 Prev | Next Part: 9409134 *Qty: 1 MIDDLE RH COVERING (RIVESTIMENTO DX CENTRALE) $113.19
Location: 35 Prev | Next Part: 9409137 *Qty: 1 FRONT LH COVERING (RIVESTIMENTO SX ANTERIORE) $509.26
Location: 35 Prev | Next Part: 9409136 *Qty: 1 FRONT RH COVERING (RIVESTIMENTO DX ANTERIORE) $509.26

* Quantity shown indicates the number of pieces used in the diagram.
