LIFTING SYSTEM

Go to Split View

LIFTING SYSTEM

in cart
Go to Split View

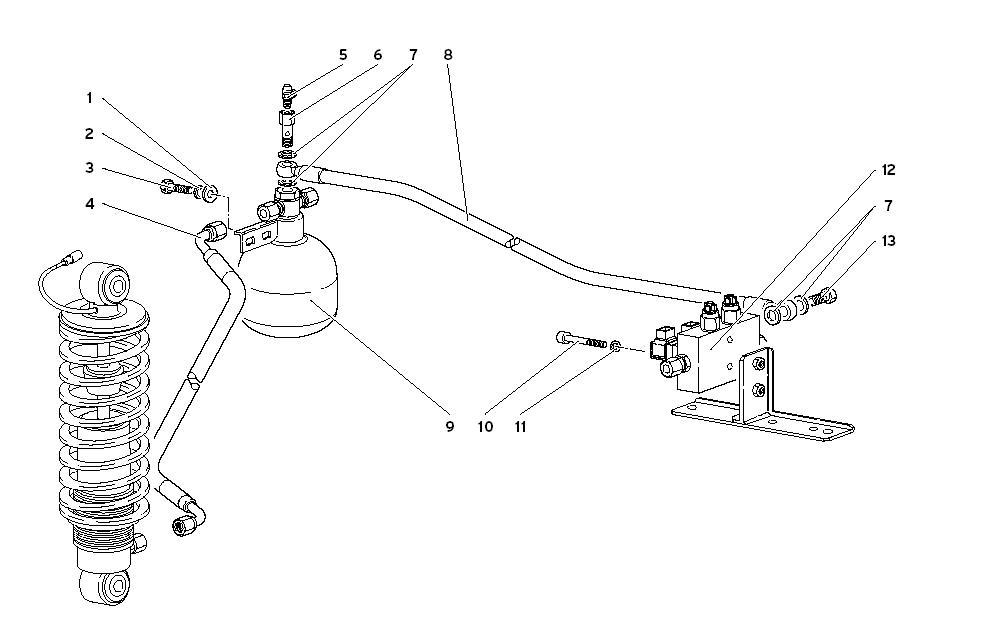

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8400607 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 2 Prev | Next Part: 8410601 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 3 Prev | Next Part: 8100618 *Qty: 2 SCREW (VITE) $0.90
Location: 4 Prev | Next Part: 51001598 *Qty: 2 PIPE (76 TUBO) $136.27
Location: 4 Prev | Next Part: 5138204 *Qty: 2 PIPE (TUBO) $209.25
Location: 4 Prev | Next Part: 51001598 *Qty: 2 PIPE (74 TUBO) $136.27
Location: 5 Prev | Next Part: 5136497 *Qty: 1 BLEEDING SCREW (VITE SPURGO) $36.81
Location: 6 Prev | Next Part: 5136496 *Qty: 1 SCREW (VITE FORATA) $53.89
Location: 7 Prev | Next Part: 5133246 *Qty: 4 WASHER (RONDELLA) $13.14
Location: 8 Prev | Next Part: 5134580 *Qty: 1 PIPE (TUBO) $1,493.36
Location: 9 Prev | Next Part: 5133242 *Qty: 1 RESERVOIR (SERBATOIO) $2,410.71
Location: 10 Prev | Next Part: 8700608 *Qty: 2 SCREW (VITE) $0.90
Location: 11 Prev | Next Part: 8410602 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 12 Prev | Next Part: 5134571 *Qty: 1 ELECTRO-VALVE (ELETTROVALVOLA) $5,859.73
Location: 13 Prev | Next Part: 5133245 *Qty: 1 SCREW (VITE FORATA) $223.44

* Quantity shown indicates the number of pieces used in the diagram.
