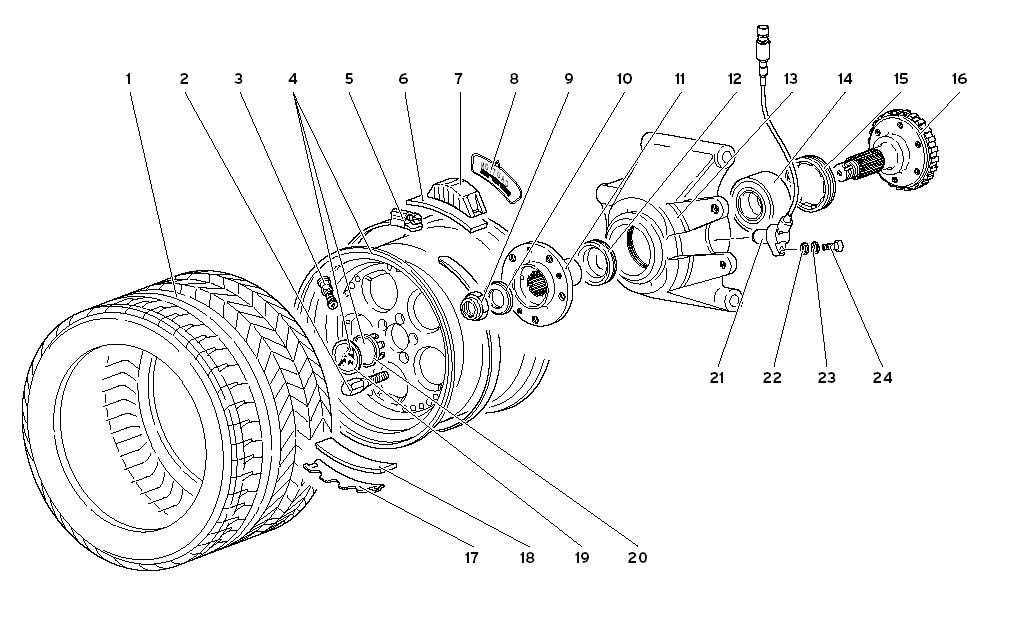

REAR WHEEL AND HUB CARRIER

Go to Split View

REAR WHEEL AND HUB CARRIER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 5334365 *Qty: 2 REAR TYRE (PNEUMATICO POST. 335/30 ZR 18) Call
Location: 2 Prev | Next Part: 51001075 *Qty: 10 STUD (COLONNETTA) $34.15
Location: 3 Prev | Next Part: 5330906 *Qty: 2 VALVE (VALVOLA) $40.48
Location: 4 Prev | Next Part: 52001025 *Qty: 2 REAR RIM (CERCHIO RUOTA POSTERIORE) $2,210.56
Location: 5 Prev | Next Part: 5131893 *Qty: 2 STRAP (FASCETTA) Call
Location: 6 Prev | Next Part: 5131894 *Qty: 2 SHIELD (PROTEZIONE) $2.62
Location: 7 Prev | Next Part: 5136176 *Qty: 2 LOW TYRE P. SENSOR (TRASMETTITORE) $1,145.06
Location: 8 Prev | Next Part: 5132551 *Qty: 2 PLATE (TARGHETTA) $4.06
Location: 9 Prev | Next Part: 5231418 *Qty: 2 NUT (DADO) $242.79
Location: 10 Prev | Next Part: 8403103 *Qty: 2 WASHER (RONDELLA) $12.34
Location: 11 Prev | Next Part: 52001022 *Qty: 2 HUB (MOZZO) $424.20
Location: 12 Prev | Next Part: 5238073 *Qty: 2 SPACER (DISTANZIALE) $398.08
Location: 13 Prev | Next Part: 52000980 *Qty: 1 RIGHT HUB HOUSING (PORTAMOZZO DX) $1,370.22
Location: 13 Prev | Next Part: 52000979 *Qty: 1 LEFT HUB HOUSING (PORTAMOZZO SX) $1,370.22
Location: 14 Prev | Next Part: 8514501 *Qty: 2 BEARING (CUSCINETTO) $120.12
Location: 15 Prev | Next Part: 5233369 *Qty: 2 PLUG (GHIERA) $248.26
Location: 16 Prev | Next Part: 52002593 *Qty: 2 FLANGE (FLANGIA) $2,126.60
Location: 17 Prev | Next Part: 5131892 *Qty: 2 BALANCE WEIGHT (CONTRAPPESO) $32.51
Location: 18 Prev | Next Part: 5131895 *Qty: 2 SHIELD (PROTEZIONE) $3.35
Location: 19 Prev | Next Part: 5236033 *Qty: 2 ORNAMENT (FREGIO) Call
Location: 20 Prev | Next Part: 5236021 *Qty: 2 SUPPORT (SUPPORTO) Call
Location: 21 Prev | Next Part: 51001139 *Qty: 2 TYRE REVOLUT. SENS (SENSORE GIRI RUOTA LAVOR.) $261.10
Location: 22 Prev | Next Part: 8400606 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 23 Prev | Next Part: 8410611 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 24 Prev | Next Part: 8100603 *Qty: 2 SCREW (VITE) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
