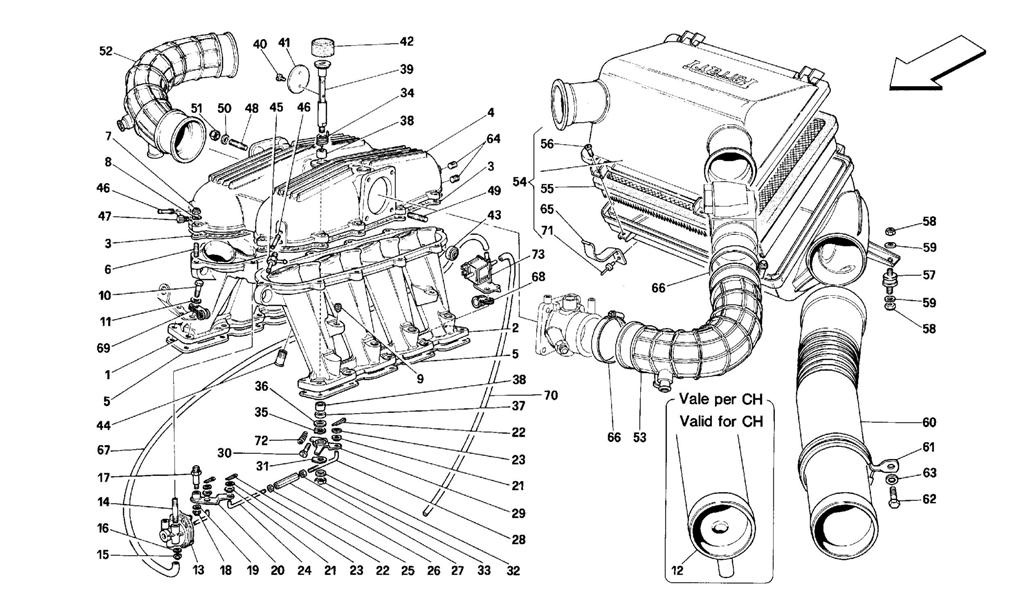

MANIFOLDS AND AIR INTAKE -MOTRONIC 2.5-

Location Part # Quantity* Description Price Add To Cart
- 144508 1 R.H. complete suction manifold $3,816.28
- 144509 1 L.H. complete suction manifold $3,029.71
- 145365 1 Suction manifolds cover assy $2,815.35
3 138045 2 Gasket $99.61
5 138029 2 Gasket $84.43
6 11500321 20 Stud bolt Unavailable
7 101239 20 Nut $2.56
8 12601274 20 Washer $0.90
9 13525770 4 Heli-coil Unavailable
10 16043724 20 Screw Unavailable
11 12601374 20 Washer $0.90
12 142492 1 Tube -Valid for CH $511.78
13 136815 1 Pneumatic capsule $48.29
14 11001721 2 Stud bolt $9.72
15 169180 2 Nut Unavailable
16 14496301 2 Washer $1.91
17 137277 1 Lever stud bolt $73.06
18 169180 1 Nut Unavailable
19 12637824 1 Washer $0.90
20 137135 1 Lever $48.60
21 137271 3 Bush Unavailable
22 10794501 3 Split pin Unavailable
23 14496201 3 Washer Unavailable
24 137270 1 L.H. thread tie rod $33.43
25 10791111 1 L.H. thread nut Unavailable
26 137273 1 Sleeve $4.41
27 10794011 1 Nut Unavailable
28 137276 1 R.H. thread tie rod $41.39
29 137134 1 Throttle lever $39.69
30 153399 1 Register screw Unavailable
31 113566 1 Safety plate $4.16
32 137126 1 Washer $1.87
33 16102314 1 Nut Unavailable
34 138169 1 Spring $9.38
35 11065676 1 Seeger Unavailable
36 136921 1 Washer Unavailable
37 129269 2 Seal ring $11.81
38 136922 2 Bush $2.11
39 138173 1 Throttle shaft $201.38
40 136923 2 Screw Unavailable
41 137280 1 Throttle $57.81
42 139373 1 Cap Unavailable
43 100424 2 Ball joint Unavailable
44 113636 2 Union $27.57
45 128959 1 Multipleunion $47.56
46 117348 2 Union $9.11
47 128016 1 Union $14.29
48 13541124 4 Upper fasteningstud bolt Unavailable
49 13541124 4 Lower fastening stud bolt Unavailable
50 14496424 8 Washer Superseded
51 102948 8 Nut Superseded
52 136317 1 R.H. sleeve $85.30
53 136318 1 L.H. sleeve $88.65
54 141862 1 Complete air inlet - Valid for cars with catalyst $1,273.46
54 137993 1 Complete air inlet - Not for cars with catalyst $762.81
55 155871 1 Air filter $69.43
56 10376777 4 Screw Unavailable
57 102947 3 Pad $20.69
58 102741 6 Nut $0.90
59 14496424 6 Washer Superseded
60 143950 1 Air inlet connection pipe -Valid for cars catalyst and 77DB - Not for USA and CH Unavailable
61 140653 1 Clamp $12.42
62 10902024 1 Screw $0.90
63 11193279 1 Washer Unavailable
64 141563 4 Cap - Not for cars catalyst $2.11
65 139550 2 Spring $10.03
66 12176490 4 Clamp Superseded
67 128907 1 Pneumatic capsule to solenoid valve pipe Unavailable
68 10450590 1 R.H. bracket Unavailable
68 10450490 1 L.H. bracket Unavailable
69 10450290 2 Bracket $5.93
70 135959 1 Pipe from solenoid valve to 3-way union $13.76
71 14640891 2 Rivet Unavailable
72 153400 1 Spring $16.85
73 111704 1 Solenoid valve $315.75

* Quantity shown indicates the number of pieces used in the diagram.
