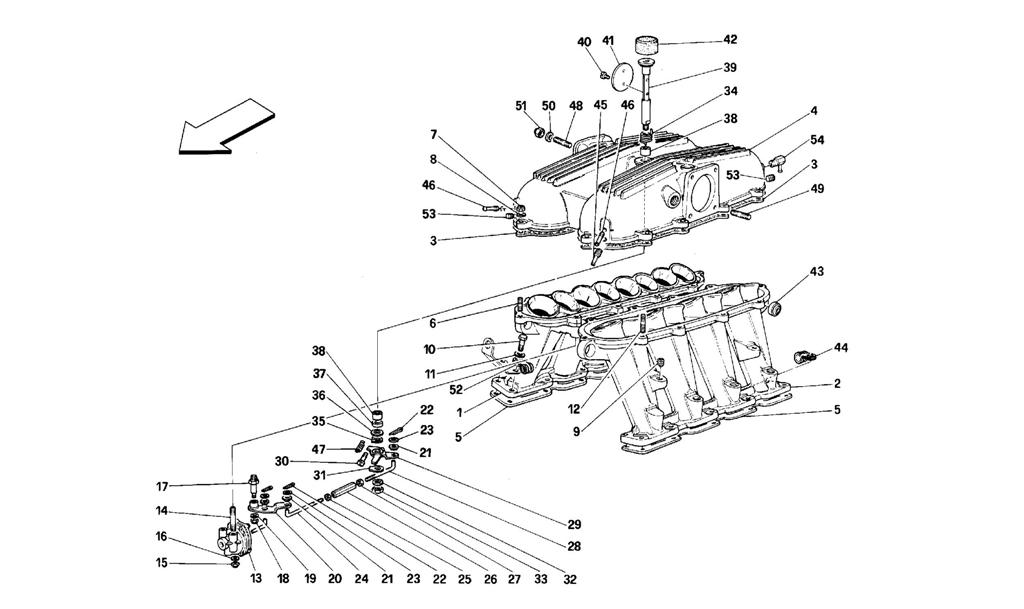

MANIFOLDS AND COVER -MOTRONIC 2.7-

Go to Split View

MANIFOLDS AND COVER -MOTRONIC 2.7-

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 145216 *Qty: 1 Suction manifolds cover assy $1,873.00
Location: - Prev | Next Part: 149503 *Qty: 1 R.H. complete suctionmanifold $2,038.66
Location: - Prev | Next Part: 149504 *Qty: 1 L.H. complete suction manifold $2,038.66
Location: 3 Prev | Next Part: 138045 *Qty: 2 Gasket $61.12
Location: 5 Prev | Next Part: 138029 *Qty: 2 Gasket $52.63
Location: 6 Prev | Next Part: 11500321 *Qty: 18 Stud bolt $0.90
Location: 7 Prev | Next Part: 101239 *Qty: 20 Nut $1.56
Location: 8 Prev | Next Part: 12601274 *Qty: 20 Washer $0.90
Location: 9 Prev | Next Part: 13525770 *Qty: 4 Heli-coil $0.90
Location: 10 Prev | Next Part: 16043724 *Qty: 20 Screw $0.90
Location: 11 Prev | Next Part: 12601374 *Qty: 20 Washer $0.90
Location: 12 Prev | Next Part: 143307 *Qty: 2 Stud bolt $0.90
Location: 13 Prev | Next Part: 136815 *Qty: 1 Pneumatic capsule $37.74
Location: 14 Prev | Next Part: 11001721 *Qty: 2 Stud bolt $6.61
Location: 15 Prev | Next Part: 169180 *Qty: 2 Nut $0.90
Location: 16 Prev | Next Part: 14496301 *Qty: 2 Washer $0.95
Location: 17 Prev | Next Part: 137277 *Qty: 1 Lever stud bolt $50.85
Location: 18 Prev | Next Part: 169180 *Qty: 1 Nut $0.90
Location: 19 Prev | Next Part: 10730021 *Qty: 1 Washer $0.90
Location: 20 Prev | Next Part: 137135 *Qty: 1 Lever $35.91
Location: 21 Prev | Next Part: 137271 *Qty: 3 Bush $2.83
Location: 22 Prev | Next Part: 10794501 *Qty: 3 Split pin $0.90
Location: 23 Prev | Next Part: 14496201 *Qty: 3 Washer $0.90
Location: 24 Prev | Next Part: 137270 *Qty: 1 L.H. thread tie rod $27.90
Location: 25 Prev | Next Part: 10791111 *Qty: 1 L.H. thread nut Call
Location: 26 Prev | Next Part: 137273 *Qty: 1 Sleeve $3.08
Location: 27 Prev | Next Part: 10794011 *Qty: 1 Nut $0.90
Location: 28 Prev | Next Part: 137276 *Qty: 1 R.H. thread tie rod $27.90
Location: 29 Prev | Next Part: 154270 *Qty: 1 Throttle lever $12.30
Location: 30 Prev | Next Part: 153399 *Qty: 1 Register screw $7.73
Location: 31 Prev | Next Part: 113566 *Qty: 1 Safety plate $2.36
Location: 32 Prev | Next Part: 137126 *Qty: 1 Washer $1.36
Location: 33 Prev | Next Part: 16102314 *Qty: 1 Nut $0.90
Location: 34 Prev | Next Part: 138169 *Qty: 1 Spring $6.94
Location: 35 Prev | Next Part: 11065676 *Qty: 1 Seeger $0.90
Location: 36 Prev | Next Part: 136921 *Qty: 1 Washer $0.90
Location: 37 Prev | Next Part: 129269 *Qty: 2 Seal ring $7.52
Location: 38 Prev | Next Part: 136922 *Qty: 2 Bush $1.67
Location: 39 Prev | Next Part: 138173 *Qty: 1 Throttle shaft $148.84
Location: 40 Prev | Next Part: 136923 *Qty: 2 Screw $0.90
Location: 41 Prev | Next Part: 137280 *Qty: 1 Throttle $42.71
Location: 42 Prev | Next Part: 139373 *Qty: 1 Cap $12.61
Location: 43 Prev | Next Part: 100424 *Qty: 2 Ball joint Call
Location: 44 Prev | Next Part: 10450690 *Qty: 2 Bracket $0.90
Location: 45 Prev | Next Part: 113652 *Qty: 1 Union Call
Location: 46 Prev | Next Part: 117348 *Qty: 2 Union $7.95
Location: 47 Prev | Next Part: 153400 *Qty: 1 Spring $12.46
Location: 48 Prev | Next Part: 13541124 *Qty: 4 Upper fastening stud bolt $7.16
Location: 49 Prev | Next Part: 13541124 *Qty: 4 Lower fastening stud bolt $7.16
Location: 50 Prev | Next Part: 14496424 *Qty: 8 Washer Superseded
Location: 51 Prev | Next Part: 101239 *Qty: 8 Nut $1.56
Location: 52 Prev | Next Part: 10450590 *Qty: 2 Bracket $1.93
Location: 53 Prev | Next Part: 141563 *Qty: 3 Plug $1.61
Location: 54 Prev | Next Part: 142511 *Qty: 2 Union $2.23

* Quantity shown indicates the number of pieces used in the diagram.
