EXHAUST SYSTEM -NOT FOR CARS WITH CATALYSTS AND 77DB

Go to Split View

EXHAUST SYSTEM -NOT FOR CARS WITH CATALYSTS AND 77DB

in cart
Go to Split View

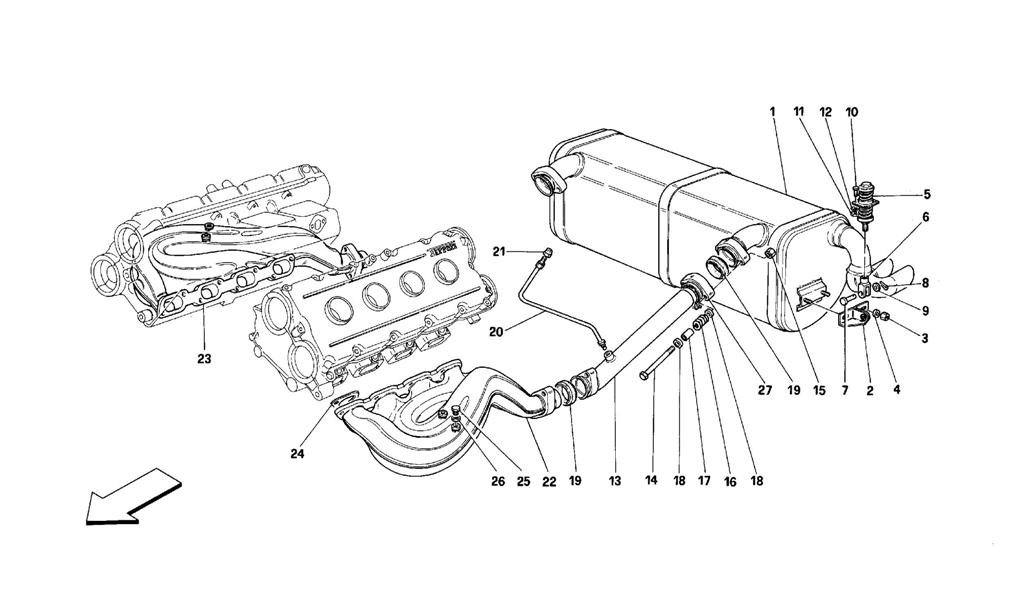

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 138887 *Qty: 1 Exhaust silencer $1,394.07
Location: 2 Prev | Next Part: 139329 *Qty: 2 Bracket $29.32
Location: 3 Prev | Next Part: 114748 *Qty: 4 Nut $0.90
Location: 4 Prev | Next Part: 10519624 *Qty: 4 Washer $0.90
Location: 5 Prev | Next Part: 139180 *Qty: 2 Pad Call
Location: 6 Prev | Next Part: 10007871 *Qty: 2 Fork $17.31
Location: 7 Prev | Next Part: 10050814 *Qty: 2 Pin $2.93
Location: 8 Prev | Next Part: 10734301 *Qty: 2 Split pin $0.90
Location: 9 Prev | Next Part: 10519624 *Qty: 2 Washer $0.90
Location: 10 Prev | Next Part: 10977624 *Qty: 8 Screw $0.90
Location: 11 Prev | Next Part: 15896470 *Qty: 8 Nut $0.90
Location: 12 Prev | Next Part: 127493 *Qty: 8 Washer $0.90
Location: 13 Prev | Next Part: 141006 *Qty: 2 Extension between manifold and silencer Call
Location: 14 Prev | Next Part: 137431 *Qty: 8 Screw $10.67
Location: 15 Prev | Next Part: 114748 *Qty: 8 Nut $0.90
Location: 16 Prev | Next Part: 111743 *Qty: 8 Spring $16.46
Location: 17 Prev | Next Part: 114749 *Qty: 8 Spacer $4.41
Location: 18 Prev | Next Part: 128010 *Qty: 16 Washer $3.30
Location: 19 Prev | Next Part: 154984 *Qty: 4 Gasket $9.29
Location: 20 Prev | Next Part: 139768 *Qty: 1 CO drawing R.H. pipe $204.75
Location: 20 Prev | Next Part: 139769 *Qty: 1 CO drawing L.H. pipe $93.73
Location: 21 Prev | Next Part: 150595 *Qty: 2 Pipe nut $1.02
Location: 22 Prev | Next Part: 136276 *Qty: 1 L.H. exhaust manifold $1,404.78
Location: 23 Prev | Next Part: 136275 *Qty: 1 R.H. exhaust manifold $1,404.78
Location: 24 Prev | Next Part: 138076 *Qty: 8 Gasket $11.63
Location: 25 Prev | Next Part: 110860 *Qty: 8 Cap $16.30
Location: 26 Prev | Next Part: 10298460 *Qty: 8 Gasket $0.90
Location: 27 Prev | Next Part: 141874 *Qty: 2 Stub pipe $375.14

* Quantity shown indicates the number of pieces used in the diagram.
