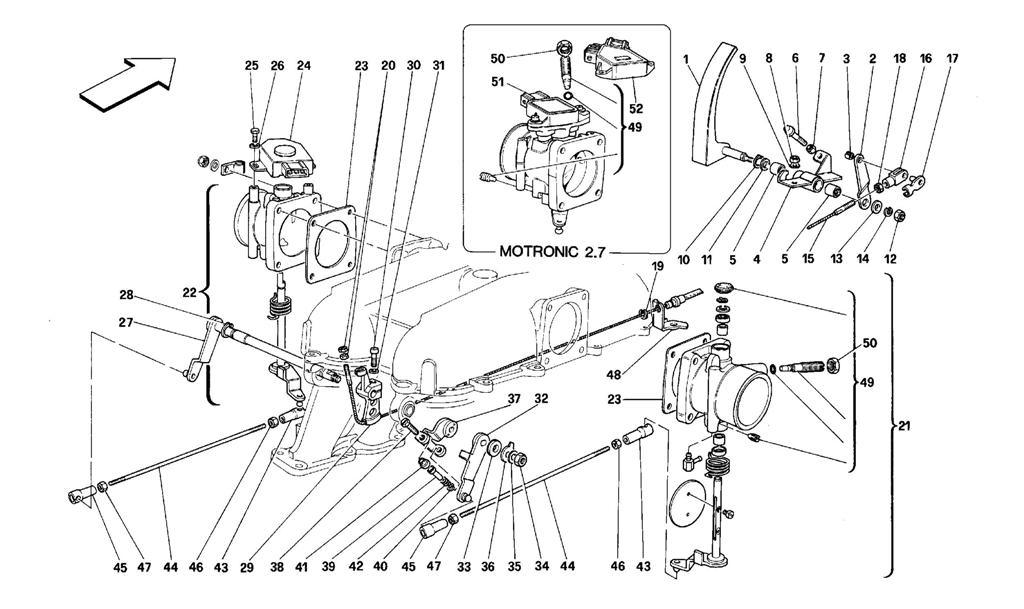

THROTTLE HOUSING AND LINKAGE

Go to Split View

THROTTLE HOUSING AND LINKAGE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 137203 *Qty: 1 Accelerator pedal $47.69
Location: 2 Prev | Next Part: 133751 *Qty: 1 Accelerator control lever $5.52
Location: 3 Prev | Next Part: 132212 *Qty: 1 Bushing $28.94
Location: 4 Prev | Next Part: 115396 *Qty: 1 Accelerator pedal support $58.74
Location: 5 Prev | Next Part: 101677 *Qty: 2 Bearing $2.18
Location: 6 Prev | Next Part: 105232 *Qty: 1 Pedal adjustment push rod $5.35
Location: 7 Prev | Next Part: 16102314 *Qty: 1 Nut Unavailable
Location: 8 Prev | Next Part: 16100821 *Qty: 2 Nut Unavailable
Location: 9 Prev | Next Part: 127496 *Qty: 2 Washer $0.90
Location: 10 Prev | Next Part: 11066075 *Qty: 1 Seeger Unavailable
Location: 11 Prev | Next Part: 108576 *Qty: 1 Washer $1.54
Location: 12 Prev | Next Part: 16100821 *Qty: 1 Nut Unavailable
Location: 13 Prev | Next Part: 10519624 *Qty: 1 Washer Unavailable
Location: 14 Prev | Next Part: 127496 *Qty: 1 Washer $0.90
Location: 15 Prev | Next Part: 138429 *Qty: 1 Accelerator control cable $68.64
Location: 16 Prev | Next Part: 132290 *Qty: 1 Fork $18.77
Location: 17 Prev | Next Part: 132291 *Qty: 1 Pin $2.97
Location: 18 Prev | Next Part: 10725011 *Qty: 1 Nut $1.86
Location: 19 Prev | Next Part: 11087974 *Qty: 1 Ring $0.90
Location: 20 Prev | Next Part: 10725011 *Qty: 2 Nut $1.86
Location: 21 Prev | Next Part: 142498 *Qty: 1 Complete R.H. throttle body -Valid for M. 2.7 $667.18
Location: 21 Prev | Next Part: 136958 *Qty: 1 Complete R.H. throttle body -Not for M. 2.7 $1,270.12
Location: 22 Prev | Next Part: 142499 *Qty: 1 Complete L.H. throttle body -Valid for M. 2.7 -Not for F.E. $667.18
Location: 22 Prev | Next Part: 155997 *Qty: 1 Complete L.H. throttle body -Valid for M. 2.7 -Valid for F.E. $1,124.16
Location: 22 Prev | Next Part: 136959 *Qty: 1 Complete L.H. throttle body -Not for M. 2.7 $671.05
Location: 23 Prev | Next Part: 136919 *Qty: 2 Gasket $3.33
Location: 24 Prev | Next Part: 130974 *Qty: 1 Micro-switch-Not for M. 2.7 $453.22
Location: 25 Prev | Next Part: 10444521 *Qty: 2 Screw -For M. 2.7 Q.ty 4- Unavailable
Location: 26 Prev | Next Part: 12601070 *Qty: 2 Washer -For M. 2.7 Q.ty 4 Unavailable
Location: 27 Prev | Next Part: 139925 *Qty: 1 Throttle control shaft $161.97
Location: 28 Prev | Next Part: 11065976 *Qty: 2 Ring Unavailable
Location: 29 Prev | Next Part: 139923 *Qty: 1 Throttle control eccentric $89.45
Location: 30 Prev | Next Part: 14432221 *Qty: 1 Screw Unavailable
Location: 31 Prev | Next Part: 12639701 *Qty: 1 Washer Unavailable
Location: 32 Prev | Next Part: 139929 *Qty: 1 Driven lever $38.67
Location: 33 Prev | Next Part: 137053 *Qty: 1 Spacer $5.73
Location: 34 Prev | Next Part: 16102314 *Qty: 1 Nut Unavailable
Location: 35 Prev | Next Part: 13550301 *Qty: 1 Washer Unavailable
Location: 36 Prev | Next Part: 113566 *Qty: 1 Safety plate $2.76
Location: 37 Prev | Next Part: 138358 *Qty: 1 Leading lever $60.75
Location: 38 Prev | Next Part: 122909 *Qty: 1 Screw $5.35
Location: 39 Prev | Next Part: 122913 *Qty: 1 Pin $15.13
Location: 40 Prev | Next Part: 11087576 *Qty: 1 Ring $5.65
Location: 41 Prev | Next Part: 122910 *Qty: 1 Cylindric nut $9.94
Location: 42 Prev | Next Part: 122914 *Qty: 1 Spring $12.54
Location: 43 Prev | Next Part: 173999 *Qty: 2 R.H. thread spheric head $7.51
Location: 44 Prev | Next Part: 139551 *Qty: 2 Tie rod $9.40
Location: 45 Prev | Next Part: 105619 *Qty: 2 L.H. thread spheric head $112.93
Location: 46 Prev | Next Part: 15896470 *Qty: 2 R.H. thread nut $0.90
Location: 47 Prev | Next Part: 105586 *Qty: 2 L.H. thread nut $4.72
Location: 48 Prev | Next Part: 138422 *Qty: 1 Bracket $56.39
Location: 49 Prev | Next Part: 70000610 *Qty: 2 Throttle body repair kit $128.31
Location: 50 Prev | Next Part: 11691311 *Qty: 2 Nut Unavailable
Location: 51 Prev | Next Part: 142434 *Qty: 2 Potentiometer for throttle valve -Valid for M. 2.7 -For F.E. R.H. Q.ty 1 $339.89
Location: 52 Prev | Next Part: 155980 *Qty: 1 L.H. potentiometer for throttle valve -Valid for M. 2.7 -Valid for F.E. $150.01

* Quantity shown indicates the number of pieces used in the diagram.
