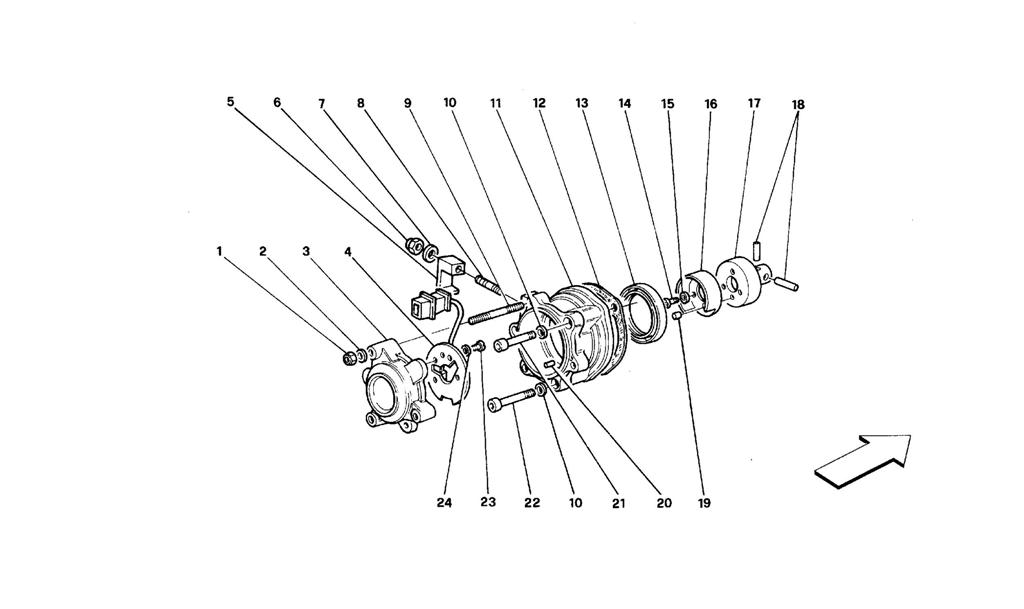

ENGINE IGNITION

Go to Split View

ENGINE IGNITION

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 169180 *Qty: 3 Nut Unavailable
Location: 2 Prev | Next Part: 10519377 *Qty: 3 Washer Unavailable
Location: 3 Prev | Next Part: 137510 *Qty: 1 Cover $60.94
Location: 4 Prev | Next Part: 146312 *Qty: 1 Phase sensor $130.33
Location: 5 Prev | Next Part: 144805 *Qty: 1 Support $96.62
Location: 6 Prev | Next Part: 15896470 *Qty: 1 Nut $0.90
Location: 7 Prev | Next Part: 11199279 *Qty: 1 Washer Unavailable
Location: 8 Prev | Next Part: 11001221 *Qty: 1 Stud bolt $2.76
Location: 9 Prev | Next Part: 13539824 *Qty: 3 Stud bolt $13.06
Location: 10 Prev | Next Part: 12604279 *Qty: 3 Washer Unavailable
Location: 11 Prev | Next Part: 137508 *Qty: 1 Phase sensor support $103.46
Location: 12 Prev | Next Part: 150076 *Qty: 1 Support gasket $15.60
Location: 13 Prev | Next Part: 149917 *Qty: 1 Gasket $25.35
Location: 14 Prev | Next Part: 10374721 *Qty: 3 Screw Unavailable
Location: 15 Prev | Next Part: 12604070 *Qty: 3 Washer Unavailable
Location: 17 Prev | Next Part: 133378 *Qty: 1 Camshaft joint $446.34
Location: 18 Prev | Next Part: 132355 *Qty: 2 Pin $66.52
Location: 19 Prev | Next Part: 10486110 *Qty: 1 Pin $13.80
Location: 20 Prev | Next Part: 10331010 *Qty: 1 Pin Unavailable
Location: 21 Prev | Next Part: 14305821 *Qty: 1 Screw Unavailable
Location: 22 Prev | Next Part: 14305920 *Qty: 2 Screw Unavailable
Location: 23 Prev | Next Part: 14418131 *Qty: 2 Screw Unavailable
Location: 24 Prev | Next Part: 12600479 *Qty: 2 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
