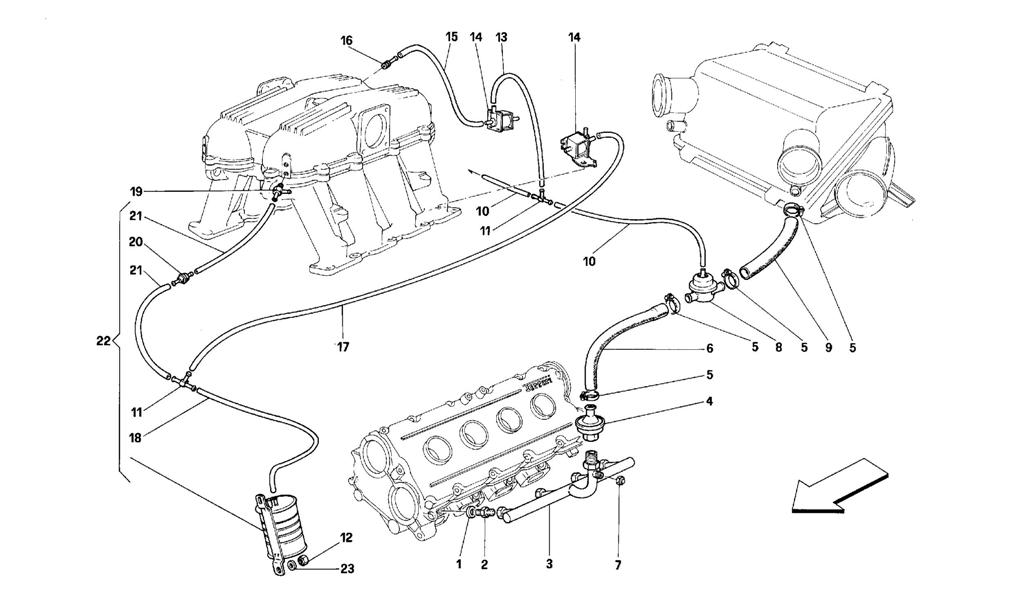

AIR INJECTION DEVICE -FOR CARS WITH CATALYST - MOTRONIC 2.5-

Go to Split View

AIR INJECTION DEVICE -FOR CARS WITH CATALYST - MOTRONIC 2.5-

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 10257060 *Qty: 8 Gasket $0.90
Location: 2 Prev | Next Part: 121718 *Qty: 8 Union $37.75
Location: 3 Prev | Next Part: 141195 *Qty: 2 Air inlet pipe $239.38
Location: 4 Prev | Next Part: 148494 *Qty: 2 Check valve $39.00
Location: 5 Prev | Next Part: 12180290 *Qty: 8 Screw collar Unavailable
Location: 6 Prev | Next Part: 133962 *Qty: 2 Air inlet sleeve $303.96
Location: 7 Prev | Next Part: 150595 *Qty: 2 Nut on air pipe union $1.02
Location: 8 Prev | Next Part: 147390 *Qty: 2 Cut-off valve $280.64
Location: 9 Prev | Next Part: 116787 *Qty: 2 Pipe from cut-off to air inlet $5.06
Location: 10 Prev | Next Part: 135959 *Qty: 2 3-ways pipe to cut-off $8.20
Location: 11 Prev | Next Part: 121793 *Qty: 2 Union $0.90
Location: 12 Prev | Next Part: 102948 *Qty: 2 Nut Superseded
Location: 13 Prev | Next Part: 118501 *Qty: 1 Pipe from solenoid valve to 3-ways $3.99
Location: 14 Prev | Next Part: 111704 *Qty: 2 Solenoid valve $182.70
Location: 15 Prev | Next Part: 115412 *Qty: 1 Pipe from plug to solenoid valve $4.11
Location: 16 Prev | Next Part: 117348 *Qty: 1 Union $7.95
Location: 17 Prev | Next Part: 135959 *Qty: 1 Pipe from solenoid valve to 3-ways $8.20
Location: 18 Prev | Next Part: 62660700 *Qty: 1 Pipe from 3-ways to vacuum tank $55.63
Location: 19 Prev | Next Part: 128959 *Qty: 1 Union $35.13
Location: 20 Prev | Next Part: 62507200 *Qty: 1 Single-acting valve $23.10
Location: 21 Prev | Next Part: 62660800 *Qty: 2 Pipe on single-acting valve $55.63
Location: 22 Prev | Next Part: 65942900 *Qty: 1 Vacuum tank with pipes and valve $581.46
Location: 23 Prev | Next Part: 10519424 *Qty: 2 Washer Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
