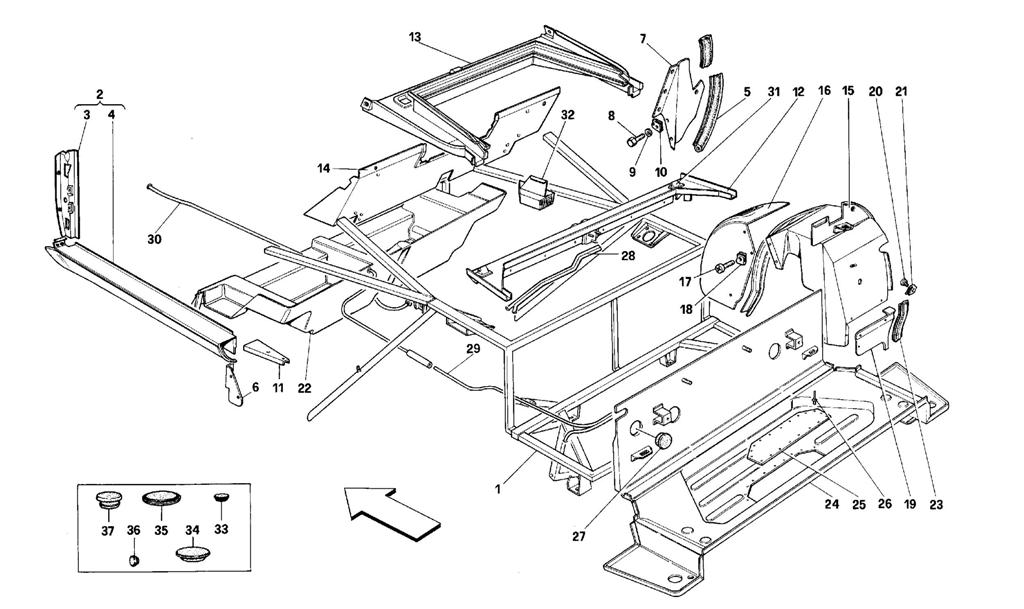

BODY SHELL: INNER ELEMENTS - REAR PART -CABRIOLET-

Go to Split View

BODY SHELL: INNER ELEMENTS - REAR PART -CABRIOLET-

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 142184 *Qty: 1 Rear frame -Valid for 4P - Valid for USA $3,662.53
Location: 1 Prev | Next Part: 146427 *Qty: 1 Rear frame -Valid for 4P - Valid for AUS Unavailable
Location: 1 Prev | Next Part: 146457 *Qty: 1 Rear frame -Valid for 4P - Valid for J Unavailable
Location: 1 Prev | Next Part: 147189 *Qty: 1 Rear frame -Valid for 4P -Valid for ZA and GB Unavailable
Location: 1 Prev | Next Part: 147216 *Qty: 1 Rear frame -Valid for 4P - Not for USA-CH-ZA-GB-J and AUS Unavailable
Location: 1 Prev | Next Part: 147941 *Qty: 1 Rear frame -Valid for 4P - Valid for CH Unavailable
Location: 2 Prev | Next Part: 62658400 *Qty: 1 R.H. door opening $457.36
Location: 2 Prev | Next Part: 62658500 *Qty: 1 L.H. door opening $457.36
Location: 3 Prev | Next Part: 62534100 *Qty: 1 R.H. seat for door hinge $26.88
Location: 3 Prev | Next Part: 62534200 *Qty: 1 L.H. seat for door hinge $55.20
Location: 5 Prev | Next Part: 61303400 *Qty: 2 Gasket $9.78
Location: 6 Prev | Next Part: 62670000 *Qty: 1 R.H. lower sheet $12.18
Location: 6 Prev | Next Part: 62830200 *Qty: 1 L.H. lower sheet $12.18
Location: 7 Prev | Next Part: 62680700 *Qty: 1 L.H. shield panel -Valid for not catalyst cars and USA 3P $94.82
Location: 7 Prev | Next Part: 62851100 *Qty: 1 L.H. shield panel -Valid for catalyst cars and USA 4P $62.95
Location: 7 Prev | Next Part: 62668100 *Qty: 1 R.H. shield panel $60.94
Location: 8 Prev | Next Part: 15924806 *Qty: 12 Screw Unavailable
Location: 9 Prev | Next Part: 12643724 *Qty: 12 Washer Superseded
Location: 10 Prev | Next Part: 14189776 *Qty: 12 Spring Unavailable
Location: 11 Prev | Next Part: 136756 *Qty: 1 Support for R.H. rear body side -Not for CH $9.20
Location: 11 Prev | Next Part: 136757 *Qty: 1 Support for L.H. rear body side -Not for CH $7.37
Location: 11 Prev | Next Part: 143945 *Qty: 1 Support for R.H. rear body side -Valid for CH $23.21
Location: 11 Prev | Next Part: 143946 *Qty: 1 Support for L.H. rear body side -Valid for CH $23.21
Location: 12 Prev | Next Part: 61869200 *Qty: 1 Union between luggage room and luggage engine $131.62
Location: 13 Prev | Next Part: 63228100 *Qty: 1 Seat for top -Valid for cars with rear belt with 3 fixing points -Valid for AUS $2,753.17
Location: 13 Prev | Next Part: 63521700 *Qty: 1 Seat for top -Valid for cars with rear belt with 3 fixing points - Not for AUS $1,788.93
Location: 13 Prev | Next Part: 62669300 *Qty: 1 Seat for top -Valid for cars with rear abdominal belt $1,270.30
Location: 14 Prev | Next Part: 62669900 *Qty: 1 Shield panel between passenger compartmente and engine -Not for USA 4P $203.21
Location: 14 Prev | Next Part: 62918900 *Qty: 1 Shield panel between passenger compartmente and engine -Valid for USA 4P $261.72
Location: 15 Prev | Next Part: 62822700 *Qty: 1 R.H. rear wheelhouse -Valid for CH $215.17
Location: 15 Prev | Next Part: 62916200 *Qty: 1 L.H. rear wheelhouse -Valid for F.E. $495.44
Location: 15 Prev | Next Part: 62637500 *Qty: 1 R.H. rear wheelhouse -Not for CH $458.31
Location: 15 Prev | Next Part: 62637600 *Qty: 1 L.H. rear wheelhouse -Not for F.E. $496.93
Location: 16 Prev | Next Part: 62608500 *Qty: 1 Front section for R.H. wheelhouse $1,158.57
Location: 16 Prev | Next Part: 62608600 *Qty: 1 Front section for L.H. wheelhouse $1,158.57
Location: 17 Prev | Next Part: 15903802 *Qty: 18 Screw Unavailable
Location: 18 Prev | Next Part: 60517200 *Qty: 18 Clip $3.67
Location: 19 Prev | Next Part: 61816100 *Qty: 1 L.H. rear gravel $28.94
Location: 19 Prev | Next Part: 61816200 *Qty: 1 R.H. rear gravel $28.94
Location: 20 Prev | Next Part: 15688075 *Qty: 6 Screw $0.90
Location: 21 Prev | Next Part: 40136707 *Qty: 6 Spring $1.64
Location: 22 Prev | Next Part: 62875400 *Qty: 1 Housing for rear seats -Valid for USA 4P $586.74
Location: 22 Prev | Next Part: 62667600 *Qty: 1 Housing for rear seats -Not for USA 4P $541.08
Location: 23 Prev | Next Part: 61816300 *Qty: 2 Gasket $1.86
Location: 24 Prev | Next Part: 62839000 *Qty: 1 Vertical panel and luggage bottom -Valid for 3P $515.91
Location: 24 Prev | Next Part: 62919000 *Qty: 1 Vertical panel and luggage bottom -Valid for 4P $793.45
Location: 25 Prev | Next Part: 60810000 *Qty: 1 Luggage bottom cover $43.64
Location: 26 Prev | Next Part: 60565600 *Qty: 12 Rivet Unavailable
Location: 27 Prev | Next Part: 14507387 *Qty: 1 Plug -Not for F.E.- $1.34
Location: 28 Prev | Next Part: 61307200 *Qty: 1 Cable for engine bonnet $95.20
Location: 29 Prev | Next Part: 61221100 *Qty: 1 Cable duct for trunk bonnet -Not for USA and J $92.04
Location: 29 Prev | Next Part: 61436600 *Qty: 1 Cable duct for trunk bonnet -Valid for USA and J $112.85
Location: 30 Prev | Next Part: 61344700 *Qty: 1 Front cable duct for trunk bonnet $42.91
Location: 31 Prev | Next Part: 60523700 *Qty: 2 Fixed hinge for trunk bonnet $45.81
Location: 32 Prev | Next Part: 61292800 *Qty: 1 R.H. wood stopper $53.37
Location: 32 Prev | Next Part: 61292900 *Qty: 1 L.H. wood stopper $53.37
Location: 33 Prev | Next Part: 112934 *Qty: 6 Plug to close EDP holes on the frame $9.58
Location: 34 Prev | Next Part: 60659400 *Qty: 6 Plug to close EDP hole underframe $2.23
Location: 35 Prev | Next Part: 14507187 *Qty: 4 Plug to close hole trunk room $8.19
Location: 36 Prev | Next Part: 14506587 *Qty: 2 Plug to close hole switch enclosure Unavailable
Location: 37 Prev | Next Part: 62446300 *Qty: 4 Plug to close hole under frame $22.79

* Quantity shown indicates the number of pieces used in the diagram.
