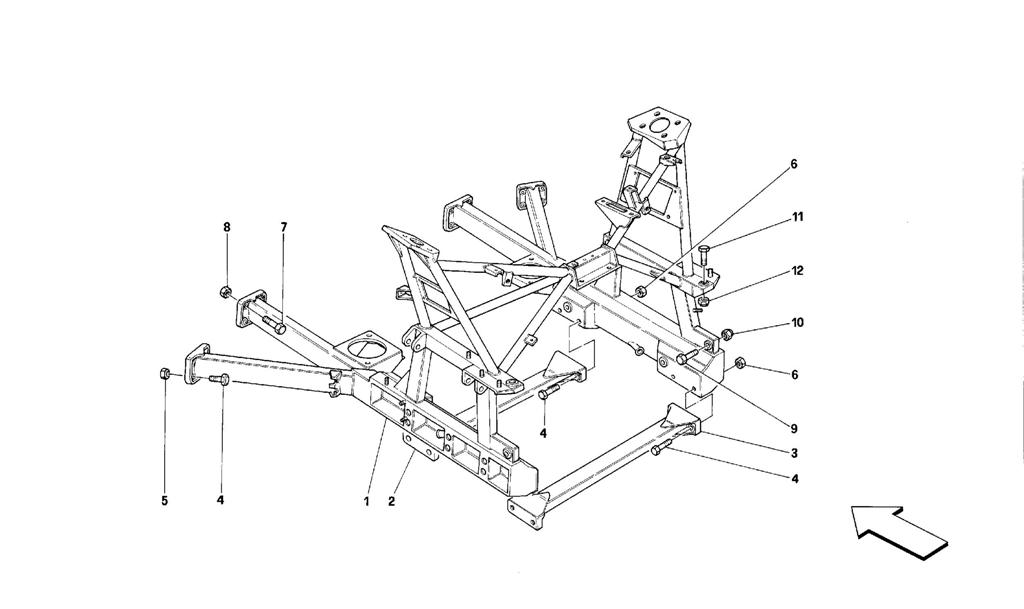

REAR REMOVABLE FRAME -VALID FOR CARS WITH 3P

Go to Split View

REAR REMOVABLE FRAME -VALID FOR CARS WITH 3P

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 139265 *Qty: 1 Rear removable frame -Coup?- -Not for CH and RHD $4,534.03
Location: 1 Prev | Next Part: 142183 *Qty: 1 Rear removable frame -Coup?- -Valid for RHD $3,413.52
Location: 1 Prev | Next Part: 142533 *Qty: 1 Rear removable frame -Cabriolet- -Not for CH and RHD $6,975.85
Location: 1 Prev | Next Part: 142535 *Qty: 1 Rear removable frame -Cabriolet- -Valid for RHD $4,994.68
Location: 1 Prev | Next Part: 142536 *Qty: 1 Rear removable frame -Cabriolet- -Valid for CH $5,158.61
Location: 1 Prev | Next Part: 142537 *Qty: 1 Rear removable frame -Coup?- -Valid for CH $5,158.61
Location: 2 Prev | Next Part: 140405 *Qty: 1 Front cross member removable -Not for CH $266.16
Location: 2 Prev | Next Part: 145684 *Qty: 1 Front cross member removable -Valid for CH $168.20
Location: 3 Prev | Next Part: 62465000 *Qty: 1 Rear cross member removable -Not for CH $448.06
Location: 3 Prev | Next Part: 145685 *Qty: 1 Rear cross member removable -Valid for CH $168.20
Location: 4 Prev | Next Part: 15540621 *Qty: 16 Screw $1.98
Location: 5 Prev | Next Part: 163534 *Qty: 8 Nut Superseded
Location: 6 Prev | Next Part: 142438 *Qty: 8 Nut $0.96
Location: 7 Prev | Next Part: 15540421 *Qty: 8 Screw $3.82
Location: 8 Prev | Next Part: 163534 *Qty: 8 Nut Superseded
Location: 9 Prev | Next Part: 15541221 *Qty: 2 Screw $4.38
Location: 10 Prev | Next Part: 163534 *Qty: 2 Nut Superseded
Location: 11 Prev | Next Part: 15540421 *Qty: 2 Screw $3.82
Location: 12 Prev | Next Part: 148020 *Qty: 2 Nut $4.84

* Quantity shown indicates the number of pieces used in the diagram.
