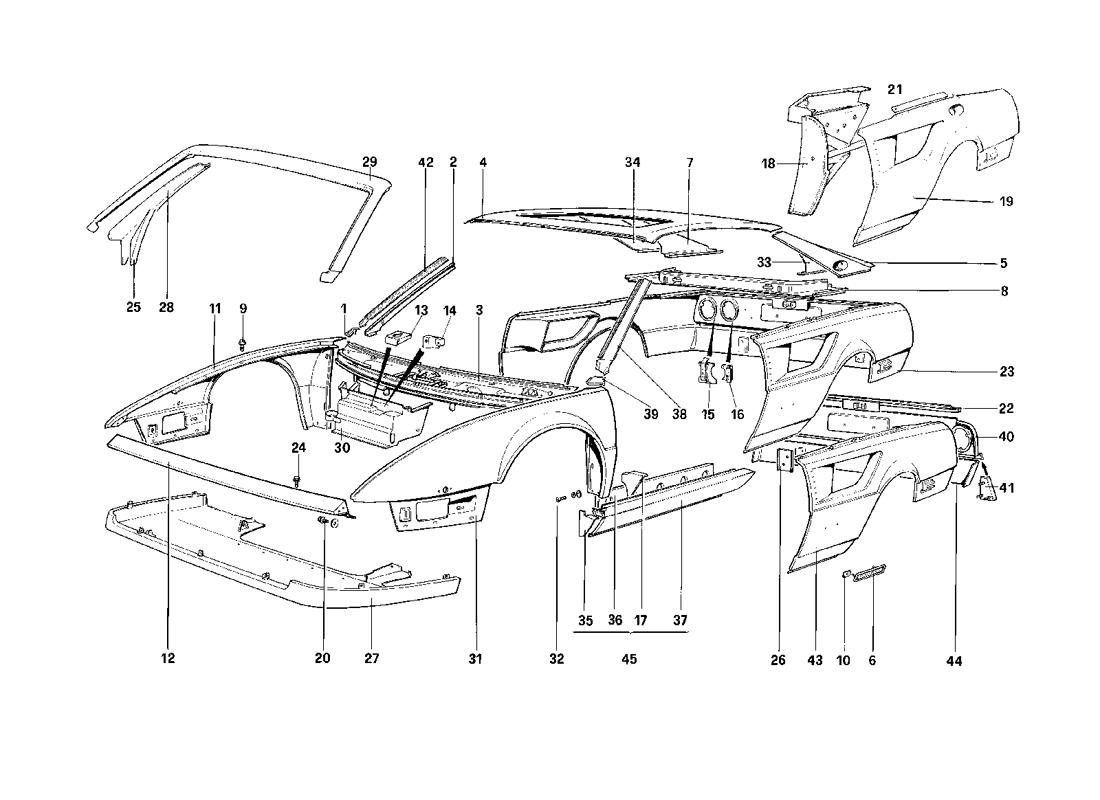

BODY SHELL - OUTER ELEMENTS

Go to Split View

BODY SHELL - OUTER ELEMENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60738900 *Qty: 1 R.H. moulding $66.64
Location: 2 Prev | Next Part: 60921900 *Qty: 1 Inner L.H. pillar - TA $32.60
Location: 2 Prev | Next Part: 60922000 *Qty: 1 Inner R.H. pillar - TA $37.50
Location: 2 Prev | Next Part: 60921500 *Qty: 1 (1) Inner R.H. pillar $31.35
Location: 2 Prev | Next Part: 60921400 *Qty: 1 (1) Inner L.H. pillar $31.35
Location: 3 Prev | Next Part: 62333300 *Qty: 1 (1A) Under windshield - RHD $1,163.06
Location: 3 Prev | Next Part: 61088400 *Qty: 1 (1B) Under windshield - LHD $980.62
Location: 3 Prev | Next Part: 62421200 *Qty: 1 (A) Under windshield - TA - RHD $1,142.59
Location: 3 Prev | Next Part: 61145900 *Qty: 1 (B) Under windshield - TA - LHD $999.51
Location: 3 Prev | Next Part: 61178400 *Qty: 1 (B) Under windshield - TA - RHD Call
Location: 3 Prev | Next Part: 61993900 *Qty: 1 (1A) Underwindshield - LHD $1,569.51
Location: 3 Prev | Next Part: 61121900 *Qty: 1 (1B) Underwindshield - RHD $1,334.43
Location: 3 Prev | Next Part: 62331800 *Qty: 1 (A) Under windshield -TA- LHD $793.11
Location: 4 Prev | Next Part: 60545400 *Qty: 1 (1) Roof $1,848.11
Location: 4 Prev | Next Part: 60913800 *Qty: 1 Roof - TA $1,071.71
Location: 5 Prev | Next Part: 62374900 *Qty: 1 (1A) Outside L.H. fins
Can be installed on cars without anti-skid
$67.74
Location: 5 Prev | Next Part: 60722300 *Qty: 1 (1B) Outside L.H. fins $109.85
Location: 6 Prev | Next Part: 20043105 *Qty: 2 Pininfarina name $95.68
Location: 7 Prev | Next Part: 60759400 *Qty: 1 (1) lnnerR.H.fins $21.28
Location: 8 Prev | Next Part: 60780800 *Qty: 1 (1) Read window plane $553.32
Location: 9 Prev | Next Part: 13835971 *Qty: 10 Screw Superseded
Location: 10 Prev | Next Part: 60324506 *Qty: 4 Clip Superseded
Location: 11 Prev | Next Part: 61743900 *Qty: 1 Front R.H. fender - US $1,086.65
Location: 11 Prev | Next Part: 61707700 *Qty: 1 Front R.H. fender
Not for US
$3,505.51
Location: 12 Prev | Next Part: 60970900 *Qty: 1 Front panel Superseded
Location: 13 Prev | Next Part: 60842500 *Qty: 1 Bracket for safety catch US - SA $20.34
Location: 14 Prev | Next Part: 60644800 *Qty: 1 Support for lock $20.48
Location: 15 Prev | Next Part: 61865200 *Qty: 2 Exterior support $23.95
Location: 16 Prev | Next Part: 61865400 *Qty: 1 R.H. inner support $10.73
Location: 16 Prev | Next Part: 61865500 *Qty: 1 L.H. inner support $10.73
Location: 17 Prev | Next Part: 60888600 *Qty: 1 (1) R.H. panel $11.04
Location: 17 Prev | Next Part: 60888700 *Qty: 1 (1) L.H. panel $11.35
Location: 18 Prev | Next Part: 61205900 *Qty: 1 (2) R.H. mounting for top $337.84
Location: 18 Prev | Next Part: 61206000 *Qty: 1 (2) L.H. mounting for top $337.84
Location: 19 Prev | Next Part: 61784000 *Qty: 1 (2) Rear R.H. fender - US $2,806.42
Location: 19 Prev | Next Part: 62375700 *Qty: 1 (2A) Rear L.H. fender
Not for US - Can be installed on cars without anti-skid
$2,201.67
Location: 19 Prev | Next Part: 61961100 *Qty: 1 (2) Rear R.H. fender - SA - C7 Call
Location: 19 Prev | Next Part: 62376100 *Qty: 1 (2A) Rear L.H. fender - US
Can be installed on cars without anti-skid
$2,702.48
Location: 19 Prev | Next Part: 62436700 *Qty: 1 (2) Rear R.H. fender C8 $2,649.99
Location: 19 Prev | Next Part: 61840300 *Qty: 1 (2B) Rear L.H. fender
Not for US
$3,154.97
Location: 19 Prev | Next Part: 61784100 *Qty: 1 (2B) Rear L.H. fender - US Superseded
Location: 19 Prev | Next Part: 61840200 *Qty: 1 (2) Read R.H. fender
Not for US-SA C7-C8
$3,040.54
Location: 20 Prev | Next Part: 13833271 *Qty: 4 Screw $0.90
Location: 21 Prev | Next Part: 61251600 *Qty: 1 (2) L.H. insert for top fastening $17.82
Location: 21 Prev | Next Part: 61251500 *Qty: 1 (2) R.H. insert for top fastening $17.82
Location: 22 Prev | Next Part: 61865600 *Qty: 1 Strut for plate housing $122.39
Location: 23 Prev | Next Part: 62435300 *Qty: 1 (1) Rear panel complete - C8 Call
Location: 23 Prev | Next Part: 61697200 *Qty: 1 (1) Rear panel complete
Not for US -SA- AUS -C7-C8
$5,897.33
Location: 23 Prev | Next Part: 61728700 *Qty: 1 (1) Rear panel complete - US $4,362.36
Location: 23 Prev | Next Part: 61959900 *Qty: 1 (1) Rear panel complete - SA - AUS - C7 Call
Location: 23 Prev | Next Part: 62435300 *Qty: 1 (2) Rear panel complete C8 Call
Location: 23 Prev | Next Part: 62378200 *Qty: 1 (2A) Rear panel complete
Not for US-SA-C7-C8 - The under windshield for cars with Anti-skid can be installed on cars without Anti-skid by replacing also the wiper motor
Call
Location: 23 Prev | Next Part: 61961000 *Qty: 1 (2B) Rear panel complete - SA - C7 Call
Location: 23 Prev | Next Part: 62378300 *Qty: 1 (2A) Rear panel complete - US
The under windshield for cars with Anti-skid can be installed on cars without Anti-skid by replacing also the wiper motor
$4,649.00
Location: 23 Prev | Next Part: 61840100 *Qty: 1 (2B) Rear panel complete
Not for US-SA-C7-C8
Call
Location: 23 Prev | Next Part: 61783900 *Qty: 1 (2B) Rear panel complete - US $4,345.59
Location: 23 Prev | Next Part: 62378300 *Qty: 1 (2A) Rear panel complete - US
The under windshield for cars with Anti-skid can be installed on cars without Anti-skid by replacing
$4,649.00
Location: 23 Prev | Next Part: 62378200 *Qty: 1 (2A) Rear panel complete
Not for US-SA-C7-C8 - The under windshield for cars with Anti-skid can be installed on cars without
Call
Location: 24 Prev | Next Part: 15925601 *Qty: 7 Screw $0.90
Location: 25 Prev | Next Part: 61214300 *Qty: 1 (2) R.H. reinforcement $16.37
Location: 25 Prev | Next Part: 61214400 *Qty: 1 (2) L.H. reinforcement $18.26
Location: 26 Prev | Next Part: 60603200 *Qty: 1 R.H. reinforcement
Not for US-AUS-SA-C7-C8
$13.86
Location: 26 Prev | Next Part: 60603300 *Qty: 1 L.H. reinforcement
Not for US-AUS-SA-C7-C8
$13.86
Location: 27 Prev | Next Part: 61691900 *Qty: 1 Spoyler
Not for US - SA
$2,655.10
Location: 27 Prev | Next Part: 61743800 *Qty: 1 Spoyler- US -SA $1,504.53
Location: 28 Prev | Next Part: 61214000 *Qty: 1 (2) R.H. windshield pillar covering $68.52
Location: 28 Prev | Next Part: 61214100 *Qty: 1 (2) L.H. windshield pillar covering $68.52
Location: 29 Prev | Next Part: 61213600 *Qty: 1 (2) Framework windhshield $2,036.30
Location: 30 Prev | Next Part: 61087100 *Qty: 1 (B) Protection air conditioner - LHD $200.74
Location: 30 Prev | Next Part: 62331300 *Qty: 1 (A) Protection air conditioner - LHD $211.05
Location: 30 Prev | Next Part: 62333800 *Qty: 1 (A) Protection air conditioner - RHD $262.50
Location: 30 Prev | Next Part: 61121500 *Qty: 1 (B) Protection air conditioner - RHD $165.27
Location: 31 Prev | Next Part: 61744000 *Qty: 1 Front left fender - US $1,086.65
Location: 31 Prev | Next Part: 61707800 *Qty: 1 Front left fender
Not for US
$2,362.30
Location: 32 Prev | Next Part: 13833171 *Qty: 8 Screw $0.90
Location: 33 Prev | Next Part: 60759500 *Qty: 1 (1) lnnerfor L.H. fins $71.18
Location: 34 Prev | Next Part: 60512700 *Qty: 1 (1) Outside for R.H. fins $29.32
Location: 35 Prev | Next Part: 60543100 *Qty: 1 Front R.H. cover rail $9.47
Location: 35 Prev | Next Part: 60543200 *Qty: 1 Front L.H. conver rail $12.18
Location: 36 Prev | Next Part: 60543000 *Qty: 2 Rail inner stiffening $30.71
Location: 37 Prev | Next Part: 60512400 *Qty: 1 Panel for L.H. underdoor $769.59
Location: 37 Prev | Next Part: 60512300 *Qty: 1 Panel for R.H. underdoor $739.14
Location: 38 Prev | Next Part: 60583900 *Qty: 1 (1) L.H. pillarforwindshield $26.02
Location: 39 Prev | Next Part: 60739000 *Qty: 1 L.H. moulding $165.37
Location: 40 Prev | Next Part: 61865000 *Qty: 1 Panel for plate housing $1,589.84
Location: 41 Prev | Next Part: 60721700 *Qty: 1 Bracket $108.55
Location: 42 Prev | Next Part: 60583800 *Qty: 1 (1) R.H. pillarforwindshield $26.02
Location: 43 Prev | Next Part: 61697400 *Qty: 1 (1) Rear L.H. fender
Not for US
$1,891.94
Location: 43 Prev | Next Part: 61728900 *Qty: 1 (1) Rear L.H. fender - US $1,969.64
Location: 43 Prev | Next Part: 61959800 *Qty: 1 (1) Rear R.H. fender - SA - AUS - C7 $1,969.64
Location: 43 Prev | Next Part: 61697300 *Qty: 1 (1) Rear R.H. fender
Not for US-SA-AUS-C7-C8
$1,704.00
Location: 43 Prev | Next Part: 62435400 *Qty: 1 (1) Rear R.H. fender C8 $1,697.70
Location: 43 Prev | Next Part: 61728800 *Qty: 1 (1) Rear R.H. fender- US $1,603.23
Location: 44 Prev | Next Part: 61697800 *Qty: 1 Panel for rear bumper seat
Not for US - AUS - C7 - C8 - SA
$152.88
Location: 45 Prev | Next Part: 60542800 *Qty: 1 R.H. framework $312.88
Location: 45 Prev | Next Part: 60542900 *Qty: 1 L.H. framework $312.88

* Quantity shown indicates the number of pieces used in the diagram.
