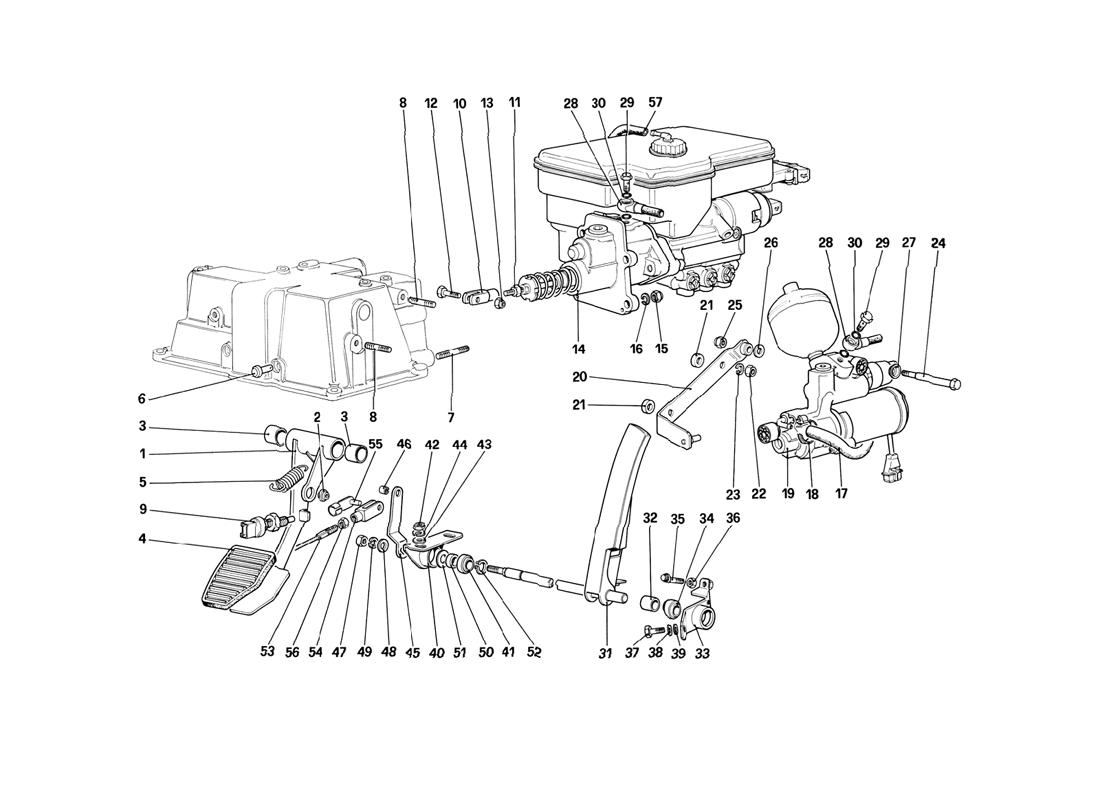

THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR RHD)

Location Part # Quantity* Description Price Add To Cart
1 131316 1 Brake pedal $524.15
2 109407 1 Ball joint $75.90
3 103163 2 Bush $8.51
4 106950 1 Pedal cover $46.57
5 101305 1 Pedal return spring Unavailable
6 129612 1 Pin $3.19
7 13543421 4 Stud Superseded
8 13516821 2 Stud Superseded
9 133555 1 Stop light switch $41.39
10 10007871 1 Fork $22.41
11 16102311 1 Lock nut Superseded
12 130926 1 Screw $9.58
13 16104411 1 Selflocking nut $2.33
14 129699 1 Idraulic control unit Unavailable
15 16104111 4 Selflocking nut Superseded
16 12601371 4 Washer Superseded
17 136376 1 Pipe $41.09
18 12179190 2 Clamp Superseded
19 131324 1 Master cylinder Superseded
20 131320 1 Bracket $57.12
21 124801 2 Spacer $2.48
22 16100811 2 Nut Superseded
23 127469 2 Washer $80.57
24 129636 1 Screw $6.23
25 12574211 1 Selflocking nut Superseded
26 121558 1 Shim Unavailable
27 130861 1 Washer $5.01
28 131872 1 Hose Superseded
29 131873 2 Union $7.75
30 131874 4 Sealing ring Superseded
31 116522 1 Accelerator pedal $694.56
32 117991 1 Spacer $4.08
33 116526 1 Support for accelerator pedal $140.62
34 122430 1 Ball joint $79.96
35 116527 1 Adjusting screw $12.40
36 16102311 1 Nut Superseded
37 16043221 2 Screw Unavailable
38 127496 2 Washer $0.90
39 10519601 2 Washer Superseded
40 116528 1 Support $135.52
41 122430 1 Ball joint $79.96
42 15896211 2 Nut Superseded
43 12643701 2 Washer Superseded
44 127494 2 Washer $0.90
45 132206 1 Lever $24.28
46 132212 1 Bush $35.20
47 16100811 1 Nut Superseded
48 10519601 1 Washer Superseded
49 127496 1 Washer $0.90
50 116529 1 Spacer $12.18
51 105930 1 Ditto, thickness 0,5 mm. $3.19
51 105929 1 Shim, 0,3 mm. $1.38
51 105931 1 Ditto, thickness 0,7 mm. Unavailable
52 11066076 1 Seeger ring Superseded
53 133750 1 Control cable for accelerator $133.84
54 132290 1 Fork $24.79
55 132291 1 Pin with clamp $55.74
56 10725011 1 Lock nut $2.27
57 136192 1 Pipe $1.79

* Quantity shown indicates the number of pieces used in the diagram.
