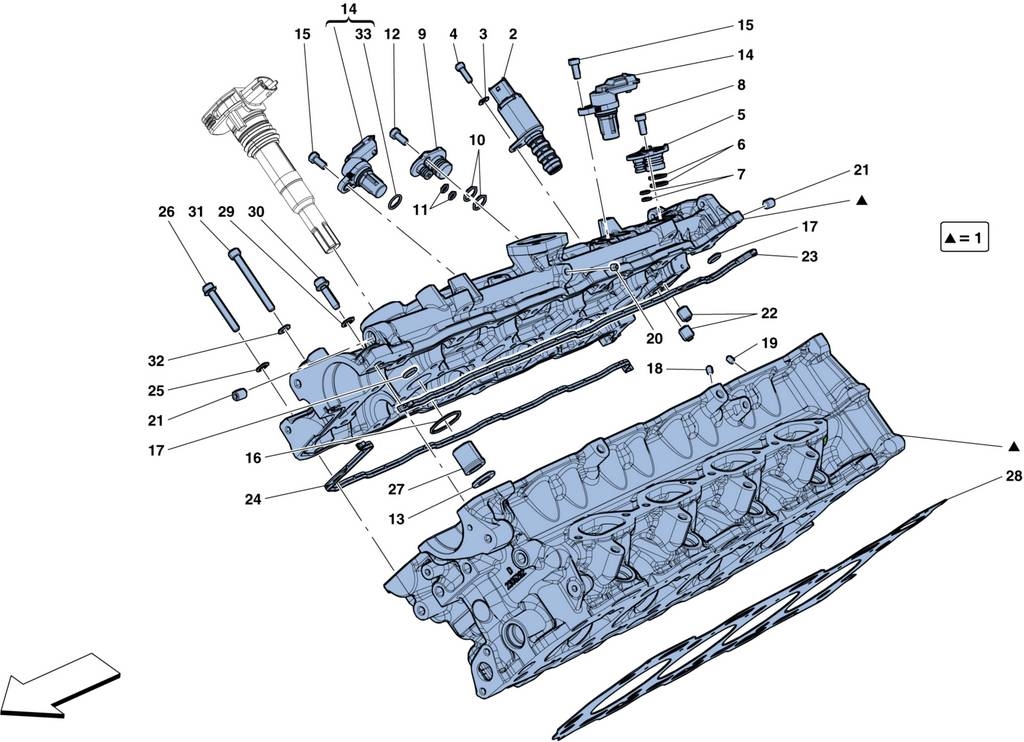

RIGHT CYLINDER HEAD

Go to Split View

RIGHT CYLINDER HEAD

Location Part # Quantity* Description Price Add To Cart
1 329807 1 RH Cylinder Head;Applicable up to engine No. 369855 $2,668.89
1 333616 1 RH Cylinder Head;Applicable from engine No. 369856 up to engine No. 411646 $2,775.00
1 816059 1 Assieme Testa Dx - Coperchio;Applicable from engine No. 411647 $2,653.96
2 296017 2 Oil Pressure Regulator Valve Superseded
3 11181574 2 Washer Unavailable
4 14304224 2 Screw 5x16 Unavailable
5 287233 1 Cap $8.74
6 14453281 2 O Ring Gasket $1.68
7 14452781 2 Gasket Unavailable
8 231616 1 Screw 6x14 Unavailable
9 287233 1 Cap $8.74
10 14453281 2 O Ring Gasket $1.68
11 14452781 2 Gasket Unavailable
12 231618 1 Allen Head Screw 6x20 Unavailable
13 271129 20 Washer $1.48
14 224573 2 Phase Sensor $39.93
15 231617 2 Screw 6x18 Unavailable
16 166657 4 O-Ring D.29-8 Unavailable
17 127816 2 Sealing Ring $4.43
18 256827 1 Dowel $6.84
19 226414 1 Grub Screw $8.40
20 199760 1 Threaded Plug D 6x1 $0.90
21 277903 2 Cap Unavailable
22 200458 2 Non Return Valve;Applicable up to engine No. 411646 $9.50
22 342272 2 Non Return Valve;Applicable from engine No. 411647 $12.70
23 339986 1 RH Cover Gasket Unavailable
23 781918 1 RH Cover Gasket- Intake Side- -Applicable after depletion of 339986 $22.72
24 339987 1 RH Cover Gasket- Exhaust Side;-Applicable until depletion Unavailable
24 781924 1 RH Cover Gasket- Exhaust Side-Applicable after depletion of 339987 $22.72
25 296075 30 Washer $1.46
26 296759 30 Screw Unavailable
27 271125 20 Nut $8.85
28 319511 1 RH Head-Crankcase Gasket $146.29
29 296075 1 Washer $1.46
30 231620 1 Screw 6x25 Unavailable
31 14303821 1 Screw Unavailable
32 11197774 1 Conic Washer 6.4x12x1.2 $0.90
33 849672 2 Timing Sensor Seal $4.48

* Quantity shown indicates the number of pieces used in the diagram.
