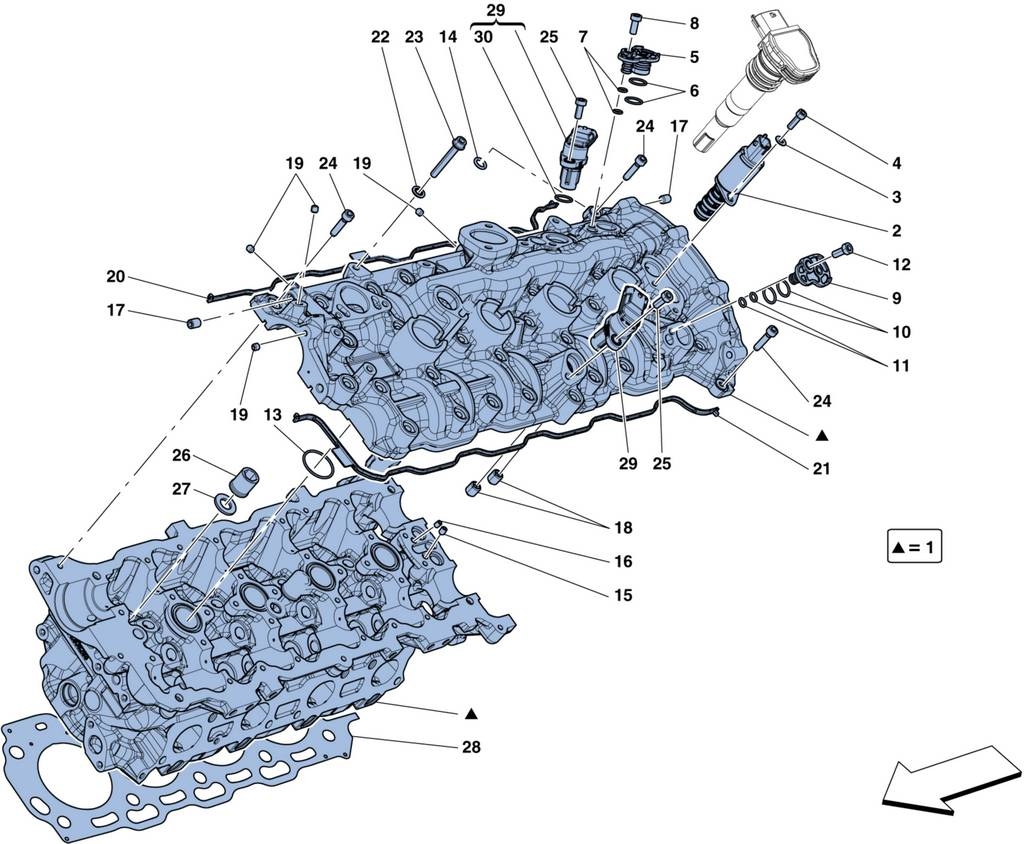

LEFT CYLINDER HEAD

Go to Split View

LEFT CYLINDER HEAD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 329808 *Qty: 1 LH Cylinder Head;Applicable up to engine No. 369855 $2,598.36
Location: 1 Prev | Next Part: 333617 *Qty: 1 LH Cylinder Head;Applicable from engine No. 369856 up to engine No. 411646 $2,699.69
Location: 1 Prev | Next Part: 816060 *Qty: 1 Assieme Testa Sx - Coperchio;Applicable from engine No. 411647 $2,583.63
Location: 2 Prev | Next Part: 296017 *Qty: 2 Oil Pressure Regulator Valve $212.08
Location: 3 Prev | Next Part: 11181574 *Qty: 2 Washer Unavailable
Location: 4 Prev | Next Part: 14304224 *Qty: 2 Screw 5x16 Unavailable
Location: 5 Prev | Next Part: 287024 *Qty: 1 Cap $8.57
Location: 6 Prev | Next Part: 14453281 *Qty: 2 O Ring Gasket $1.54
Location: 7 Prev | Next Part: 14452781 *Qty: 2 Gasket Unavailable
Location: 8 Prev | Next Part: 231616 *Qty: 1 Screw 6x14 Unavailable
Location: 9 Prev | Next Part: 287024 *Qty: 1 Cap $8.57
Location: 10 Prev | Next Part: 14453281 *Qty: 2 O Ring Gasket $1.54
Location: 11 Prev | Next Part: 14452781 *Qty: 2 Gasket Unavailable
Location: 12 Prev | Next Part: 231618 *Qty: 1 Allen Head Screw 6x20 Unavailable
Location: 13 Prev | Next Part: 166657 *Qty: 4 O-Ring D.29-8 Unavailable
Location: 14 Prev | Next Part: 127816 *Qty: 1 Sealing Ring $4.07
Location: 15 Prev | Next Part: 256827 *Qty: 1 Dowel $6.56
Location: 16 Prev | Next Part: 226414 *Qty: 1 Grub Screw $8.24
Location: 17 Prev | Next Part: 277903 *Qty: 2 Cap Unavailable
Location: 18 Prev | Next Part: 200458 *Qty: 2 Non Return Valve;Applicable up to engine No. 411646 $8.70
Location: 18 Prev | Next Part: 342272 *Qty: 2 Non Return Valve;Applicable from engine No. 411647 $12.46
Location: 19 Prev | Next Part: 199760 *Qty: 4 Threaded Plug D 6x1 $0.90
Location: 20 Prev | Next Part: 339988 *Qty: 1 LH Cover Gasket Unavailable
Location: 20 Prev | Next Part: 781925 *Qty: 1 LH Cover Gasket- Intake Side- Applicable after depletion of 339988 $22.28
Location: 21 Prev | Next Part: 339989 *Qty: 1 LH Cover Gasket- Exhaust Side; Applicable until depletion Unavailable
Location: 21 Prev | Next Part: 781926 *Qty: 1 LH Cover Gasket- Exhaust Side- Applicable after depletion of 339989 $22.28
Location: 22 Prev | Next Part: 296075 *Qty: 30 Washer $1.43
Location: 23 Prev | Next Part: 296759 *Qty: 30 Screw Unavailable
Location: 24 Prev | Next Part: 231620 *Qty: 3 Screw 6x25 Unavailable
Location: 25 Prev | Next Part: 231619 *Qty: 2 Screw 6x22 Unavailable
Location: 26 Prev | Next Part: 271125 *Qty: 10 Nut $8.68
Location: 27 Prev | Next Part: 271129 *Qty: 10 Washer $1.45
Location: 28 Prev | Next Part: 319512 *Qty: 1 LH Head-Crankcase Gasket $143.42
Location: 29 Prev | Next Part: 224573 *Qty: 2 Phase Sensor $36.56
Location: 30 Prev | Next Part: 849672 *Qty: 2 Timing Sensor Seal $4.40

* Quantity shown indicates the number of pieces used in the diagram.
