FRONT SUSPENSION - CONTROL ARMS

Go to Split View

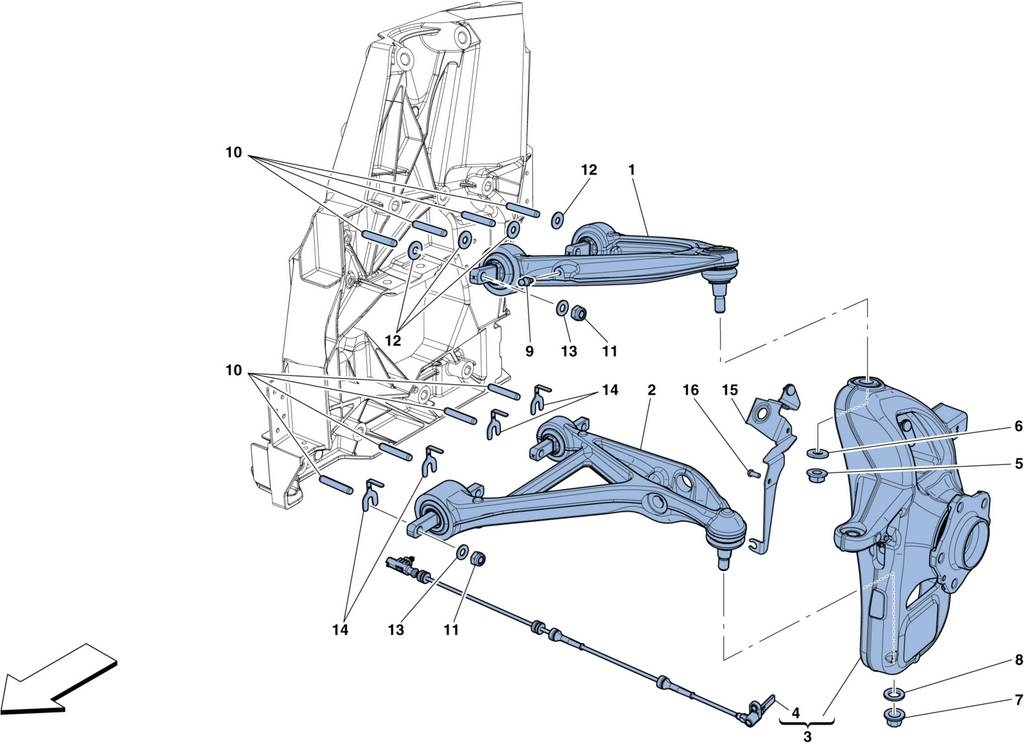

FRONT SUSPENSION - CONTROL ARMS

Location Part # Quantity* Description Price Add To Cart
1 269263 1 RH Front Upper Arm Complete $949.47
1 269262 1 LH Front Upper Arm Complete $949.47
2 268897 1 RH Front Lower Arm Complete $1,348.71
2 268896 1 LH Front Lower Arm Complete $1,348.71
3 268378 1 RH Front Hub Carrier Complete Unavailable
3 268377 1 LH Front Hub Carrier Complete $2,450.53
4 259615 2 Sensor ABS Front $224.32
5 149807 2 Self-Locking Nut For Top And Bottom Ball Joints $1.34
6 12646921 2 Washer $0.90
7 203795 2 Nut 14m $2.78
8 241689 2 Spacer $9.07
9 343376 2 Ball Joint $18.95
10 264528 16 Threaded Rod 10x1.25 $4.67
11 104114 16 Nyloc Nut Superseded
12 12646821 4 Washer D.10 20-25x2 Unavailable
12 14496624 4 Washer D. 10.50-21 x2 $0.90
13 14496624 16 Washer D. 10.50-21 x2 $0.90
14 238692 8 Camber Spacer 0.5mm $7.94
14 238693 8 Camber Spacer 1.0mm $6.35
14 238694 8 Camber Spacer 2.0mm $6.35
14 238881 8 Camber Spacer 1.5mm $6.35
14 238882 8 Camber Spacer 2.5mm $6.35
14 238883 8 Camber Spacer 3.0mm $6.35
14 238884 8 Camber Spacer 3.5mm $6.35
14 238885 8 Camber Spacer 4.0mm $6.35
15 274461 1 RH Joint Bracket $76.37
15 274460 1 LH Joint Bracket $76.37
16 190870 4 Screw 6x14 Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
