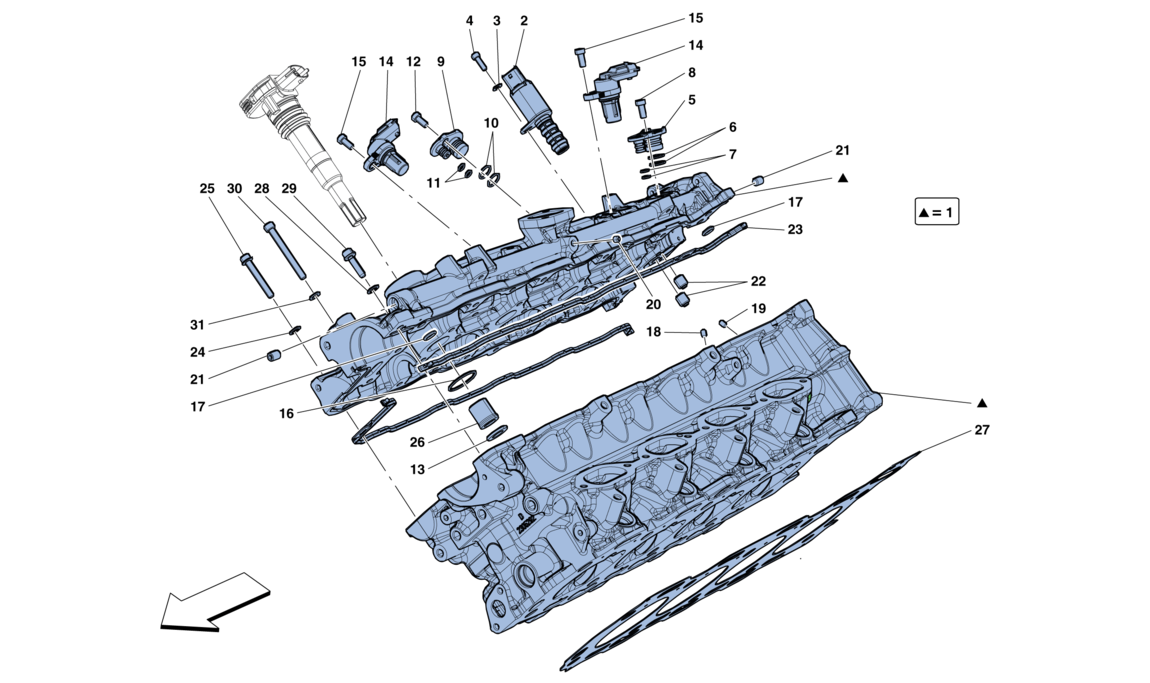

RIGHT HAND CYLINDER HEAD

Go to Split View

RIGHT HAND CYLINDER HEAD

Location Part # Quantity* Description Price Add To Cart
1 307137 1 RH CYLINDER HEAD -Not for USA, CDN, USA LIGHT- $2,891.59
1 311767 1 RH CYLINDER HEAD -Applicable for USA, CDN, USA LIGHT- $3,597.16
2 296017 2 OIL PRESSURE REGULATOR VALVE Superseded
3 11181574 2 WASHER Unavailable
4 14304224 2 SCREW Unavailable
5 287233 1 CAP $8.74
6 14453281 2 GASKET $1.68
7 14452781 2 GASKET Unavailable
8 13026924 1 SCREW Unavailable
9 287233 1 CAP $8.74
10 14453281 2 GASKET $1.68
11 14452781 2 GASKET Unavailable
12 13026924 1 SCREW Unavailable
13 271129 10 WASHER $1.48
14 224573 2 TIMING SENSOR $39.93
15 231617 2 SCREW Unavailable
16 166657 4 GASKET Unavailable
17 127816 2 O-RING $4.43
18 256827 1 GRUB SCREW $6.84
19 226414 1 GRUB SCREW $8.40
20 199760 1 THREADED PLUG $0.90
21 277903 2 CAP Unavailable
22 200458 2 CHECK VALVE $9.50
23 295061 1 HEAD COVER GASKET Superseded
24 296075 36 WASHER $1.46
25 296759 36 SCREW Unavailable
26 271125 10 NUT $8.85
27 278645 1 HEAD GASKET $148.82
28 296075 1 WASHER $1.46
29 231620 1 SCREW -M6 X 25- Unavailable
30 14303821 1 SCREW Unavailable
31 11197774 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
