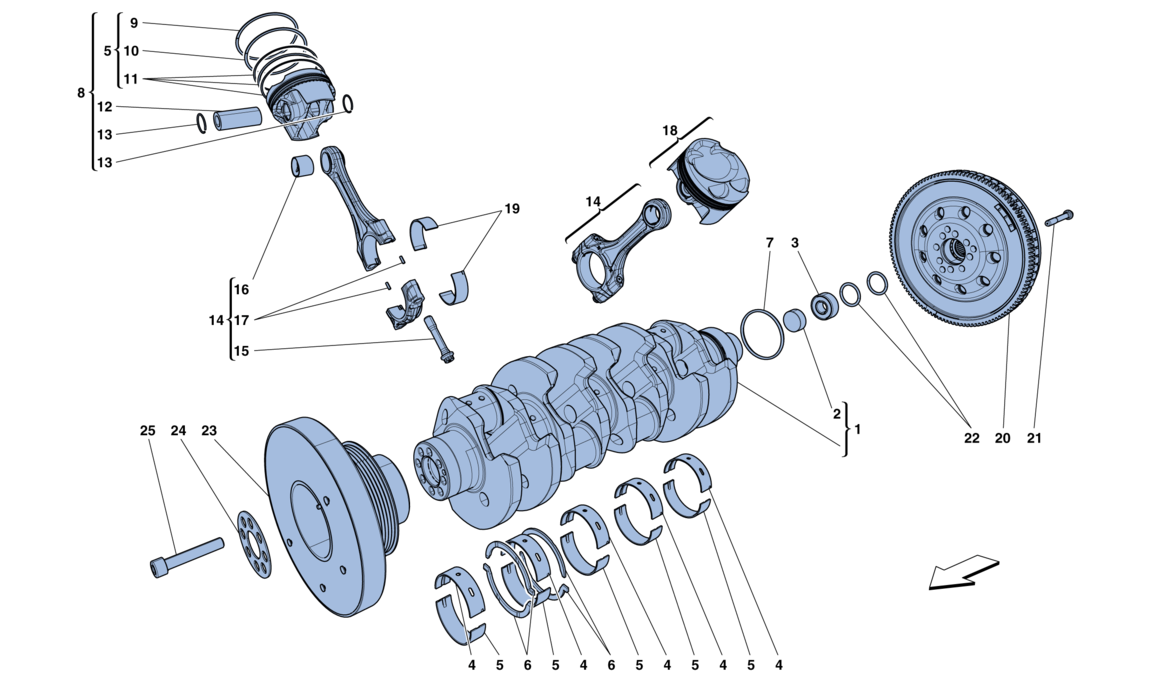

CRANKSHAFT, CONNECTING RODS AND PISTONS

Go to Split View

CRANKSHAFT, CONNECTING RODS AND PISTONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 296939 *Qty: 1 CRANKSHAFT Unavailable
Location: 2 Prev | Next Part: 176396 *Qty: 1 THREADED PLUG $5.98
Location: 3 Prev | Next Part: 103877 *Qty: 1 BEARING $29.75
Location: 4 Prev | Next Part: 271405 *Qty: 5 UPPER HALF MAIN BEARING -Black- -No longer supplied- $24.04
Location: 4 Prev | Next Part: 271406 *Qty: 5 UPPER HALF MAIN BEARING -Green- $36.08
Location: 4 Prev | Next Part: 271408 *Qty: 5 UPPER HALF MAIN BEARING -Yellow- $36.08
Location: 4 Prev | Next Part: 271409 *Qty: 5 UPPER HALF MAIN BEARING -Blue- $36.08
Location: 4 Prev | Next Part: 271410 *Qty: 5 UPPER HALF MAIN BEARING -Red- -No longer supplied- Unavailable
Location: 5 Prev | Next Part: 271411 *Qty: 5 LOWER HALF MAIN BEARING -Black- -No longer supplied- $23.22
Location: 5 Prev | Next Part: 271412 *Qty: 5 LOWER HALF MAIN BEARING -Green- $34.98
Location: 5 Prev | Next Part: 271413 *Qty: 5 LOWER HALF MAIN BEARING -Yellow- $34.98
Location: 5 Prev | Next Part: 271414 *Qty: 5 LOWER HALF MAIN BEARING -Blue- $34.98
Location: 5 Prev | Next Part: 271415 *Qty: 5 LOWER HALF MAIN BEARING -Red- -No longer supplied- $23.22
Location: 6 Prev | Next Part: 271589 *Qty: 4 CRANKSHAFT BEARING SHIM $14.96
Location: 7 Prev | Next Part: 259917 *Qty: 1 O-RING $3.19
Location: 8 Prev | Next Part: 296832 *Qty: 4 COMPL. PISTON, RH BANK $572.35
Location: 9 Prev | Next Part: 286954 *Qty: 8 SEAL RING $72.06
Location: 10 Prev | Next Part: 296139 *Qty: 8 SEAL RING $41.95
Location: 11 Prev | Next Part: 287177 *Qty: 8 OIL SCRAPER RING $56.04
Location: 12 Prev | Next Part: 297713 *Qty: 8 PISTON PIN $70.52
Location: 13 Prev | Next Part: 270275 *Qty: 16 STOP RING $8.54
Location: 14 Prev | Next Part: 276442 *Qty: 8 COMPL. CONNECTING ROD -Applicable up to engine No. 251326- Unavailable
Location: 14 Prev | Next Part: 297700 *Qty: 8 COMPL. CONNECTING ROD -Applicable from engine No. 251327- $237.10
Location: 15 Prev | Next Part: 270248 *Qty: 16 SCREW $28.15
Location: 16 Prev | Next Part: 270251 *Qty: 8 BUSHING $25.43
Location: 17 Prev | Next Part: 292751 *Qty: 16 ALIGNMENT PIN $25.42
Location: 18 Prev | Next Part: 296833 *Qty: 4 COMPL. PISTON, LH BANK $572.35
Location: 19 Prev | Next Part: 271400 *Qty: 16 CONNECTING ROD HALF-BEARING -Crimson- -No longer supplied- $14.29
Location: 19 Prev | Next Part: 271401 *Qty: 16 CONNECTING ROD HALF-BEARING -Black- $22.00
Location: 19 Prev | Next Part: 271402 *Qty: 16 CONNECTING ROD HALF-BEARING -Blue- $22.00
Location: 19 Prev | Next Part: 271403 *Qty: 16 CONNECTING ROD HALF-BEARING -Red- $22.00
Location: 19 Prev | Next Part: 271404 *Qty: 16 CONNECTING ROD HALF-BEARING -Pink- -No longer supplied- $14.29
Location: 20 Prev | Next Part: 285382 *Qty: 1 ENGINE FLYWHEEL Unavailable
Location: 21 Prev | Next Part: 296457 *Qty: 8 SCREW Unavailable
Location: 22 Prev | Next Part: 282966 *Qty: 2 GASKET $5.12
Location: 23 Prev | Next Part: 304949 *Qty: 1 TORSION DAMPER -Applicable up to Ass. No. 122060- -Applicable until depletion- Unavailable
Location: 23 Prev | Next Part: 313052 *Qty: 1 TORSION DAMPER -Applicable from Ass. No. 122061- -Applicable after depletion of 304949- Unavailable
Location: 24 Prev | Next Part: 271609 *Qty: 1 WASHER $2.95
Location: 25 Prev | Next Part: 14308074 *Qty: 8 SCREW $2.53

* Quantity shown indicates the number of pieces used in the diagram.
