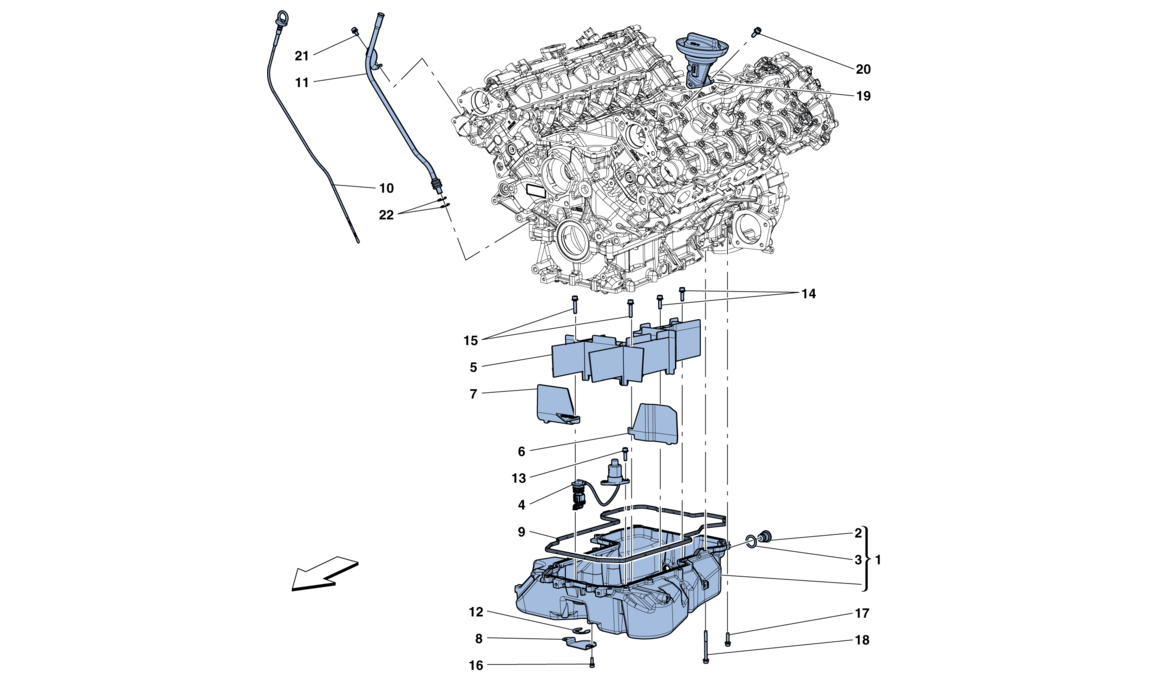

LUBRICATION: CIRCUIT AND PICKUP

Go to Split View

LUBRICATION: CIRCUIT AND PICKUP

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 306807 *Qty: 1 OIL SUMP $674.98
Location: 2 Prev | Next Part: 104280 *Qty: 1 MAGNETIC PLUG $5.85
Location: 3 Prev | Next Part: 10261860 *Qty: 1 GASKET $0.90
Location: 4 Prev | Next Part: 230171 *Qty: 1 OIL LEVEL SENSOR $45.91
Location: 5 Prev | Next Part: 311171 *Qty: 1 OIL SUMP BAFFLE $59.86
Location: 6 Prev | Next Part: 303456 *Qty: 1 LH OIL SUMP BAFFLE FIN $8.53
Location: 7 Prev | Next Part: 303457 *Qty: 1 RH OIL SUMP BAFFLE FIN $8.07
Location: 8 Prev | Next Part: 304668 *Qty: 1 SENSOR PROTECTIVE SHIELD $13.98
Location: 9 Prev | Next Part: 301591 *Qty: 1 OIL SUMP GASKET $66.48
Location: 10 Prev | Next Part: 301461 *Qty: 1 DIPSTICK $34.96
Location: 11 Prev | Next Part: 297463 *Qty: 1 DIPSTICK TUBE EXTENSION $63.41
Location: 12 Prev | Next Part: 16165276 *Qty: 1 SNAP RING Unavailable
Location: 13 Prev | Next Part: 282396 *Qty: 2 SCREW Unavailable
Location: 14 Prev | Next Part: 282396 *Qty: 2 SCREW Unavailable
Location: 15 Prev | Next Part: 282398 *Qty: 2 SCREW Unavailable
Location: 16 Prev | Next Part: 299916 *Qty: 2 SCREW $3.47
Location: 17 Prev | Next Part: 231620 *Qty: 8 SCREW -M6 X 25- Unavailable
Location: 18 Prev | Next Part: 231626 *Qty: 9 SCREW $0.96
Location: 19 Prev | Next Part: 307670 *Qty: 1 COMPL. OIL CAP Unavailable
Location: 20 Prev | Next Part: 248334 *Qty: 2 SCREW -M6 X 16- $0.90
Location: 21 Prev | Next Part: 233600 *Qty: 1 SCREW Unavailable
Location: 22 Prev | Next Part: 282370 *Qty: 2 O-RING Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
