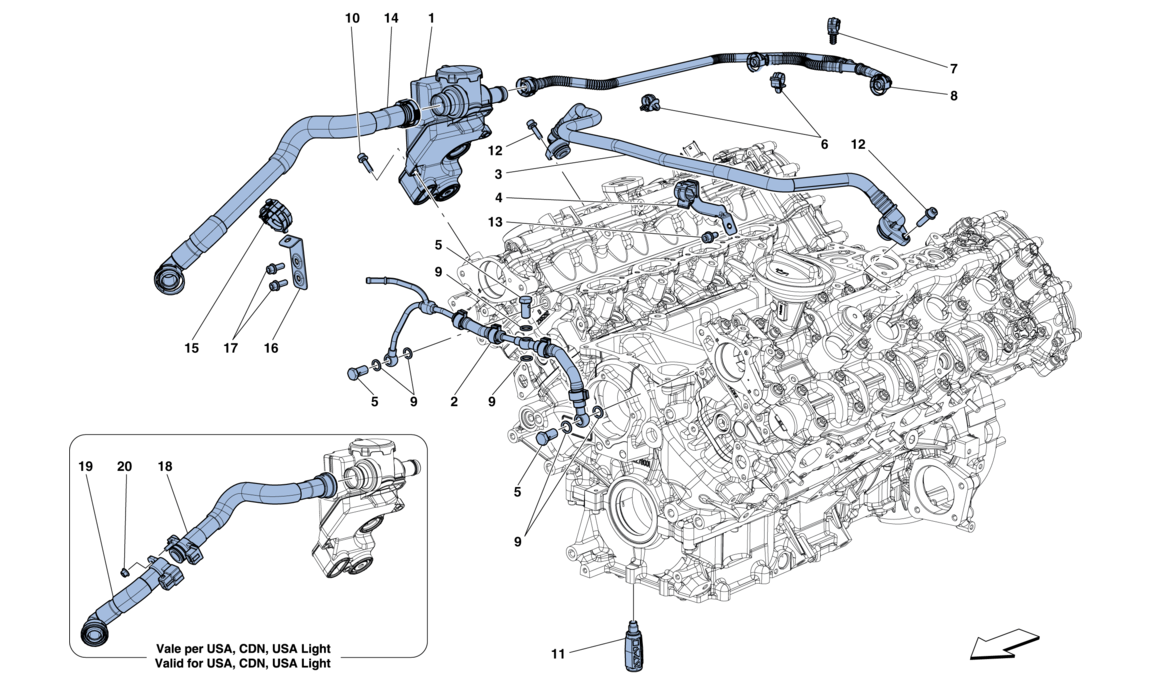

VAPOUR OIL RECOVERY SYSTEM

Go to Split View

VAPOUR OIL RECOVERY SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 299742 1 OIL VAPOUR SEPARATOR $334.40
2 307637 1 WATER VENT PIPE $271.82
3 302694 1 COMPENSATOR PIPE Unavailable
4 309274 1 BRACKET $18.69
5 11903811 3 PIPE UNION Unavailable
6 191904 2 CLIP Unavailable
7 291552 1 CLIP $1.52
8 304289 1 PIPE FROM SEPARATOR TO INTAKE MANIFOLD $99.75
9 10260960 6 GASKET Unavailable
10 231619 3 SCREW Unavailable
11 285403 1 VALVE $34.68
12 231619 2 SCREW Unavailable
13 282392 1 SCREW Unavailable
14 303273 1 BLOW-BY PIPE FROM INTAKE MANIFOLD TO SEPARATOR -Not for USA, CDN, USA LIGHT- $88.95
15 82051100 1 CLIP $1.16
16 303290 1 BLOW-BY PIPE BRACKET $9.54
17 248334 2 SCREW -M6 X 16- $0.90
18 310489 1 MALE BLOW-BY PIPE -Applicable for USA, CDN, USA LIGHT- $139.82
19 310490 1 FEMALE BLOW-BY PIPE -Applicable for USA, CDN, USA LIGHT- $139.82
20 14040514 1 NUT -Applicable for USA, CDN, USA LIGHT- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
