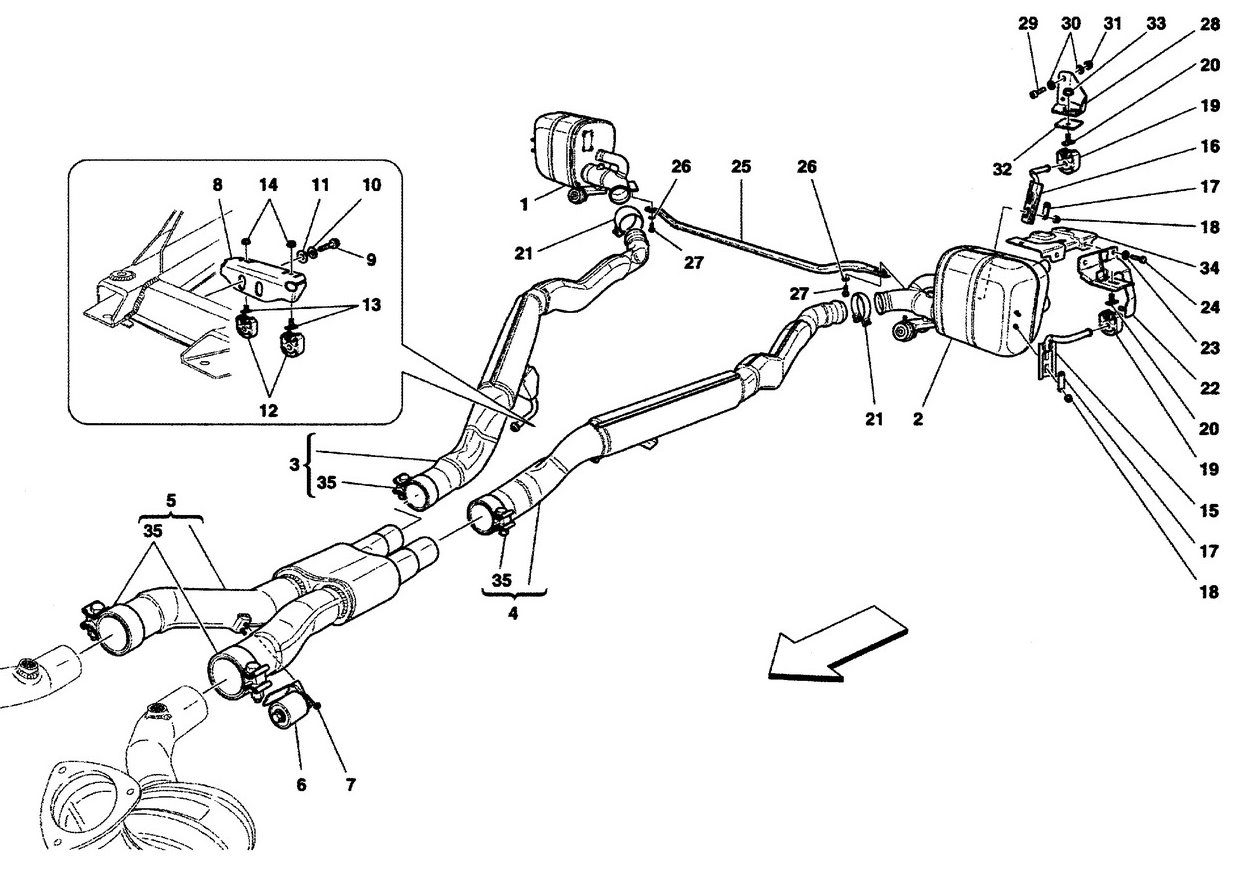

EXHAUST SYSTEM - MUFFLERS

Location Part # Quantity* Description Price Add To Cart
1 250495 1 R.H. REAR SILENCER Unavailable
2 250498 1 LH. REAR SILENCER Unavailable
3 246651 1 R.H. EXHAUST EXTENSION Unavailable
4 246653 1 L.H. EXHAUST EXTENSION $618.89
5 254296 1 CENTRAL COMPENSATOR -Not as spare part- -Replaced by 254296- $1,955.28
5 254296 1 CENTRAL COMPENSATOR $1,955.28
6 252174 2 BUFFER FOR SUPPORT -Not as spare part- -Replaced by 252174- $241.55
6 252174 2 BUFFER FOR SUPPORT $241.55
7 14059311 4 NUT Unavailable
8 250765 1 BRACKET $48.94
9 16043524 2 SCREW Unavailable
10 11193874 2 WASHER $0.90
11 12647024 2 WASHER Superseded
12 239798 2 BUFFER FOR SUPPORT $84.53
13 250222 2 SCREW $3.80
14 14058421 2 NUT $1.66
15 250507 1 L.H. SIDE BRACKET $454.70
15 250506 1 R.H. SIDE BRACKET $454.70
16 250505 1 L.H. REAR BRACKET $535.90
16 250499 1 R.H. REAR BRACKET $535.90
17 240597 4 SMALL PLATE $12.06
18 14059311 8 NUT Unavailable
19 239798 4 BUFFER FOR SUPPORT $84.53
20 250222 4 SCREW $3.80
21 229100 2 SPHERIC CLAMP $46.57
22 244298 1 L.H. MUFFLER BRACKET $174.03
22 244297 1 R.H. MUFFLER BRACKET $211.10
23 11193874 4 WASHER $0.90
24 16043524 4 SCREW Unavailable
25 240445 1 CROSS MUFFLER $259.82
26 11193974 2 WASHER Unavailable
27 16043224 2 SCREW Unavailable
28 240583 1 L.H. REAR MUFFLER BRACKET $28.52
28 240582 1 R.H. REAR MUFFLER BRACKET $28.52
29 16043524 4 SCREW Unavailable
30 11193874 4 WASHER $0.90
31 16100824 4 NUT Unavailable
32 240598 2 SMALL PLATE $15.16
33 14058421 2 NUT $1.66
34 80955200 2 REAR SILENCER BRACKET $552.14
35 185307 4 CLAMP $41.09

* Quantity shown indicates the number of pieces used in the diagram.
