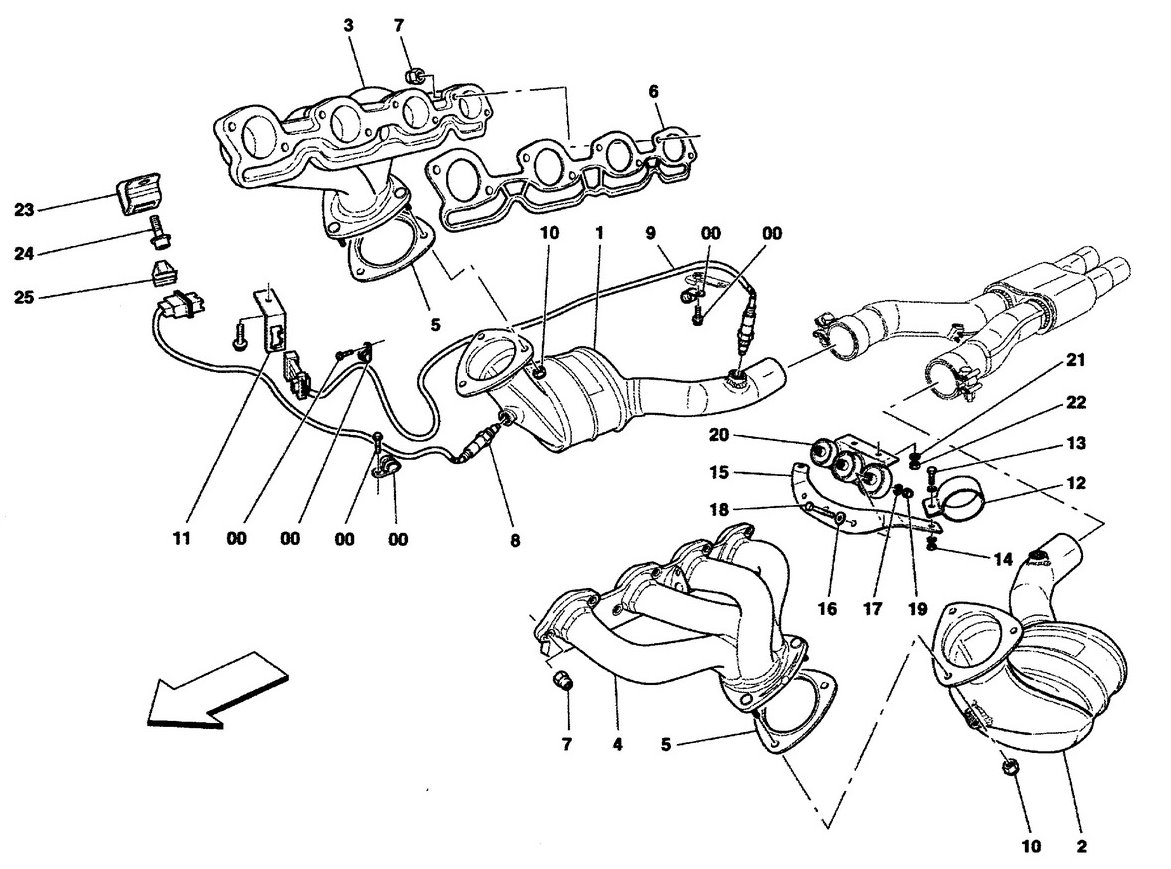

EXHAUST SYSTEM - CATALYSTS

Location Part # Quantity* Description Price Add To Cart
1 253956 1 R.H. CATALYST -Not as spare part- -Replaced by 253956- $6,072.01
1 253956 1 R.H. CATALYST $6,072.01
2 253957 1 L.H. CATALYST -Not as spare part- -Replaced by 253957- $6,072.01
2 253957 1 L.H. CATALYST $6,072.01
3 249597 1 COMPLETE R.H. EXHAUST MANIFOLD -Not as spare part- -Replaced by 259052- Unavailable
3 259052 1 COMPLETE R.H. EXHAUST MANIFOLD $2,463.99
4 249598 1 COMPLETE L.H. EXHAUST MANIFOLD -Not as spare part- -Replaced by 259053- Unavailable
4 259053 1 COMPLETE L.H. EXHAUST MANIFOLD $2,463.99
5 189211 2 GASKET $13.78
6 205144 2 GASKET -Valid till stock exhaustion- Unavailable
6 235756 2 GASKET -Applicable after depletion of 205144- Superseded
7 138392 16 NUT $1.50
8 217447 2 FRONT LAMBDA FEELER Superseded
9 180915 2 REAR LAMBDA FEELER $276.06
10 138392 6 NUT $1.50
11 178366 2 CONNECTOR SUPPORT BRACKET -Not as spare part- -Replaced by 185408- $5.01
11 185408 2 CONNECTOR SUPPORT BRACKET $16.34
12 246666 2 CATALYST SUPPORT CLAMP $14.60
13 16287124 2 SCREW $1.66
14 14059311 2 NUT Unavailable
15 246667 1 CATALYST SUPPORT BRACKET $396.84
16 11193974 3 WASHER Unavailable
17 12601374 3 WASHER $0.90
18 16044321 3 SCREW Unavailable
19 14059311 3 NUT Unavailable
20 248379 1 CATALYST SUPPORT BRACKET WITH 3 PADS $241.55
21 11193874 2 WASHER $0.90
22 16100824 2 NUT Unavailable
23 254278 2 BRACKET $8.81
24 231617 2 SCREW Unavailable
25 253769 2 CLIP Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
