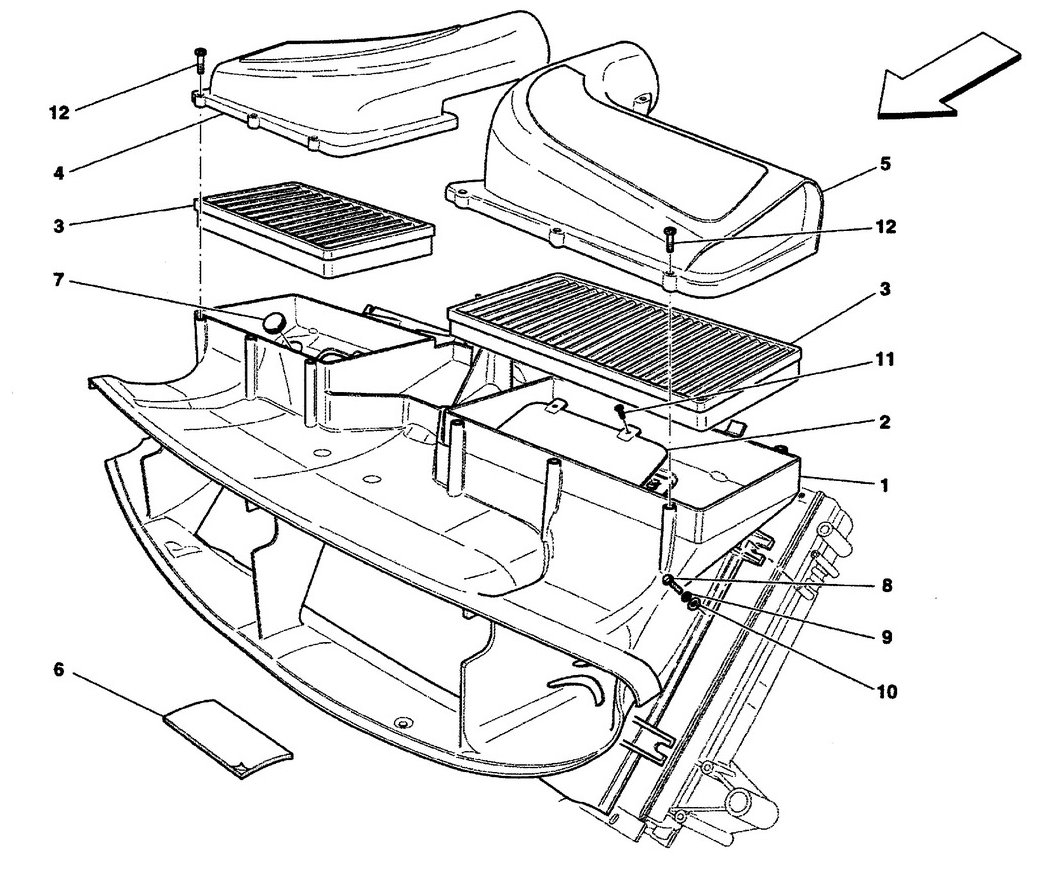

AIR FILTER, AIR INTAKE AND DUCTS

Go to Split View

AIR FILTER, AIR INTAKE AND DUCTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 239977 *Qty: 1 AIR CONVEYOR $7.00
Location: 2 Prev | Next Part: 242586 *Qty: 1 R.H. INSPECTION COVER $1,120.25
Location: 2 Prev | Next Part: 242585 *Qty: 1 LH. INSPECTION COVER $7.00
Location: 3 Prev | Next Part: 235577 *Qty: 2 AIR FILTER $92.00
Location: 3 Prev | Next Part: 246868 *Qty: 1 R.H. GRILL -Valid for USA and CDN- $124.62
Location: 3 Prev | Next Part: 246867 *Qty: 1 L.H. GRILL -Valid for USA and CDN- $124.62
Location: 3 Prev | Next Part: 249164 *Qty: 2 AIR FILER -Valid for USA and CDN- $289.50
Location: 4 Prev | Next Part: 239975 *Qty: 1 R.H. UPPER COVER -Standard- Call
Location: 4 Prev | Next Part: 255240 *Qty: 1 R.H. UPPER COVER -Carbon- Call
Location: 5 Prev | Next Part: 239974 *Qty: 1 L.H. UPPER COVER -Standard- Call
Location: 5 Prev | Next Part: 255238 *Qty: 1 L.H. UPPER COVER -Carbon- Call
Location: 6 Prev | Next Part: 249582 *Qty: 1 PAD $4.52
Location: 7 Prev | Next Part: 14508187 *Qty: 1 PLUG $10.49
Location: 8 Prev | Next Part: 16285127 *Qty: 8 SCREW $0.90
Location: 8 Prev | Next Part: 15699804 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 12638178 *Qty: 10 WASHER $0.90
Location: 10 Prev | Next Part: 166467 *Qty: 8 WASHER $1.04
Location: 11 Prev | Next Part: 249161 *Qty: 8 M5 SCREW $3.61
Location: 12 Prev | Next Part: 249159 *Qty: 12 M6x30 SELF TAPPING SCREW $3.61

* Quantity shown indicates the number of pieces used in the diagram.
