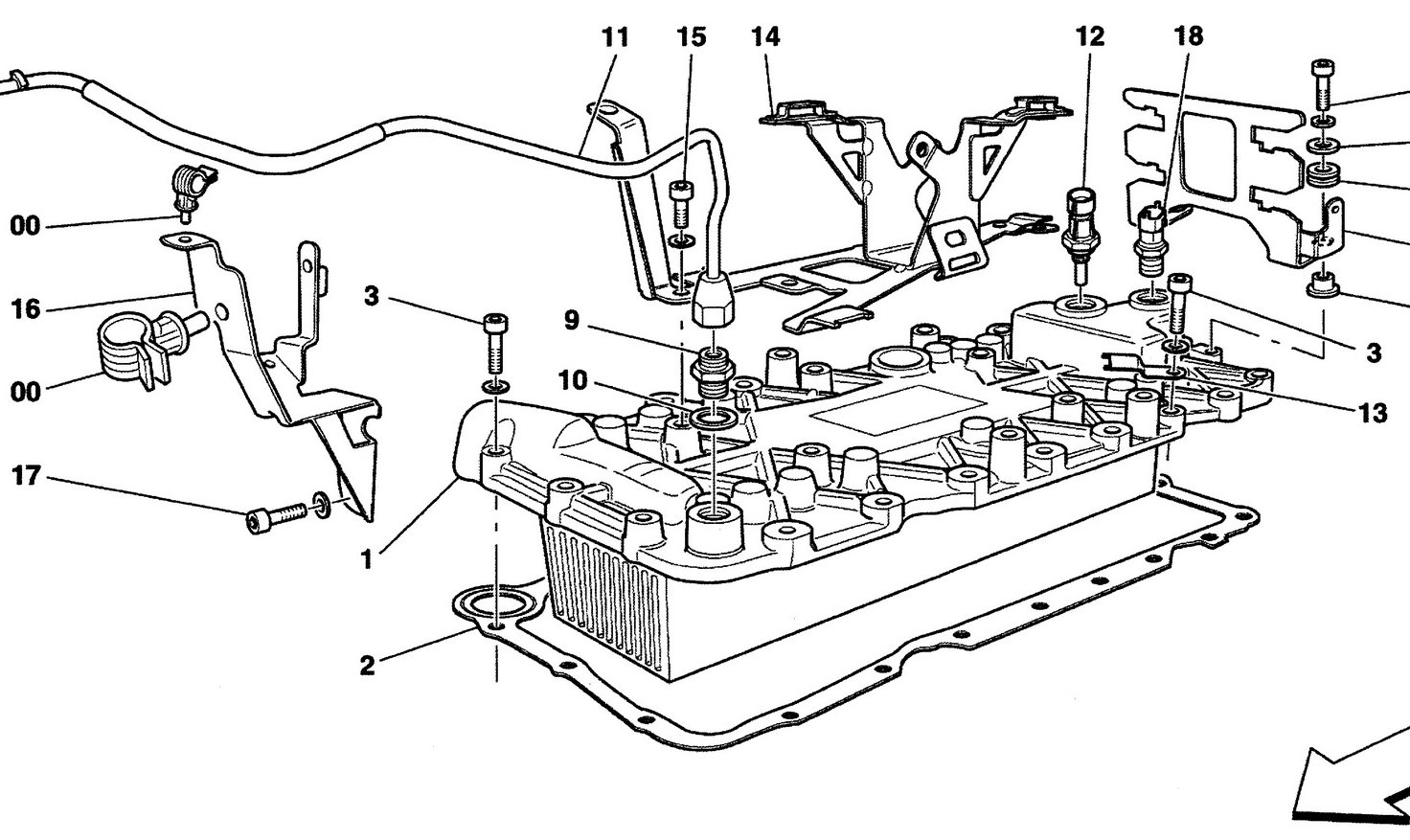

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 239137 *Qty: 1 HEAT EXCHANGER $1,051.78
Location: 2 Prev | Next Part: 238689 *Qty: 1 GASKET $25.77
Location: 3 Prev | Next Part: 231620 *Qty: 18 SCREW $0.90
Location: 4 Prev | Next Part: 251249 *Qty: 1 BRACKET $52.23
Location: 5 Prev | Next Part: 149707 *Qty: 2 SPACER $1.23
Location: 6 Prev | Next Part: 177576 *Qty: 2 CABLE GROMMET $2.38
Location: 7 Prev | Next Part: 12643724 *Qty: 2 WASHER Superseded
Location: 8 Prev | Next Part: 231616 *Qty: 3 SCREW $0.90
Location: 9 Prev | Next Part: 192327 *Qty: 1 UNION $4.40
Location: 10 Prev | Next Part: 10284460 *Qty: 1 GASKET $0.90
Location: 11 Prev | Next Part: 247944 *Qty: 1 WATER VENT PIPE $87.22
Location: 12 Prev | Next Part: 201672 *Qty: 1 OIL PRESSURE TRANSMITTER $5.85
Location: 13 Prev | Next Part: 251595 *Qty: 1 CABLES SUPPORT BRACKET $9.52
Location: 14 Prev | Next Part: 248044 *Qty: 1 BRACKET $197.76
Location: 15 Prev | Next Part: 231620 *Qty: 2 SCREW $0.90
Location: 16 Prev | Next Part: 251472 *Qty: 1 SECONDARY AIR BRACKET $81.86
Location: 17 Prev | Next Part: 231616 *Qty: 1 SCREW $0.90
Location: 18 Prev | Next Part: 180137 *Qty: 2 OIL TEMPERATURE SENSOR $26.68

* Quantity shown indicates the number of pieces used in the diagram.
