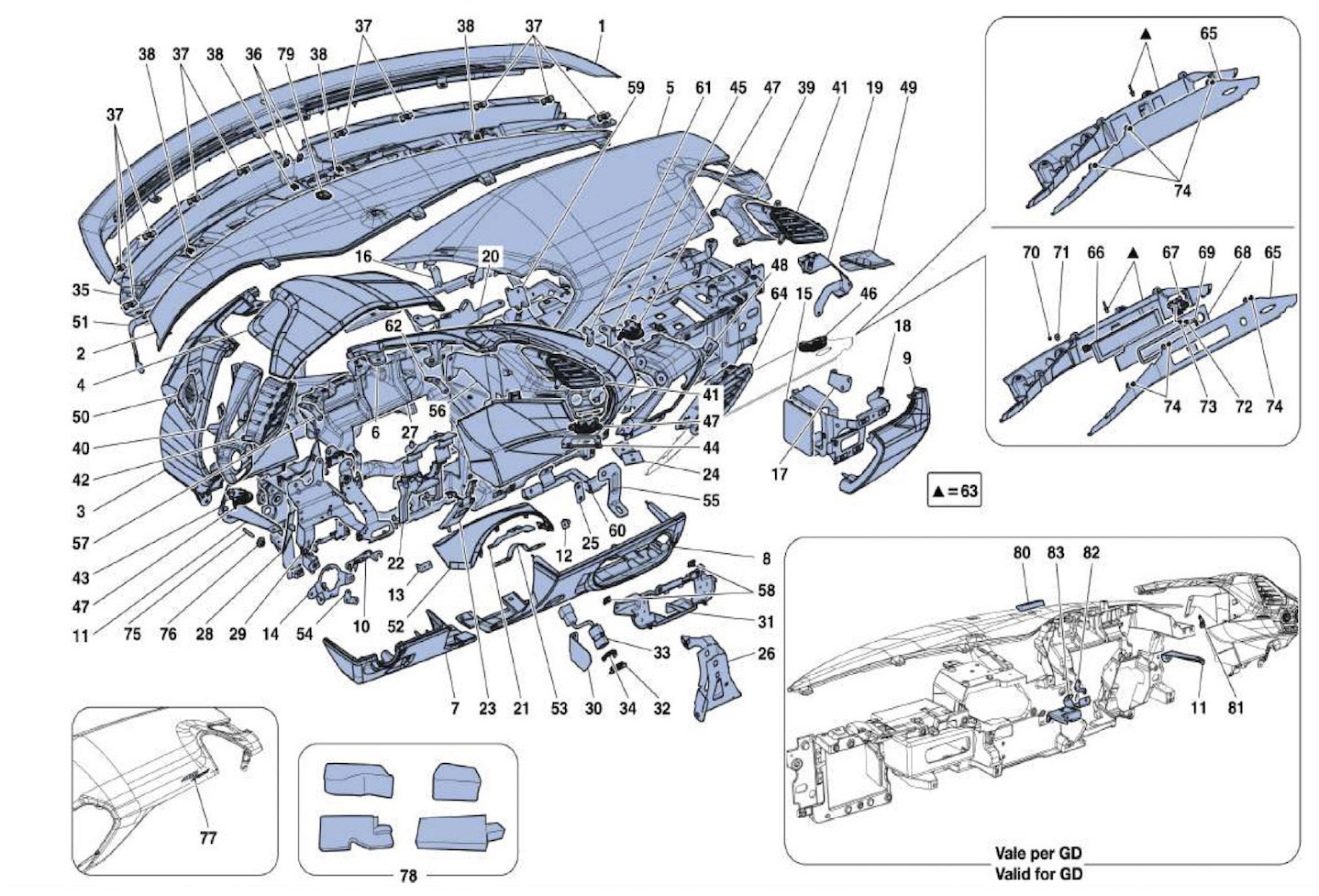

DASHBOARD

Go to Split View

DASHBOARD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 87409300 *Qty: 1 DEFROSTER SURROUND COMPLETE LHD-NOT FOR GD- Unavailable
Location: 1 Prev | Next Part: 87420400 *Qty: 1 DEFROSTER CONTROL SURROUND COMPLETE RHD-APPLICABLE FOR GD- Unavailable
Location: 2 Prev | Next Part: 87409000 *Qty: 1 UPPER GRILLE COMPLETE LHD-NOT FOR J, GD- $431.20
Location: 2 Prev | Next Part: 87036600 *Qty: 1 UPPER GRILLE COMPLETE RHD-APPLICABLE FOR GD- $464.64
Location: 2 Prev | Next Part: 87475800 *Qty: 1 UPPER GRILLE COMPLETE LHD-GS VERSION- -APPLICABLE FOR J- $534.16
Location: 2 Prev | Next Part: 87481800 *Qty: 1 UPPER GRILLE COMPLETE RHD-GD VERSION- -APPLICABLE FOR J- $534.16
Location: 3 Prev | Next Part: 87411900 *Qty: 1 DRIVER SIDE LH UPPER TRIM LHD-INTP- -LEATHER- -VERSION WITH LIFTER- -STC1- -STC2- -NOT FOR GD- - INTP - LEATHER - VERSION WITH LIFTER - STC1 - STC2 - NOT FOR GD Unavailable
Location: 3 Prev | Next Part: 87412400 *Qty: 1 DRIVER SIDE LH UPPER TRIM LHD-INTP- -LEATHER- -STC1- -STC2- -NOT FOR GD- - INTP - LEATHER - STC1 - STC2 - NOT FOR GD Unavailable
Location: 3 Prev | Next Part: 87438700 *Qty: 1 DRIVER SIDE LH UPPER TRIM RHD-INTP- -LEATHER- -VERSION WITH LIFTER- -STC1- -STC2- -APPLICABLE FOR GD- - INTP - LEATHER - VERSION WITH LIFTER - STC1 - STC2 - APPLICABLE FOR GD Unavailable
Location: 4 Prev | Next Part: 86167600 *Qty: 1 BINNACLE COMPLETE-INTP- -LEATHER- - INTP - LEATHER Unavailable
Location: 5 Prev | Next Part: 86166600 *Qty: 1 AIRBAG COVER TRIM COMPLETE LHD-INTP- -LEATHER- -NOT FOR GD- - INTP - LEATHER Unavailable
Location: 5 Prev | Next Part: 87731800 *Qty: 1 AIRBAG COVER TRIM COMPLETE RHD-INTP- -LEATHER- -APPLICABLE FOR GD- - INTP - LEATHER - APPLICABLE FOR GD Unavailable
Location: 6 Prev | Next Part: 87412800 *Qty: 1 DRIVER SIDE RH UPPER TRIM LHD-INTP- -LEATHER- -NOT FOR VERSION WITH FRONT AND REAR DIGITAL CAMERAS- -STC1- -STC2- -NOT FOR GD- Unavailable
Location: 6 Prev | Next Part: 87733600 *Qty: 1 DRIVER SIDE RH UPPER TRIM RHD-INTP- -LEATHER- -NOT FOR VERSION WITH FRONT AND REAR DIGITAL CAMERAS- -STC1- -STC2- -APPLICABLE FOR GD- - INTP - LEATHER - STC1 - STC2 - APPLICABLE FOR GD Unavailable
Location: 6 Prev | Next Part: 87413600 *Qty: 1 DRIVER SIDE RH UPPER TRIM LHD-INTP- -LEATHER- -VERSION WITH FRONT AND REAR DIGITAL CAMERAS- -STC1- -STC2- -NOT FOR GD- - INTP - LEATHER - VERSION WITH FRONT AND REAR DIGITAL CAMERAS - STC1 - STC2 - NOT FOR GD Unavailable
Location: 6 Prev | Next Part: 87734100 *Qty: 1 DRIVER SIDE RH UPPER TRIM RHD-INTP- -LEATHER- -VERSION WITH FRONT AND REAR DIGITAL CAMERAS- -STC1- -STC2- -APPLICABLE FOR GD- - INTP - LEATHER - VERSION WITH FRONT AND REAR DIGITAL CAMERAS - STC1 - STC2 - APPLICABLE FOR GD Unavailable
Location: 7 Prev | Next Part: 86183000 *Qty: 1 LH LOWER LATERAL TRIM LHD-INTP- -LEATHER- -APPLICABLE FOR MECHANICAL STEERING COLUMN- -STC1- -STC2- -NOT FOR GD- - INTP - LEATHER - APPLICABLE FOR MECHANICAL STEERING COLUMN - STC1 - STC2 - NOT FOR GD Unavailable
Location: 7 Prev | Next Part: 86834200 *Qty: 1 LH LOWER LATERAL TRIM LHD-INTP- -LEATHER- -APPLICABLE FOR ELECTRIC STEERING COLUMN- -STC1- -STC2- -NOT FOR GD- - INTP - LEATHER - APPLICABLE FOR ELECTRIC STEERING COLUMN - STC1 - STC2 - NOT FOR GD Unavailable
Location: 7 Prev | Next Part: 87039000 *Qty: 1 RH LOWER LATERAL TRIM RHD-INTP- -LEATHER- -APPLICABLE FOR ELECTRIC STEERING COLUMN- -STC1- -STC2- -APPLICABLE FOR GD- Unavailable
Location: 7 Prev | Next Part: 87040300 *Qty: 1 RH LOWER LATERAL TRIM RHD-INTP- -LEATHER- -APPLICABLE FOR MECHANICAL STEERING COLUMN- -STC1- -STC2- -APPLICABLE FOR GD- Unavailable
Location: 7 Prev | Next Part: 88266900 *Qty: 1 LH LOWER LATERAL TRIM LHD-INTA- -ALCANTARA- -APPLICABLE FOR ELECTRIC STEERING COLUMN- -STC1- -STC2- -NOT FOR GD- Unavailable
Location: 7 Prev | Next Part: 88291200 *Qty: 1 LH LOWER LATERAL TRIM LHD-INTA- -ALCANTARA- -APPLICABLE FOR MECHANICAL STEERING COLUMN- -STC1- -STC2- -NOT FOR GD- Unavailable
Location: 7 Prev | Next Part: 88325700 *Qty: 1 RH LOWER LATERAL TRIM RHD-INTA- -ALCANTARA- -APPLICABLE FOR ELECTRIC STEERING COLUMN- -STC1- -STC2- -APPLICABLE FOR GD- Unavailable
Location: 7 Prev | Next Part: 88332500 *Qty: 1 RH LOWER LATERAL TRIM RHD-INTA- -ALCANTARA- -APPLICABLE FOR MECHANICAL STEERING COLUMN- -STC1- -STC2- -APPLICABLE FOR GD- Unavailable
Location: 8 Prev | Next Part: 87189300 *Qty: 1 AIR CON CONTROL PANEL TRIM COMPLETE LHD-INTP- -LEATHER- -VERSION FOR ELECTRIC STEERING COLUMN- -STC1- -STC2- -NOT FOR GD- - INTP - LEATHER - VERSION FOR MECHANICAL STEERING COLUMN - STC1 - STC2 Unavailable
Location: 8 Prev | Next Part: 87189400 *Qty: 1 AIR CON CONTROL PANEL TRIM COMPLETE LHD-INTP- -LEATHER- -VERSION FOR MECHANICAL STEERING COLUMN- -STC1- -STC2- -NOT FOR GD- - INTP - LEATHER - VERSION FOR MECHANICAL STEERING COLUMN - STC1 - STC2 - NOT FOR GD Unavailable
Location: 8 Prev | Next Part: 87202600 *Qty: 1 AIR CON CONTROL PANEL TRIM COMPLETE RHD-INTP- -LEATHER- -VERSION FOR ELECTRIC STEERING COLUMN- -STC1- -STC2- -APPLICABLE FOR GD- - INTP - LEATHER - VERSION FOR ELECTRIC STEERING COLUMN - STC1 - STC2 - APPLICABLE FOR GD Unavailable
Location: 8 Prev | Next Part: 87202700 *Qty: 1 AIR CON CONTROL PANEL TRIM COMPLETE RHD-INTP- -LEATHER- -VERSION FOR MECHANICAL STEERING COLUMN- -STC1- -STC2- -APPLICABLE FOR GD- - INTP - LEATHER - VERSION FOR MECHANICAL STEERING COLUMN - STC1 - STC2 - APPLICABLE FOR GD Unavailable
Location: 8 Prev | Next Part: 88265200 *Qty: 1 AIR CON CONTROL PANEL TRIM COMPLETE LHD-INTA- -ALCANTARA- -VERSION FOR MECHANICAL STEERING COLUMN- -STC1- -STC2- -NOT FOR GD- Unavailable
Location: 8 Prev | Next Part: 88290300 *Qty: 1 AIR CON CONTROL PANEL TRIM COMPLETE LHD-INTA- -ALCANTARA- -VERSION FOR ELECTRIC STEERING COLUMN- -STC1- -STC2- -NOT FOR GD- Unavailable
Location: 8 Prev | Next Part: 88324700 *Qty: 1 AIR CON CONTROL PANEL TRIM COMPLETE RHD-INTA- -ALCANTARA- -VERSION FOR ELECTRIC STEERING COLUMN- -STC1- -STC2- -APPLICABLE FOR GD- Unavailable
Location: 8 Prev | Next Part: 88325100 *Qty: 1 AIR CON CONTROL PANEL TRIM COMPLETE RHD-INTA- -ALCANTARA- -VERSION FOR MECHANICAL STEERING COLUMN- -STC1- -STC2- -APPLICABLE FOR GD- Unavailable
Location: 9 Prev | Next Part: 87740000 *Qty: 1 RH LATERAL LOWER TRIM LHD-INTP- -LEATHER- -STC1- -STC2- -NOT FOR GD- - INTP - LEATHER - STC1 - STC2 - NOT FOR GD Unavailable
Location: 9 Prev | Next Part: 87739900 *Qty: 1 LH LATERAL LOWER TRIM RHD-INTP- -LEATHER- -STC1- -STC2- -APPLICABLE FOR GD- - INTP - LEATHER - STC1 - STC2 - APPLICABLE FOR GD Unavailable
Location: 9 Prev | Next Part: 88267000 *Qty: 1 RH LATERAL LOWER TRIM LHD-INTA- -ALCANTARA- -STC1- -STC2- -NOT FOR GD- Unavailable
Location: 9 Prev | Next Part: 88325400 *Qty: 1 LH LATERAL LOWER TRIM RHD-INTA- -ALCANTARA- -STC1- -STC2- -APPLICABLE FOR GD- Unavailable
Location: 10 Prev | Next Part: 83739700 *Qty: 1 BUTTON FASTENER BRACKET $16.53
Location: 11 Prev | Next Part: 87541900 *Qty: 1 CONNECTOR BRACKET-NOT FOR GD- $36.08
Location: 12 Prev | Next Part: 87224100 *Qty: 1 RH UPPER TRIM FASTENER BRACKET $9.33
Location: 13 Prev | Next Part: 87224200 *Qty: 1 LH UPPER TRIM FASTENER BRACKET $7.04
Location: 14 Prev | Next Part: 86181600 *Qty: 1 LIGHTS CONTROL BRACKET LHD-NOT FOR GD- $24.02
Location: 14 Prev | Next Part: 87165200 *Qty: 1 LIGHTS CONTROL BRACKET RHD-APPLICABLE FOR GD- $44.88
Location: 15 Prev | Next Part: 86185400 *Qty: 1 MULTIRELAY HATCH $27.97
Location: 16 Prev | Next Part: 86180600 *Qty: 1 DASHBOARD CROSS MEMBER LHD-NOT FOR USA, CDN, GD, USA LIGHT- $2,446.41
Location: 16 Prev | Next Part: 87016400 *Qty: 1 DASHBOARD CROSS MEMBER RHD-APPLICABLE FOR GD- $3,019.30
Location: 16 Prev | Next Part: 87475100 *Qty: 1 DASHBOARD CROSS MEMBER-APPLICABLE FOR USA, CDN, USA LIGHT- $2,534.41
Location: 17 Prev | Next Part: 87115700 *Qty: 1 MULTIRELAY CONNECTING BRACKET LHD-NOT FOR USA, CDN, GD, USA LIGHT- $18.48
Location: 17 Prev | Next Part: 87115900 *Qty: 1 MULTIRELAY CONNECTING BRACKET RHD-APPLICABLE FOR GD- $18.48
Location: 18 Prev | Next Part: 86174100 *Qty: 1 MULTIRELAY FASTENER BRACKET LHD-NOT FOR GD- $210.32
Location: 18 Prev | Next Part: 87036200 *Qty: 1 MULTIRELAY MOUNTING BRACKET RHD-APPLICABLE FOR GD- Unavailable
Location: 19 Prev | Next Part: 87269900 *Qty: 1 RH SIDE LOWER SUBSTRUCTURE EXTENSION BRACKET-NOT FOR GD- $65.12
Location: 19 Prev | Next Part: 87037100 *Qty: 1 LH SIDE LOWER SUBSTRUCTURE EXTENSION BRACKET-APPLICABLE FOR GD- $82.72
Location: 20 Prev | Next Part: 86834800 *Qty: 1 CENTRAL LOWER SUBSTRUCTURE REINFORCEMENT BRACKET LHD-NOT FOR GD- $51.04
Location: 20 Prev | Next Part: 87401300 *Qty: 1 CENTRAL LOWER SUBSTRUCTURE REINFORCEMENT BRACKET RHD-APPLICABLE FOR GD- $70.40
Location: 21 Prev | Next Part: 86431700 *Qty: 1 UPPER STEERING COLUMN TRIM BRACKET-APPLICABLE FOR ELECTRIC STEERING COLUMN- $12.08
Location: 22 Prev | Next Part: 86749100 *Qty: 1 LOWER BRACKET FOR STEERING COLUMN TRIM-APPLICABLE FOR MECHANICAL STEERING COLUMN- $59.84
Location: 23 Prev | Next Part: 86592000 *Qty: 1 LOWER BRACKET FOR STEERING COLUMN TRIM-APPLICABLE FOR ELECTRIC STEERING COLUMN- $47.66
Location: 24 Prev | Next Part: 86176600 *Qty: 1 TELEMETRY SYSTEM SPLITTER MOUNTING BRACKET LHD-VERSION WITH TELEMETRY- -NOT FOR GD- $36.96
Location: 24 Prev | Next Part: 87036800 *Qty: 1 TELEMETRY SYSTEM SPLITTER MOUNTING BRACKET RHD-VERSION WITH TELEMETRY- -APPLICABLE FOR GD- $36.96
Location: 25 Prev | Next Part: 85441400 *Qty: 1 PLATE $6.27
Location: 26 Prev | Next Part: 86168500 *Qty: 1 SUPPORT FASTENER BRACKET LHD-NOT FOR GD- $94.16
Location: 26 Prev | Next Part: 87022600 *Qty: 1 SUPPORT FASTENER BRACKET RHD-APPLICABLE FOR GD- $94.16
Location: 27 Prev | Next Part: 86168100 *Qty: 1 LOWER DASHBOARD COMPLETE LHD-NOT FOR GD- $1,525.93
Location: 27 Prev | Next Part: 87039600 *Qty: 1 LOWER DASHBOARD COMPLETE RHD-APPLICABLE FOR GD- $1,525.93
Location: 28 Prev | Next Part: 82512900 *Qty: 1 BODY COMPUTER BRACKET COMPLETE LHD-NOT FOR USA, CDN, GD, USA LIGHT- $94.30
Location: 28 Prev | Next Part: 82785500 *Qty: 1 BODY COMPUTER BRACKET COMPLETE RHD-APPLICABLE FOR GD- $154.41
Location: 28 Prev | Next Part: 87274700 *Qty: 1 BODY COMPUTER BRACKET COMPLETE-APPLICABLE FOR USA, CDN, USA LIGHT- $133.76
Location: 29 Prev | Next Part: 87541800 *Qty: 1 LIGHT CONTROL TRIM MOUNTING BRACKET LHD-NOT FOR GD- $167.91
Location: 29 Prev | Next Part: 87542000 *Qty: 1 LIGHT CONTROL TRIM MOUNTING BRACKET RHD-APPLICABLE FOR GD- $167.91
Location: 30 Prev | Next Part: 86939600 *Qty: 1 TEMPERATURE SENSOR SHIELD BRACKET-NOT FOR GD- $21.12
Location: 31 Prev | Next Part: 86167300 *Qty: 1 AIR CON PANEL FASTENER BACKPLATE LHD-NOT FOR GD- $11.44
Location: 31 Prev | Next Part: 87026200 *Qty: 1 AIR CON PANEL FASTENER BACKPLATE RHD-APPLICABLE FOR GD- $11.44
Location: 32 Prev | Next Part: 808863.. *Qty: 1 TEMPERATURE SENSOR COVER GRILLE-LEATHER- Unavailable
Location: 33 Prev | Next Part: 236847 *Qty: 1 TEMPERATURE SENSOR $86.04
Location: 34 Prev | Next Part: 80964300 *Qty: 1 TEMPERATURE SENSOR BRACKET $7.08
Location: 35 Prev | Next Part: 87408800 *Qty: 1 FRONT DASHBOARD SUBSTRUCTURE LHD-NOT FOR GD- $1,276.01
Location: 35 Prev | Next Part: 87030000 *Qty: 1 FRONT DASHBOARD SUBSTRUCTURE RHD-APPLICABLE FOR GD- $1,276.01
Location: 36 Prev | Next Part: 14368371 *Qty: 2 SCREW CLIP-NO LONGER SUPPLIED- -REPLACED BY 14188971- Unavailable
Location: 36 Prev | Next Part: 14188971 *Qty: 2 SCREW CLIP $5.33
Location: 37 Prev | Next Part: 68700200 *Qty: 10 FIXING CLIP Unavailable
Location: 38 Prev | Next Part: 67278400 *Qty: 4 BRACKET $12.70
Location: 39 Prev | Next Part: 87034300 *Qty: 1 PASSENGER SIDE SATELLITE CASTING RHD-APPLICABLE FOR GD- $322.79
Location: 39 Prev | Next Part: 87172100 *Qty: 1 PASSENGER SIDE SATELLITE CASTING LHD-CARBON VERSION- -NOT FOR GD- $952.17
Location: 39 Prev | Next Part: 87207900 *Qty: 1 PASSENGER SIDE SATELLITE CASTING RHD-CARBON VERSION- -APPLICABLE FOR GD- $952.17
Location: 39 Prev | Next Part: 87262500 *Qty: 1 PASSENGER SIDE SATELLITE CASTING LHD-BURNISHED GREY- -NOT FOR GD- Unavailable
Location: 40 Prev | Next Part: 87173100 *Qty: 1 LH DRIVER SIDE SATELLITE CASTING-CARBON VERSION- $1,613.93
Location: 40 Prev | Next Part: 87262200 *Qty: 1 LH DRIVER SIDE SATELLITE CASTING-BURNISHED GREY- $409.20
Location: 41 Prev | Next Part: 86172000 *Qty: 2 RH VENT BODY-RH SIDE, PASSENGER- -RH SIDE, DRIVER- -NOT FOR GD- $178.64
Location: 41 Prev | Next Part: 86172000 *Qty: 1 RH VENT BODY-RH SIDE, DRIVER- -APPLICABLE FOR GD- $178.64
Location: 42 Prev | Next Part: 86170200 *Qty: 1 LH VENT BODY-LH SIDE, DRIVER- -NOT FOR GD- $178.64
Location: 42 Prev | Next Part: 86170200 *Qty: 2 LH VENT BODY-LH SIDE, PASSENGER- -LH SIDE, DRIVER- -APPLICABLE FOR GD- $178.64
Location: 43 Prev | Next Part: 86176800 *Qty: 1 LH DRIVER SIDE VENT CONTROL MOUNTING BRACKET $21.12
Location: 44 Prev | Next Part: 86572800 *Qty: 1 RH DRIVER SIDE VENT CONTROL MOUNTING BRACKET $21.12
Location: 45 Prev | Next Part: 86835000 *Qty: 1 FASCIA REINFORCEMENT BRACKET ON LH PASSENGER SIDE SATELLITE-NOT FOR GD- $36.96
Location: 45 Prev | Next Part: 87022500 *Qty: 1 BAND REINFORCEMENT BRACKET ON LH PASSENGER SATELLITE-APPLICABLE FOR GD- $36.96
Location: 46 Prev | Next Part: 286443 *Qty: 1 CENTRE AIR VENT CONTROL $134.73
Location: 47 Prev | Next Part: 82893600 *Qty: 3 LOWER CENTRAL AIR VENT CONTROL $134.73
Location: 48 Prev | Next Part: 87174300 *Qty: 1 LH PASSENGER SIDE SATELLITE CASTING LHD-CARBON VERSION- -NOT FOR GD- $1,081.53
Location: 48 Prev | Next Part: 87206600 *Qty: 1 LH PASSENGER SATELLITE CASTING RHD-CARBON VERSION- -APPLICABLE FOR GD- $1,081.53
Location: 48 Prev | Next Part: 87262400 *Qty: 1 LH PASSENGER SIDE SATELLITE CASTING LHD-BURNISHED GREY- -NOT FOR GD- Unavailable
Location: 48 Prev | Next Part: 87022900 *Qty: 1 LH PASSENGER SATELLITE CASTING RHD-BURNISHED GREY- -APPLICABLE FOR GD- $445.28
Location: 49 Prev | Next Part: 87224000 *Qty: 1 RH DEMISTER SURROUND LHD-INTP- -LEATHER- -NOT FOR GD- - INTP - LEATHER - NOT FOR GD Unavailable
Location: 49 Prev | Next Part: 87732300 *Qty: 1 RH DEMISTER SURROUND RHD-INTP- -LEATHER- -APPLICABLE FOR GD- - INTP - LEATHER - APPLICABLE FOR GD Unavailable
Location: 50 Prev | Next Part: 87223900 *Qty: 1 LH DEMISTER SURROUND LHD-INTP- -LEATHER- -NOT FOR GD- Unavailable
Location: 50 Prev | Next Part: 87732200 *Qty: 1 LH DEMISTER SURROUND RHD-INTP- -LEATHER- -APPLICABLE FOR GD- - INTP - LEATHER - APPLICABLE FOR GD Unavailable
Location: 51 Prev | Next Part: 87260100 *Qty: 1 LH LOWER SUBSTRUCTURE FASTEN-NOT FOR GD- $30.80
Location: 51 Prev | Next Part: 87035800 *Qty: 1 RH LOWER SUBSTRUCTURE FASTENER BRACKET-APPLICABLE FOR GD- $54.65
Location: 52 Prev | Next Part: 86167200 *Qty: 1 SUN VISOR COMPLETE-INTP- -LEATHER- - INTP - LEATHER Unavailable
Location: 53 Prev | Next Part: 86431600 *Qty: 1 BRACKET ON LOWER STEERING COLUMN $14.36
Location: 54 Prev | Next Part: 87224400 *Qty: 1 LH UPPER TRIM CASTING FASTENER BRACKET LHD-NOT FOR GD- $21.12
Location: 54 Prev | Next Part: 87372000 *Qty: 1 LH UPPER TRIM CASTING FASTENER BRACKET RHD-APPLICABLE FOR GD- $21.12
Location: 55 Prev | Next Part: 81528800 *Qty: 1 BRACKET $10.42
Location: 56 Prev | Next Part: 87174100 *Qty: 1 RH DRIVER SIDE SATELLITE CASTING-CARBON VERSION- $1,613.93
Location: 56 Prev | Next Part: 87262300 *Qty: 1 RH DRIVER SIDE SATELLITE CASTING-BURNISHED GREY- $409.20
Location: 57 Prev | Next Part: 87225900 *Qty: 1 UPPER BRACKET FASTENING CASTING TO LH UPPER TRIM-NOT FOR GD- $20.33
Location: 58 Prev | Next Part: 67278400 *Qty: 2 BRACKET $12.70
Location: 59 Prev | Next Part: 86174800 *Qty: 1 LH SUBSTRUCTURE TRIM PANEL FASTENER BRACKET LHD-NOT FOR GD- $22.88
Location: 59 Prev | Next Part: 87022700 *Qty: 1 LH SUBSTRUCTURE TRIM PANEL FASTENER BRACKET RHD-APPLICABLE FOR GD- $22.88
Location: 60 Prev | Next Part: 87413000 *Qty: 1 RH UPPER TRIM MOUNTING BRACKET LHD-NOT FOR GD- $62.48
Location: 60 Prev | Next Part: 86859900 *Qty: 1 LH UPPER TRIM PANEL SUPPORT BRACKET RHD-APPLICABLE FOR GD- $62.48
Location: 61 Prev | Next Part: 86701900 *Qty: 1 RH UPPER TRIM FASTENER BRACKET-NOT FOR GD- $24.14
Location: 62 Prev | Next Part: 86787600 *Qty: 1 UPPER CASTING FASTENER BRACKET $20.33
Location: 63 Prev | Next Part: 86173500 *Qty: 1 OVER GLOVE COMPARTMENT SURROUND COMPLETE LHD-NOT FOR GD- $70.40
Location: 63 Prev | Next Part: 87031900 *Qty: 1 TRIM PANEL OVER GLOVE COMPARTMENT RHD-APPLICABLE FOR GD- $84.48
Location: 63 Prev | Next Part: 87081100 *Qty: 1 TRIM PANEL OVER GLOVE COMPARTMENT LHD-VERSION WITH PASSENGER DISPLAY- -NOT FOR GD- $84.48
Location: 63 Prev | Next Part: 87098000 *Qty: 1 OVER GLOVE COMPARTMENT SURROUND COMPLETE RHD-VERSION WITH PASSENGER DISPLAY- -APPLICABLE FOR GD- $84.48
Location: 64 Prev | Next Part: 86172100 *Qty: 1 LH PASSENGER SIDE VENT BODY LHD-NOT FOR GD- $121.44
Location: 64 Prev | Next Part: 87023100 *Qty: 1 LH PASSENGER VENT BODY RHD-APPLICABLE FOR GD- $121.44
Location: 65 Prev | Next Part: 86173700 *Qty: 1 TRIM PANEL OVER GLOVE COMPARTMENT-PIANO BLACK- -NOT FOR GD- $333.52
Location: 65 Prev | Next Part: 87032200 *Qty: 1 TRIM PANEL OVER GLOVE COMPARTMENT-PIANO BLACK- -APPLICABLE FOR GD- $344.96
Location: 65 Prev | Next Part: 87081300 *Qty: 1 TRIM PANEL OVER GLOVE COMPARTMENT-PIANO BLACK- -VERSION WITH PASSENGER DISPLAY- -NOT FOR GD- $366.08
Location: 65 Prev | Next Part: 87098300 *Qty: 1 OVER GLOVE COMPARTMENT SURROUND-PIANO BLACK- -VERSION WITH PASSENGER DISPLAY- -APPLICABLE FOR GD- $442.64
Location: 65 Prev | Next Part: 87172800 *Qty: 1 TRIM PANEL OVER GLOVE COMPARTMENT-CARBON VERSION- -NOT FOR GD- $737.44
Location: 65 Prev | Next Part: 87203200 *Qty: 1 OVER GLOVE COMPARTMENT SURROUND-CARBON VERSION- -APPLICABLE FOR GD- $737.44
Location: 65 Prev | Next Part: 87172500 *Qty: 1 TRIM PANEL OVER GLOVE COMPARTMENT-CARBON VERSION- -VERSION WITH PASSENGER DISPLAY- -NOT FOR GD- $763.84
Location: 65 Prev | Next Part: 87203700 *Qty: 1 OVER GLOVE COMPARTMENT SURROUND-CARBON VERSION- -VERSION WITH PASSENGER DISPLAY- -APPLICABLE FOR GD- $763.84
Location: 66 Prev | Next Part: 286844 *Qty: 1 PASSENGER DISPLAY-VERSION WITH PASSENGER DISPLAY- Unavailable
Location: 67 Prev | Next Part: 276974 *Qty: 1 DISPLAY BUTTON-VERSION WITH PASSENGER DISPLAY- Superseded
Location: 68 Prev | Next Part: 317342 *Qty: 1 WINDOW-VERSION WITH PASSENGER DISPLAY- -NOT FOR GD- $96.08
Location: 68 Prev | Next Part: 87455400 *Qty: 1 GLASS-VERSION WITH PASSENGER DISPLAY- -APPLICABLE FOR GD- $102.70
Location: 69 Prev | Next Part: 87108100 *Qty: 1 DISPLAY SEAL-VERSION WITH PASSENGER DISPLAY- -NO LONGER SUPPLIED- Unavailable
Location: 70 Prev | Next Part: 16101777 *Qty: 3 NUT-VERSION WITH PASSENGER DISPLAY- Unavailable
Location: 71 Prev | Next Part: 12642801 *Qty: 3 WASHER-VERSION WITH PASSENGER DISPLAY- Unavailable
Location: 72 Prev | Next Part: 15641275 *Qty: 2 SCREW-VERSION WITH PASSENGER DISPLAY- $1.17
Location: 73 Prev | Next Part: 14496101 *Qty: 2 WASHER-VERSION WITH PASSENGER DISPLAY- Unavailable
Location: 74 Prev | Next Part: 301703 *Qty: 3 SCREW Unavailable
Location: 75 Prev | Next Part: 13541334 *Qty: 1 STUD Unavailable
Location: 76 Prev | Next Part: 14039614 *Qty: 1 FLANGE NUT Unavailable
Location: 77 Prev | Next Part: 87793300 *Qty: 1 DASHBOARD SPIDER BADGE $102.08
Location: 78 Prev | Next Part: 87542100 *Qty: 1 LIGHT CONTROL TRIM CONNECTOR MOUNTING BRACKET-APPLICABLE FOR GD- - APPLICABLE FOR GD $37.50
Location: 79 Prev | Next Part: 82912600 *Qty: 1 PULER UNDER STRUCTURE 400X170X60-400 X 170 X 60- -APPLICABLE FOR GD- $77.79
Location: 79 Prev | Next Part: 82913000 *Qty: 1 INNER DASH PULER 230X120X60-230 X 120 X 60- -APPLICABLE FOR GD- $23.40
Location: 79 Prev | Next Part: 82913100 *Qty: 1 INNER DASH PULER 160X120X60-160 X 120 X 60- -APPLICABLE FOR GD- $18.19
Location: 79 Prev | Next Part: 82967100 *Qty: 1 PULER UNDER STRUCTURE 360X120X60-360 X 120 X 60- -APPLICABLE FOR GD- $31.13

* Quantity shown indicates the number of pieces used in the diagram.
